STAR MINI
05110

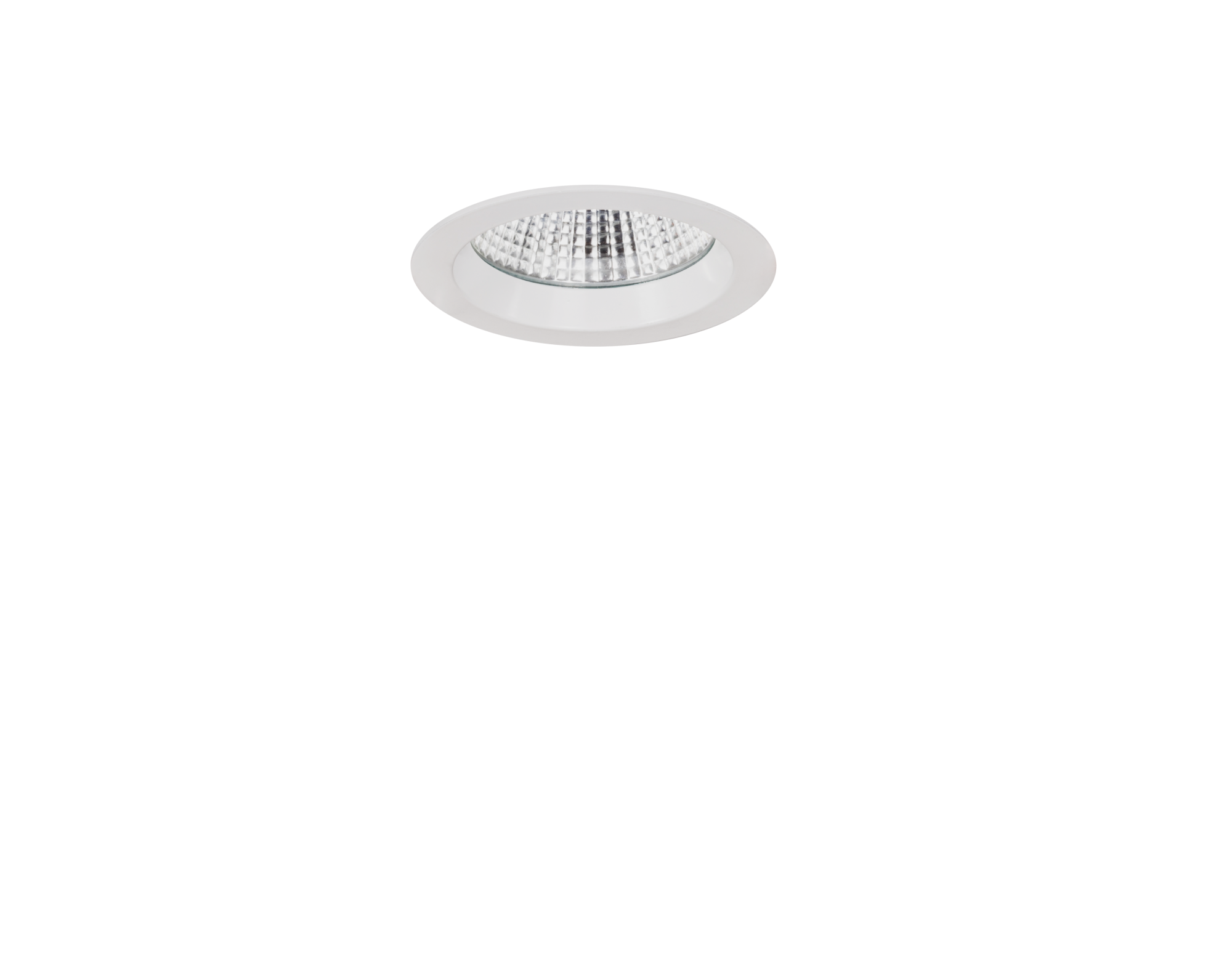

Star Mini is a downlight solution developed for modern interiors, with its compact dimensions and efficient optical structure. Its minimalist design creates a simple look on the ceiling while providing comfortable lighting throughout the space with homogeneous light distribution. The extruded aluminum profile body and aluminum injection frame ensure effective heat management, offering long-lasting use. With light angle options of 40°-72°, it is suitable for different application needs. Class-II electrical protection provides additional safety.

Thanks to its Ø119 mm compact body, it can be easily used in offices, hotels, corridors, shops, residential projects, and social areas. It combines aesthetic appearance with high performance in a small size.

Min-Max Watt:
13-39 [W]
Lumen:
1500-4375 [lm]
Lumen / Watt:
112 [lm/W]
Technical Documents
General Information
Housing
Aluminum Extruded
Frame
Aluminum Injection
Optics
Polished Reflector
Paint
Electrostatic Powder Coating
Insulation Class
Class II

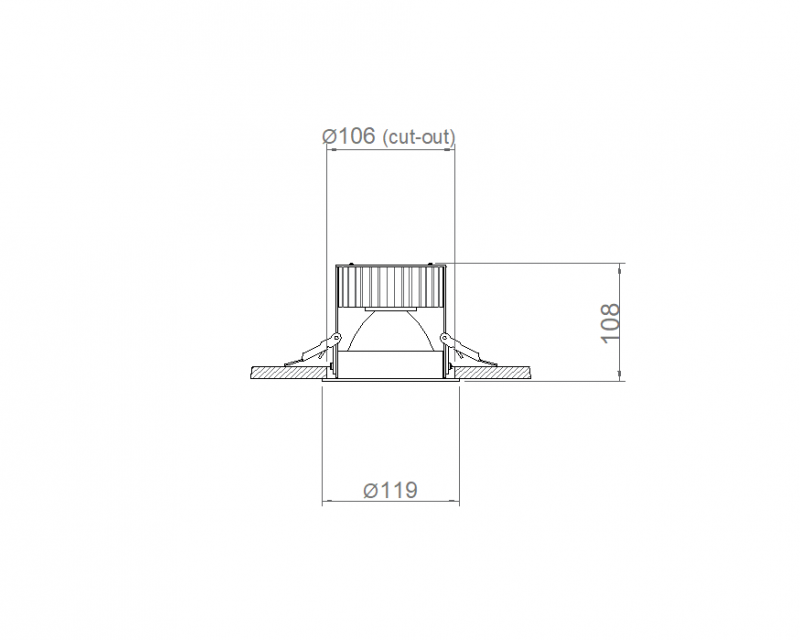

Product Dimensions [mm]
Ø119x108(H)
Mounting Type
Recessed
Mounting Part
Steel Spring
Electrical Info
Power
13-39W
Power Factor
>0.95
Light Source
COB LED
Cabling
Halojen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology

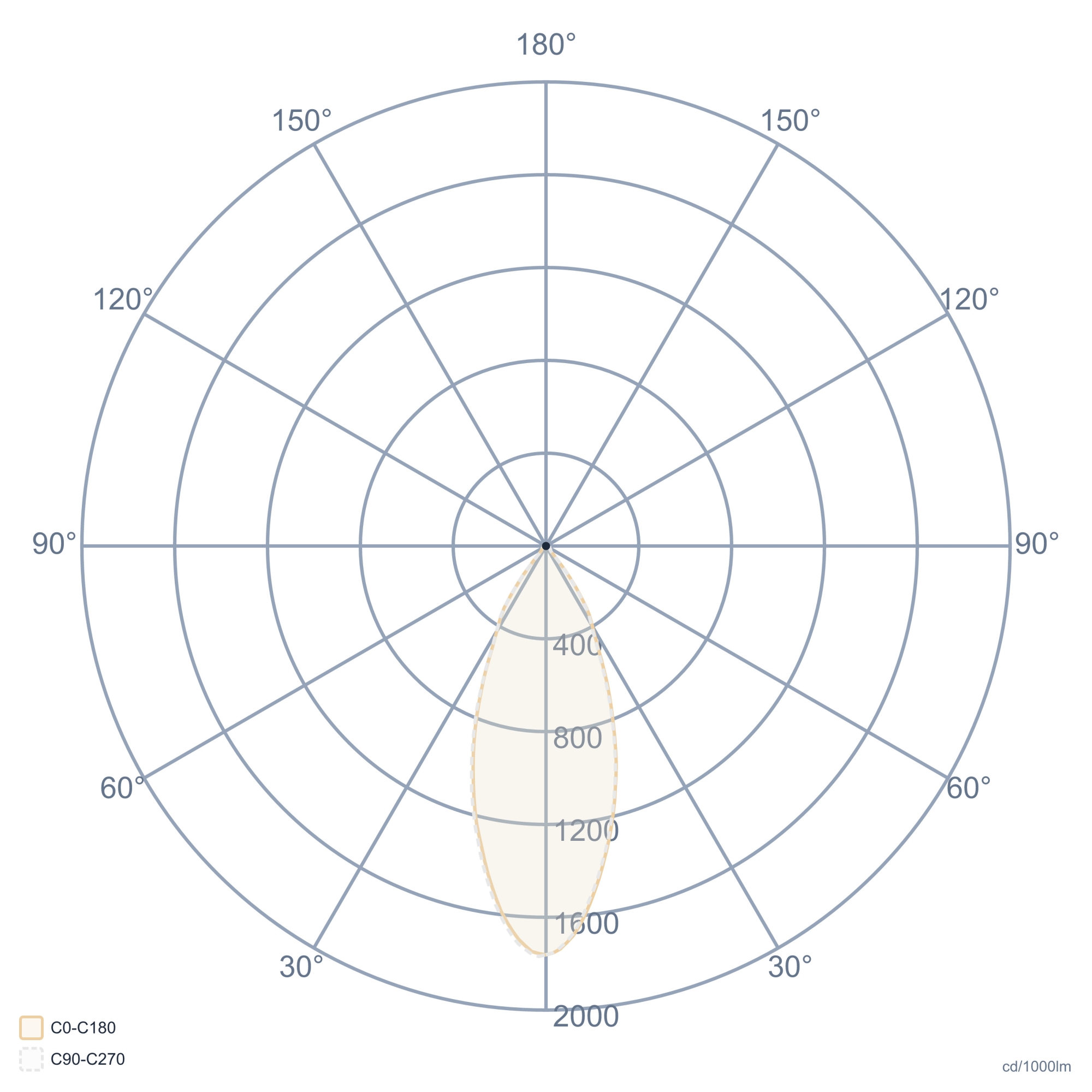

Light Output Angle
40°,72°
UGR Value
UGR < 22
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmAngleCCTØD x H (mm)Ceiling Cutting (mm)KgTechnical PagePhotometric File
