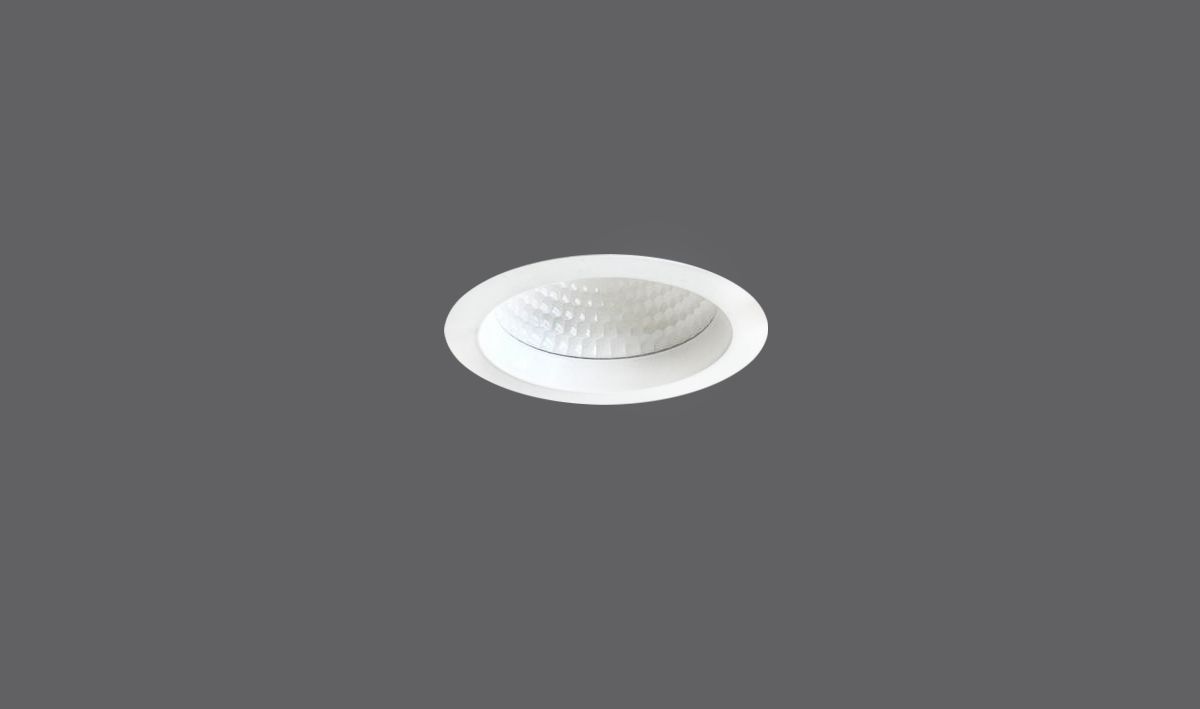

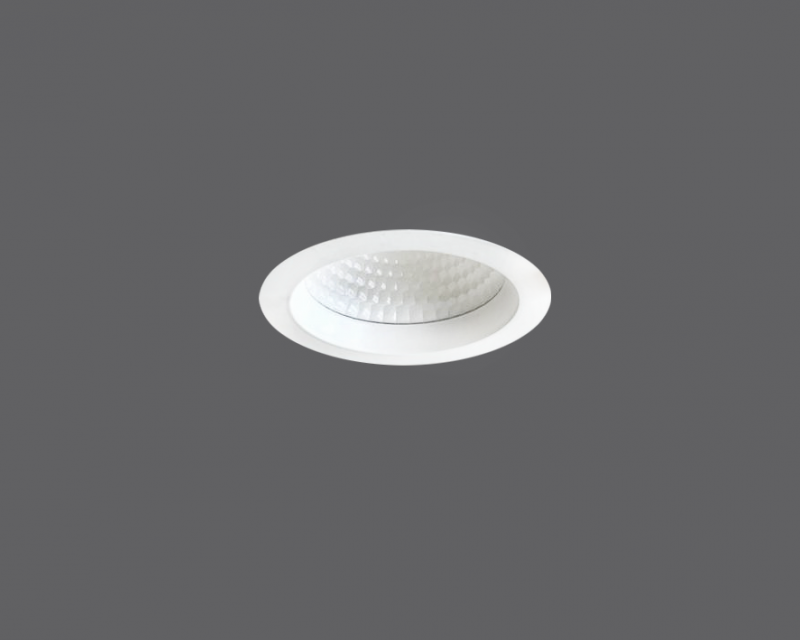

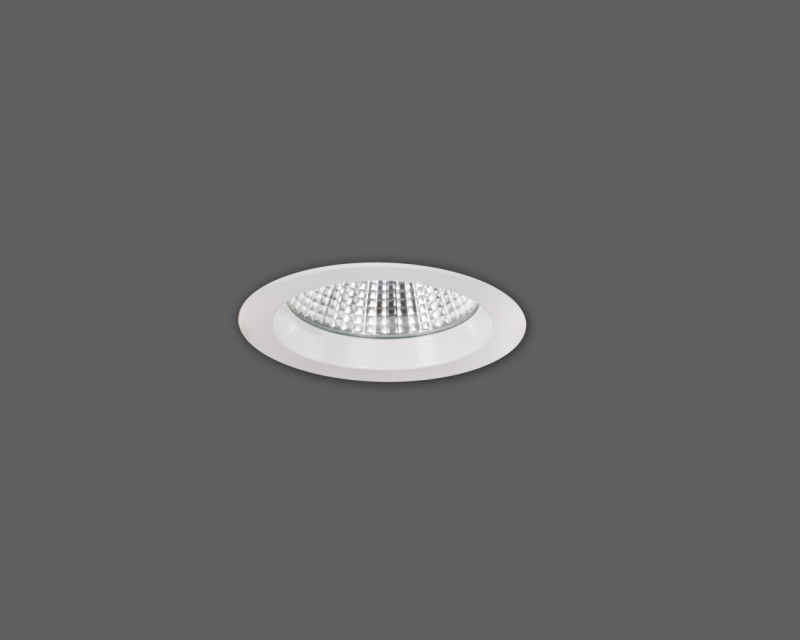

Indoor Lighting / Spot LightingStar Mini
BACK
| Housing | Extruded Aluminum Profile |
| Frame | Aluminum Injection |
| Reflector | Optical with Metallized Surface |
| Paint | Electrostatic Powder Paint |
| Optics | Symmetrical |
| Light Output Angle | 40°,72° |
| UGR Value | UGR < 22 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
   |
| Order Code | W | Lm | Angle | CCT | CRI | ØxH (mm) | Cut-out dimensions (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|---|
| 05110.11.30.014 | 11 | 1400 | 40°,72° | 3000 | Ra>80 | Ø119x108 | Ø106 | 0,60 | Technical Page | Ldt |
| 05110.11.40.015 | 11 | 1550 | 40°,72° | 4000 | Ra>80 | Ø119x108 | Ø106 | 0,60 | Technical Page | Ldt |
| 05110.11.30.023 | 19 | 2330 | 40°,72° | 3000 | Ra>80 | Ø119x108 | Ø106 | 0,60 | Technical Page | Ldt |
| 05110.11.40.024 | 19 | 2450 | 40°,72° | 4000 | Ra>80 | Ø119x108 | Ø106 | 0,60 | Technical Page | Ldt |
| 05110.11.30.027 | 23 | 2680 | 40°,72° | 3000 | Ra>80 | Ø119x108 | Ø106 | 0,60 | Technical Page | Ldt |
| 05110.11.40.028 | 23 | 2780 | 40°,72° | 4000 | Ra>80 | Ø119x108 | Ø106 | 0,60 | Technical Page | Ldt |
| 05110.11.30.036 | 31 | 3680 | 40°,72° | 3000 | Ra>80 | Ø119x108 | Ø106 | 0,60 | Technical Page | Ldt |
| 05110.11.40.037 | 31 | 3780 | 40°,72° | 4000 | Ra>80 | Ø119x108 | Ø106 | 0,60 | Technical Page | Ldt |
| 05110.11.30.042 | 38 | 4275 | 40°,72° | 3000 | Ra>80 | Ø119x108 | Ø106 | 0,60 | Technical Page | Ldt |
| 05110.11.40.043 | 38 | 4375 | 40°,72° | 4000 | Ra>80 | Ø119x108 | Ø106 | 0,60 | Technical Page | Ldt |
| IP Rating | IP20 |
| IK Rating | IK04 |
Shopping Mall
Cafe
Business Center
Office
Restaurant
