STAR
05110
Flexible Optics, Powerful Performance

Star offers both general and accent lighting with its reflector that has different light angles. Its simple circular form and design that integrates with the ceiling create a clean and aesthetic look in architectural projects. The extruded aluminum heatsink and aluminum injection frame provide heat management, ensuring a long lifespan. The metallized reflector efficiently directs light, while the 13°-24°-40°-60° light angle alternatives make it suitable for various applications, from narrow-angle accent lighting to wide-area lighting.

It is suitable for shops, offices, hotels, showrooms, galleries, and commercial projects. With its high light quality, flexible optical options, and modern design, it combines performance and aesthetics.

Min-Max Watt:
11-36 [W]
Lumen:
1500-4300 [lm]
Lumen / Watt:
120 [lm/W]
Technical Documents
General Information
Housing
Extruded Aluminum
Frame
Aluminum Injection
Optics
Polished Reflector
Paint
Electrostatic Powder Coating
Insulation Class
Class II

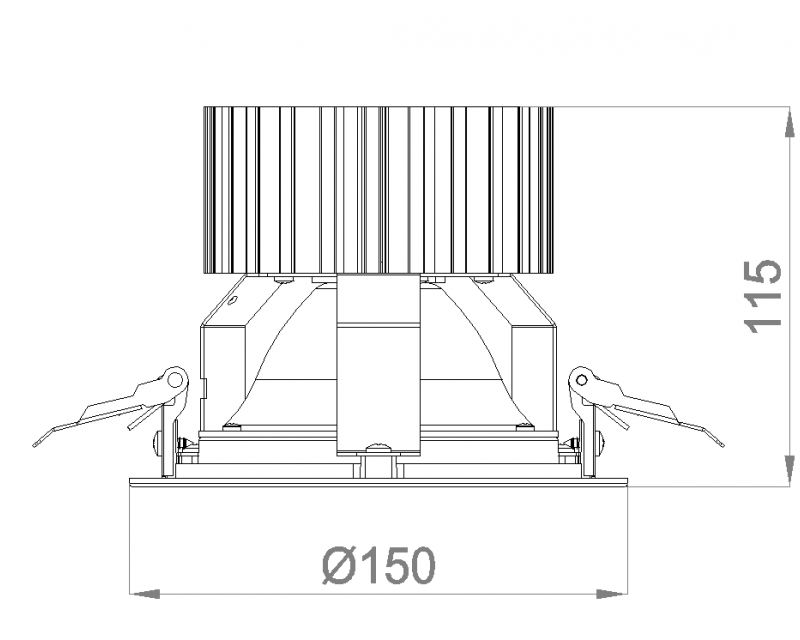

Product Dimensions [mm]
Ø150x115(H)
Mounting Type
Recessed
Mounting Part
Steel Spring
Electrical Info
Power
11-36W
Power Factor
>0.95
Light Source
COB LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology

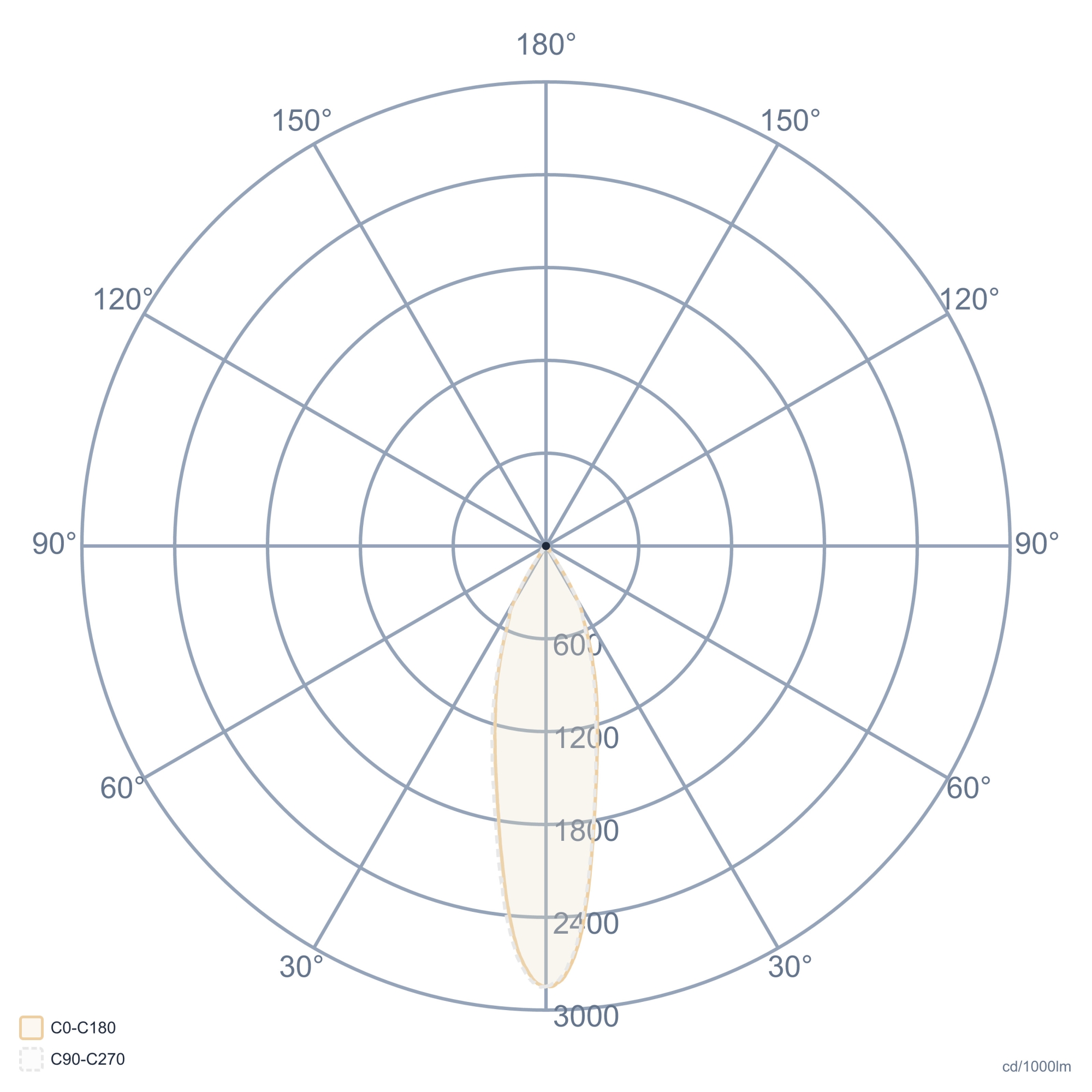

Light Output Angle
13°,24°,40°,60°
UGR Value
UGR < 25
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmCCTØDx(H)Cut-out dimensions (mm)KgTechnical PagePhotometric File
