FOCUS
01183
Design Award-Winning - Directional Acoustic Lighting

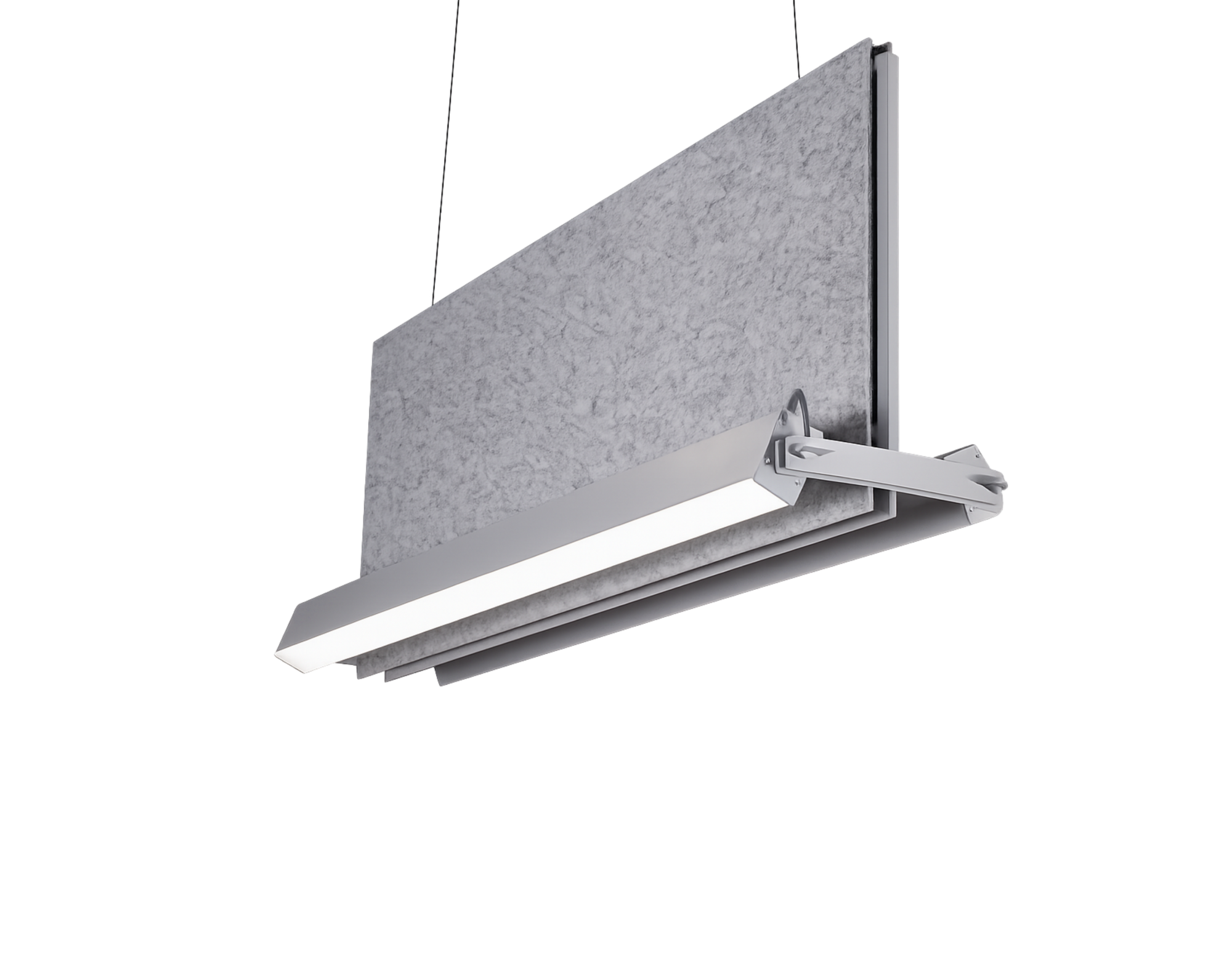

Focus, awarded the Design Turkey Good Design Award, is an innovative hybrid solution that combines lighting and acoustic performance in a single product. Thanks to the integration of a linear lighting profile with vertical acoustic felt panels, it provides both high visual comfort and effective sound absorption in spaces.

It allows for the creation of different lighting scenarios according to the application by directing the light output. With different felt colors and panel sizes that can be customized according to project needs, Focus offers an aesthetic, functional, and award-winning solution for open offices, meeting areas, educational buildings, and social living spaces.

Min-Max Watt:
58 [W]
Lumen:
5750 [lm]
Lumen / Watt:
100 [lm/W]
Technical Documents
General Information
Housing
Aluminum Extruded + Metal Carrier
Optics
Opal Diffuser
Panel
Acoustic Felt
Paint
Electrostatic Powder Painted
Insulation Class
Class I

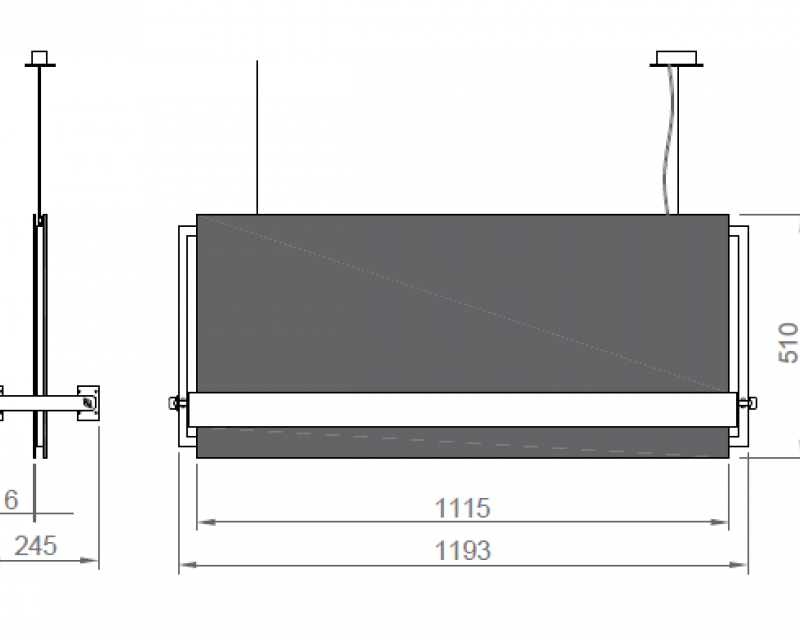

Product Dimensions [mm]
245(W)x1193(L)x510(H)
Mounting Type
Pendant
Mounting Part
Height Adjustable Steel Wire
Electrical Info
Power
58W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour

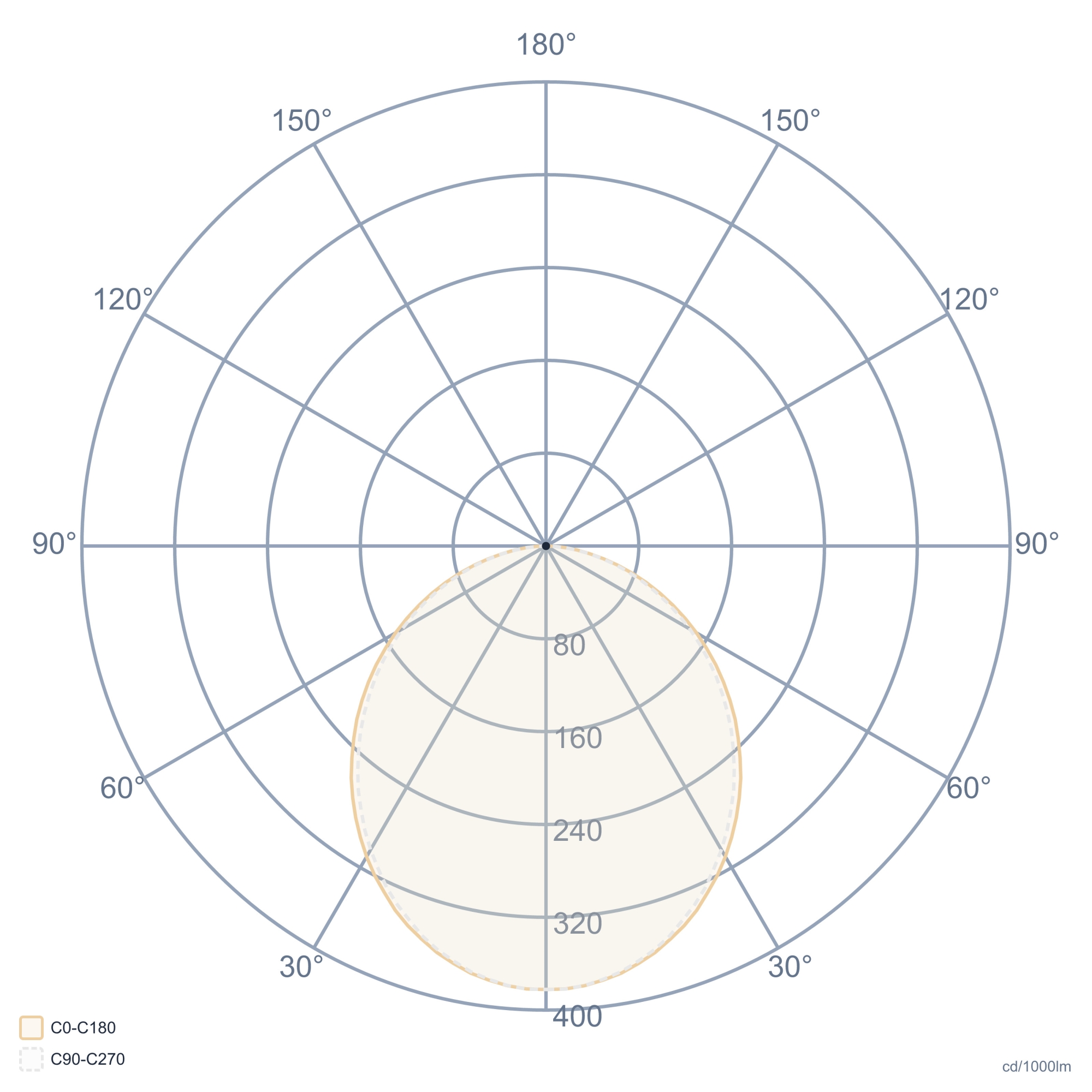

Lighting Technology
Light Output Angle
120°
UGR Value
UGR ≤ 19
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White

Order CodeWLmCCTWxLxH (mm)KgTechnical PagePhotometric File
