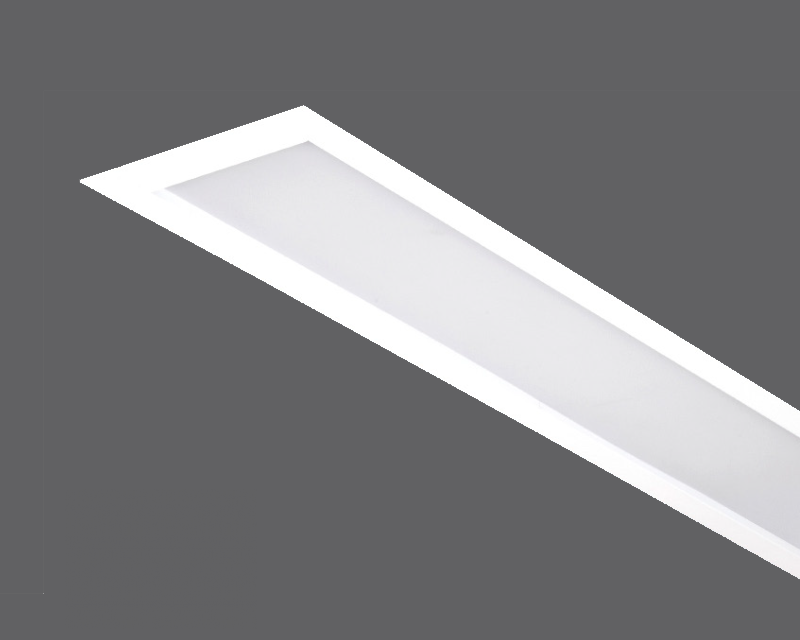

Indoor Lighting / Linear LightingWaterline-100 IP65
BACK
| Housing | Extruded Aluminum Profile |
| Side Cover | Aluminum Injection |
| Diffuser | High Light Transmittance Opal |
| Paint | Electrostatic Powder Paint |
| Dimensions(mm) | 97(W) x 90(H) |

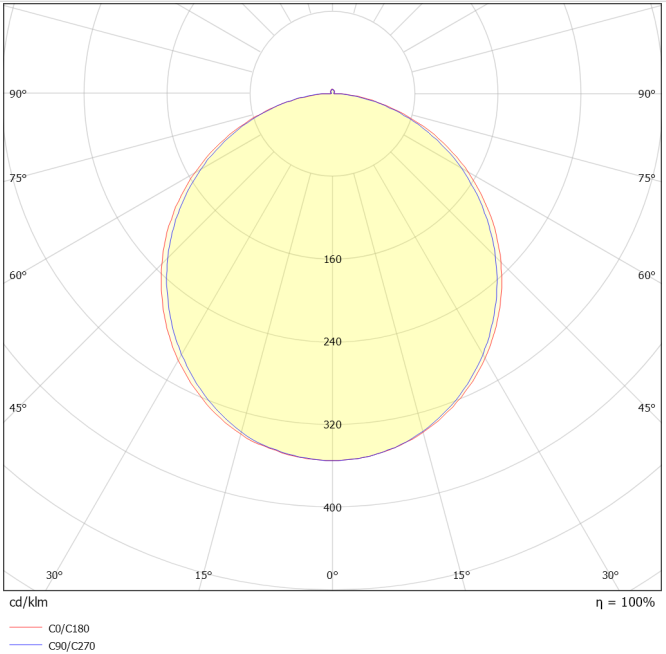

| Optics | Symmetrical |
| Light Output Angle | 110° |
| UGR Value | UGR ≤ 22 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
   |
| Order Code | W | Lm | CCT | CRI | WxHxL (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|
| 02156.99.30.020 | 18 | 1900 | 3000 | Ra>80 | 97x90x605 | 1,7 | Technical Page | Ldt |
| 02156.99.40.020 | 18 | 2000 | 4000 | Ra>80 | 97x90x605 | 1,7 | Technical Page | Ldt |
| 02156.99.30.030 | 27 | 2900 | 3000 | Ra>80 | 97x90x885 | 2,3 | Technical Page | Ldt |
| 02156.99.40.030 | 27 | 3000 | 4000 | Ra>80 | 97x90x885 | 2,3 | Technical Page | Ldt |
| 02156.99.30.041 | 38 | 3900 | 3000 | Ra>80 | 97x90x1165 | 2,9 | Technical Page | Ldt |
| 02156.99.40.041 | 38 | 4100 | 4000 | Ra>80 | 97x90x1165 | 2,9 | Technical Page | Ldt |
| 02156.99.30.052 | 46 | 5000 | 3000 | Ra>80 | 97x90x1445 | 3,5 | Technical Page | Ldt |
| 02156.99.40.052 | 46 | 5200 | 4000 | Ra>80 | 97x90x1445 | 3,5 | Technical Page | Ldt |
| 02156.99.30.062 | 56 | 6000 | 3000 | Ra>80 | 97x90x1725 | 4,1 | Technical Page | Ldt |
| 02156.99.40.062 | 56 | 6200 | 4000 | Ra>80 | 97x90x1725 | 4,1 | Technical Page | Ldt |
| 02156.99.30.072 | 65 | 7000 | 3000 | Ra>80 | 97x90x2005 | 4,8 | Technical Page | Ldt |
| 02156.99.40.072 | 65 | 7200 | 4000 | Ra>80 | 97x90x2005 | 4,8 | Technical Page | Ldt |
| IP Rating | IP65 |
| IK Rating | IK10 |
