SECTION
02113

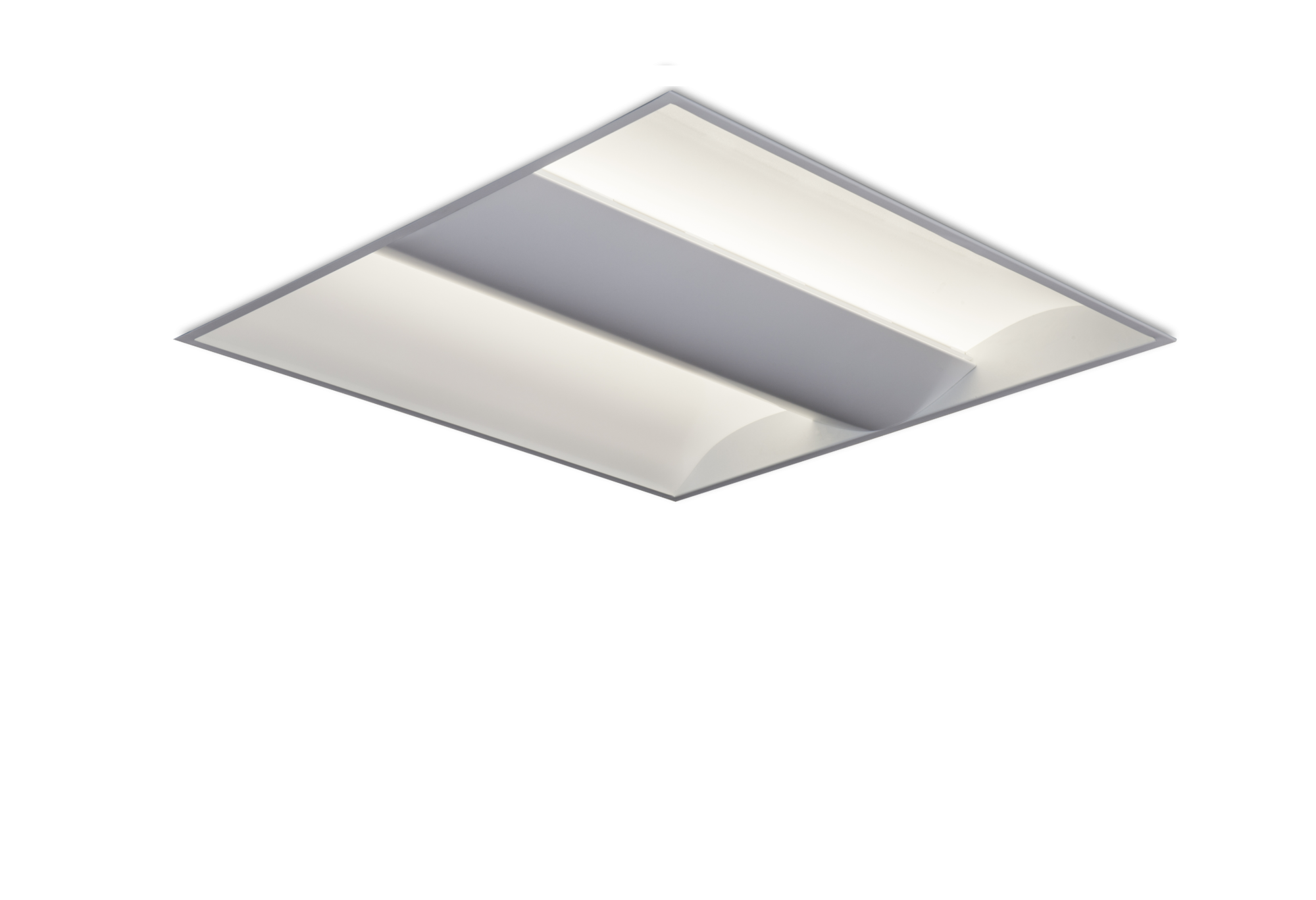

Indirect Illuminated Panel Luminaire

Section, with its special design featuring indirect lighting, creates a soft, balanced, and eye-friendly lighting atmosphere in spaces. The central metal sheet surface reflects the light from the LED modules positioned below, directing it through the side openings to the ceiling and creating a homogeneous illumination throughout the space.

Offering high visual comfort thanks to the absence of a visible direct light source, Section is an ideal solution for workspaces, educational buildings, healthcare facilities, and social areas. Its recessed mounting structure and simple design language integrate seamlessly with the ceiling, combining aesthetics and functionality in modern architectural projects.

Min-Max Watt:
40 [W]
Lumen:
2570 [lm]
Lumen / Watt:
70 [lm/W]
Technical Documents
General Information
Housing
DKP Metal Sheet
Optics
Opal Diffuser
Paint
Electrostatic Powder Paint
Insulation Class
Class I

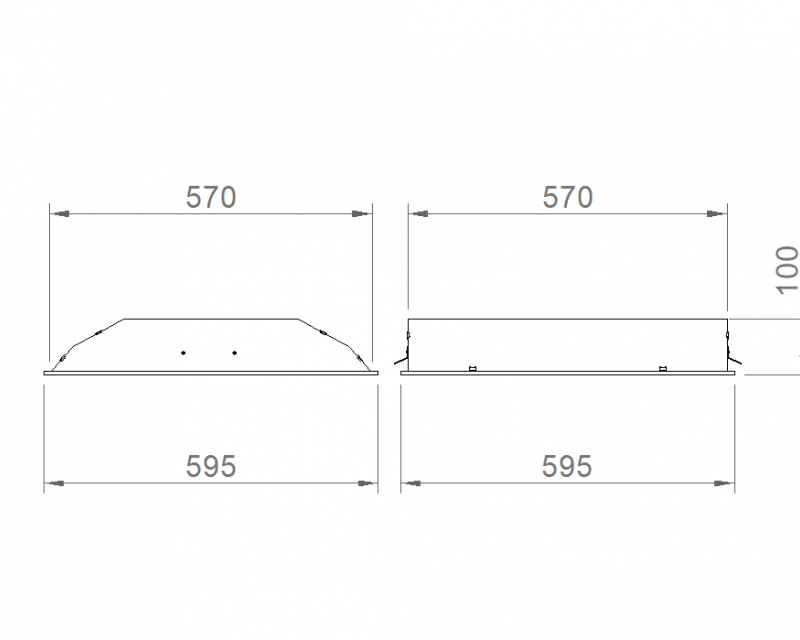

Product Dimensions [mm]
595(W) x 595(L) x 100(H)
Mounting Type
Recessed
Mounting Part
Metal Bracket
Electrical Info
Power
40W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology

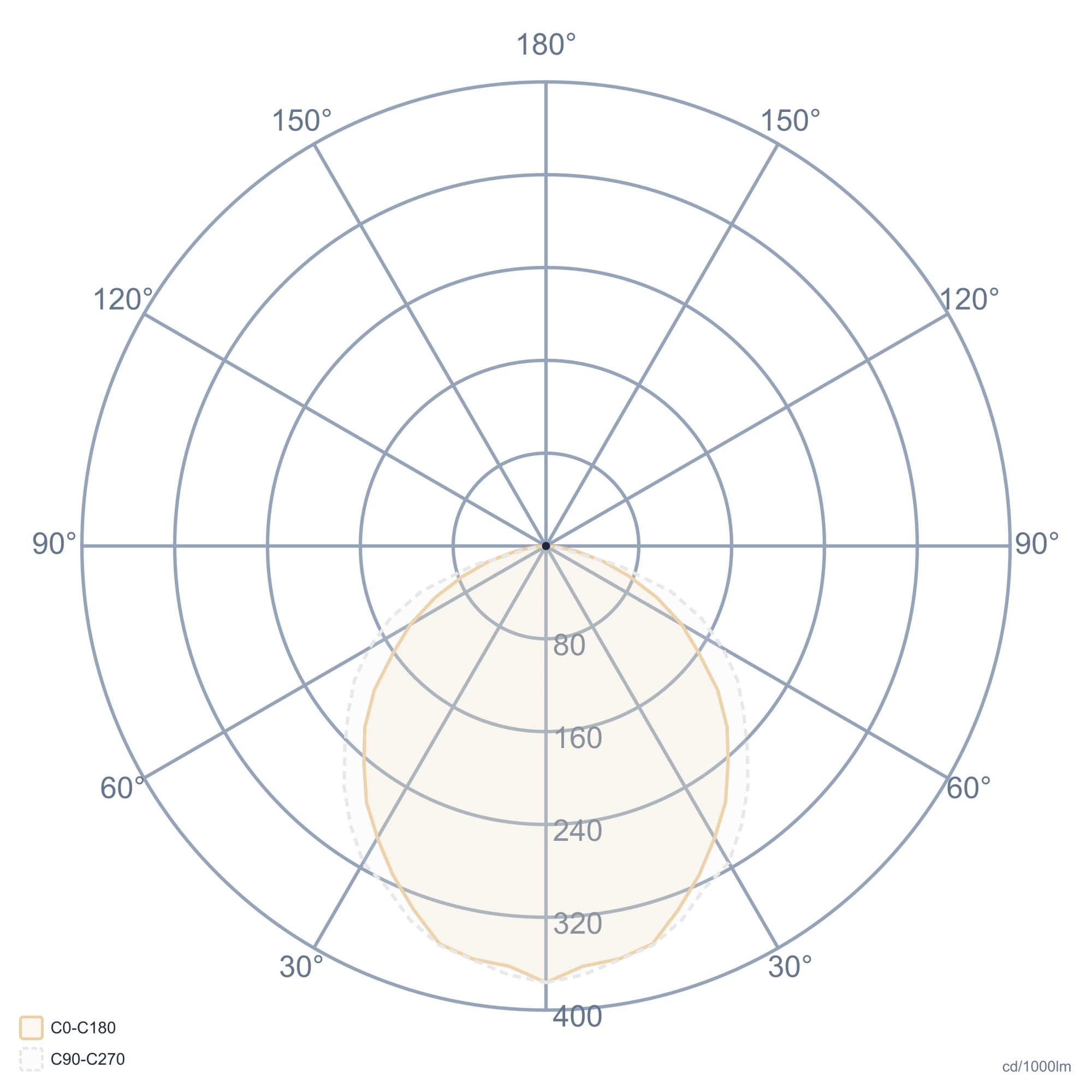

Light Output Angle
110°
UGR Value
UGR ≤ 19
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmCCTWxLxH (mm)KgTechnical PagePhotometric File
