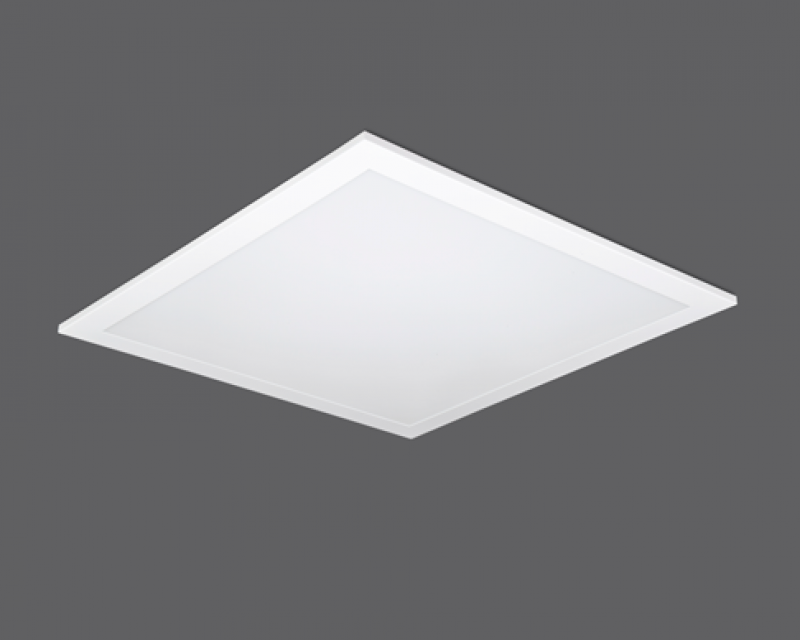

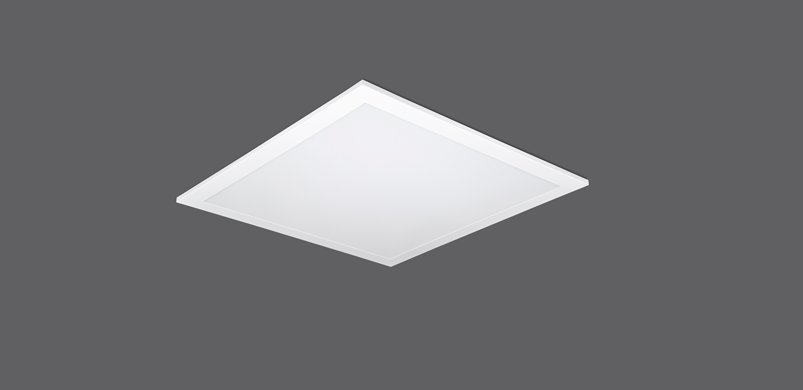

Indoor Lighting / Sterile Environment LightingEven-GN IP65
BACK
| Housing | Metal Sheet |
| Diffuser | Opal Diffuser |
| Paint | Electrostatic Powder Paint |
| Optics | Symmetrical |

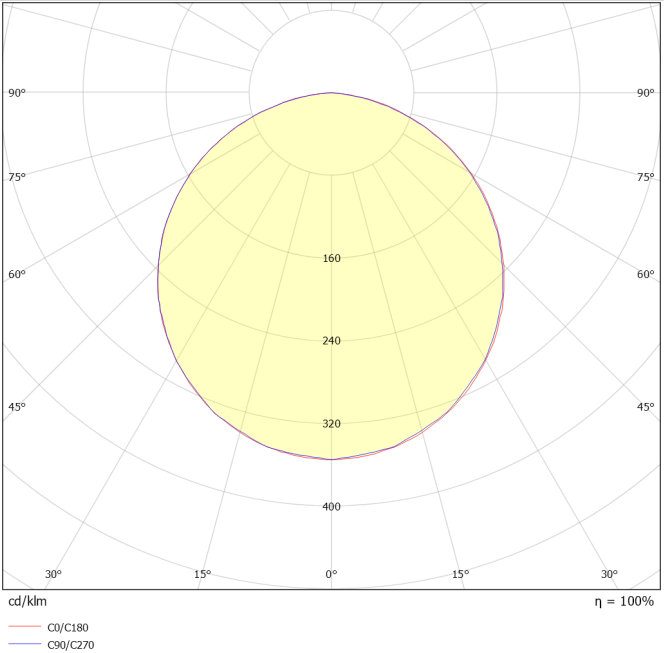

| Light Output Angle | 110° |
| UGR Value | UGR ≤ 22 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
   |

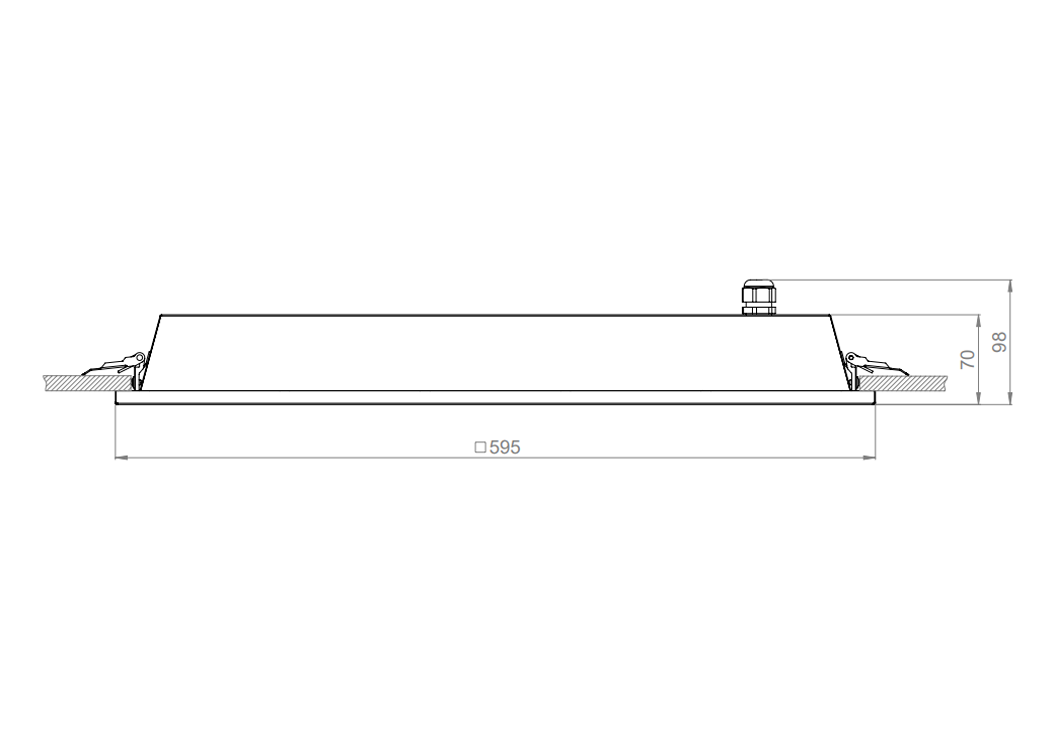

| Order Code | W | Lm | CCT | CRI | WxLxH (mm) | Cut-out dimensions (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|
| 02144.66.30.033 | 28 | 3300 | 3000 | Ra>80 | 595x595x70 | 580x580 | 4,5 | Technical Page | Ldt |
| 02144.66.40.034 | 28 | 3400 | 4000 | Ra>80 | 595x595x70 | 580x580 | 4,5 | Technical Page | Ldt |
| 02144.66.30.038 | 33 | 3850 | 3000 | Ra>80 | 595x595x70 | 580x580 | 4,5 | Technical Page | Ldt |
| 02144.66.40.040 | 33 | 4000 | 4000 | Ra>80 | 595x595x70 | 580x580 | 4,5 | Technical Page | Ldt |
| 02144.66.30.043 | 39 | 4350 | 3000 | Ra>80 | 595x595x70 | 580x580 | 4,5 | Technical Page | Ldt |
| 02144.66.40.045 | 39 | 4500 | 4000 | Ra>80 | 595x595x70 | 580x580 | 4,5 | Technical Page | Ldt |
| IP Rating | IP65 |
| IK Rating | IK04 |
Hospital
Laboratory
