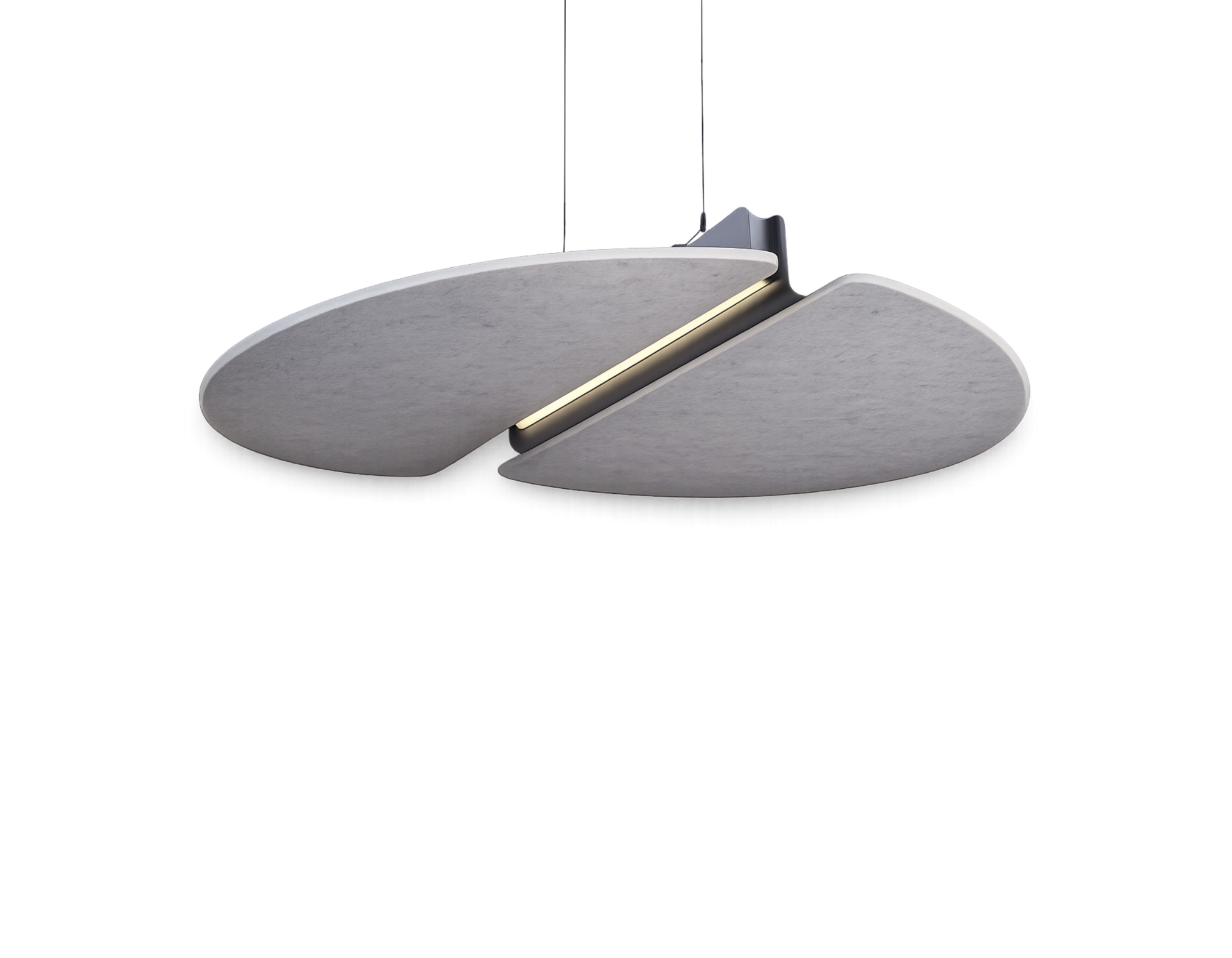

Acoustic Lighting / STILL SeriesRest-R
BACK
| Housing | Extruded Aluminum Profile + Metal Carrier |
| Diffuser | High Transmission Opal Diffuser |
| Accessories | Acoustic Panel |
| Paint | Electrostatic Powder Painted |

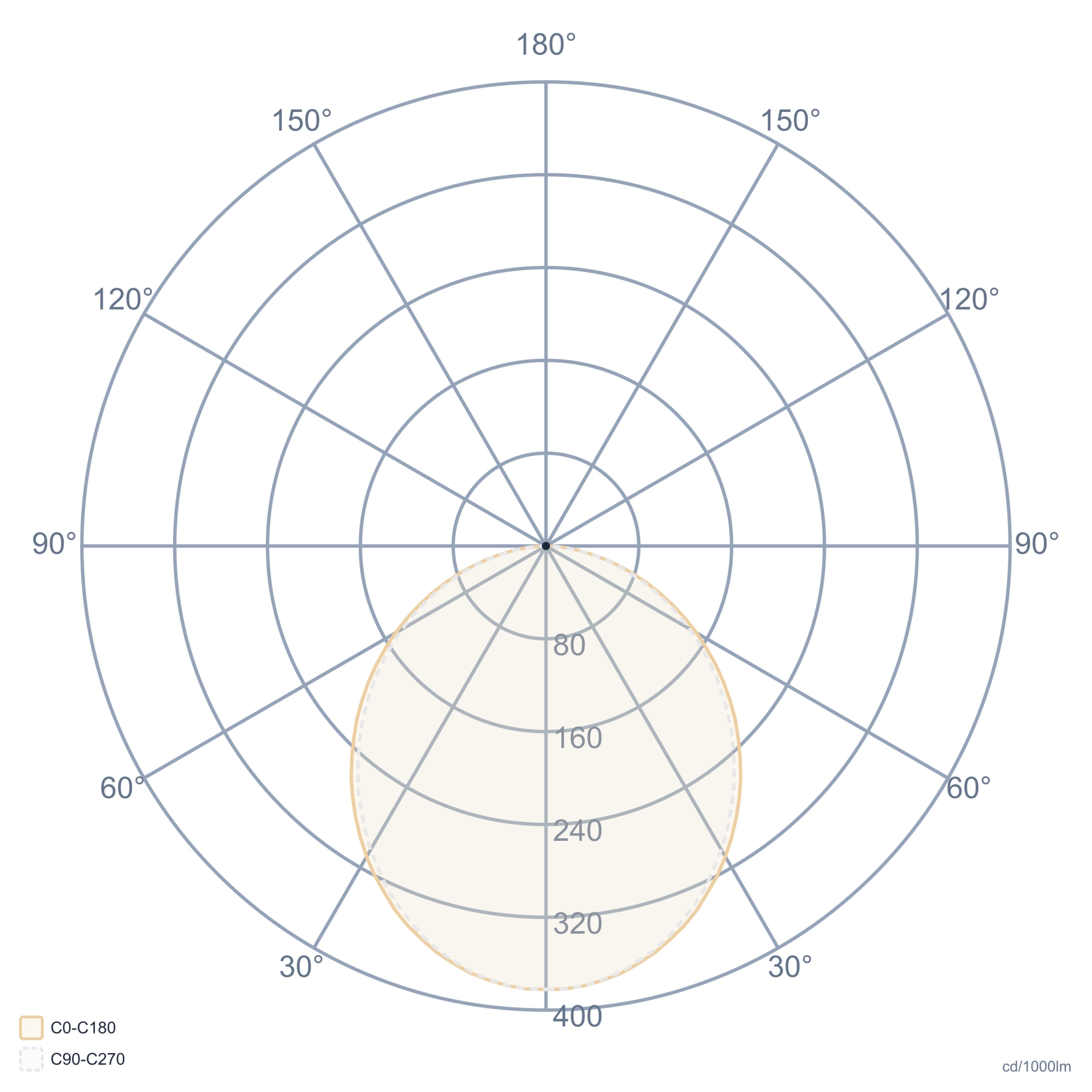

| Light Distribution | Symmetrical |
| Light Output Angle | 120° |
| UGR Value | UGR ≤ 19 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Order Code | W | Lm | CCT | CRI | WxLxH (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|

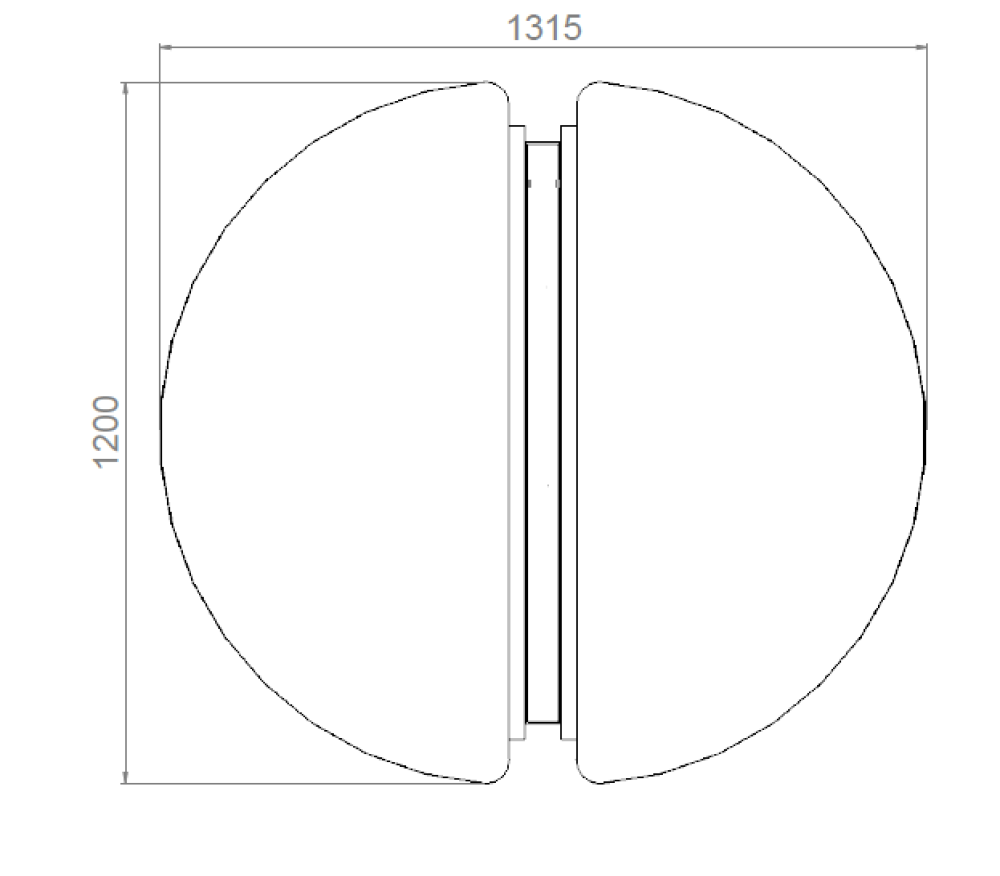

| 01183.12.30.031 | 29 | 2675 | 3000 | Ra>80 | 1303x1200x188 | 14,0 | Technical Page | Ldt |
| 01183.12.40.032 | 29 | 2785 | 4000 | Ra>80 | 1303x1200x188 | 14,0 | Technical Page | Ldt |
| IP Rating | IP40 |
| IK Rating |
Cafe
Office
Movie Theater
Meeting Room
