SKATE-RM
01183
Acoustic Comfort, Layered Lighting

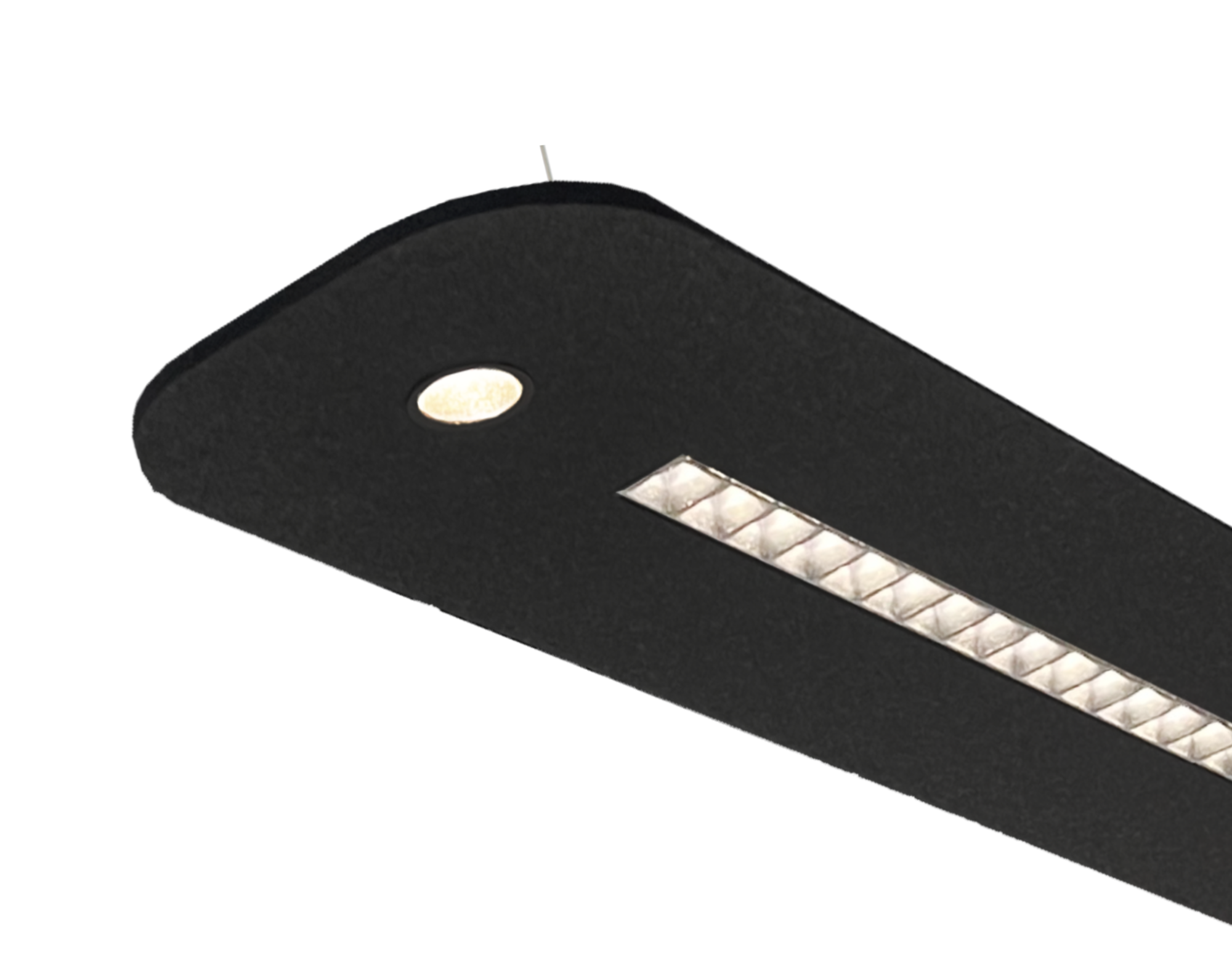

Skate-RM is a hybrid solution that combines reflector-equipped linear lighting with sound-absorbing acoustic felt panels for visual comfort, and two integrated spotlights. It provides both main and accent lighting, creating a layered and aesthetically pleasing light scheme in the space.

Thanks to glare-controlled reflectors and precision lens optics, it offers visual comfort with a UGR≤16, while the acoustic felt panel reduces echo, improving sound quality in working environments. It adapts to architecture with different felt colors and customizable panel sizes. It combines acoustic treatment, general lighting, and accent lighting in a single product for offices, meeting rooms, training areas, and social living spaces.

Min-Max Watt:
30+12 [W]
Lumen:
4600 [lm]
Lumen / Watt:
110 [lm/W]
Technical Documents
General Information
Housing
Aluminum Extruded
Housing
Aluminum Injection (Spot)
Panel
Acoustic Felt
Optics
Opal Diffuser
Paint
Electrostatic Powder Painted
Insulation Class
Class I

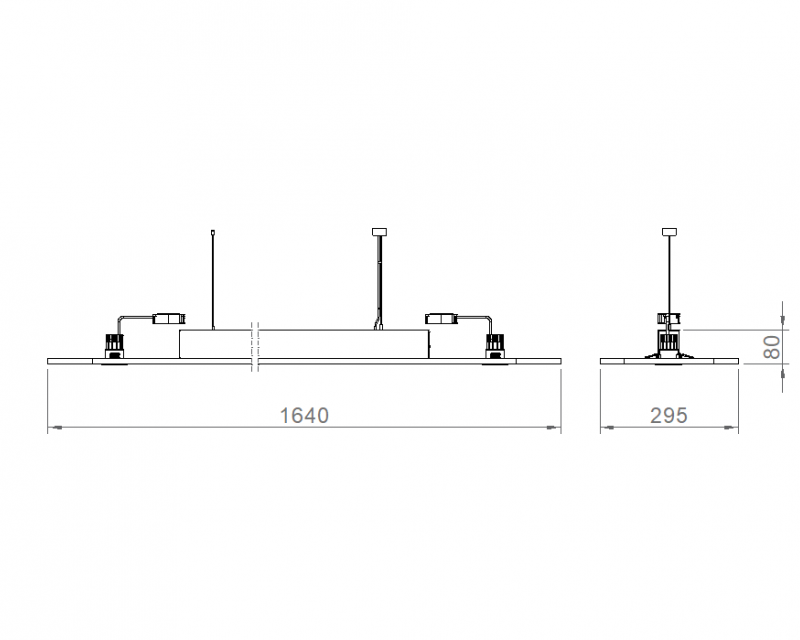

Product Dimensions [mm]
295(W)x1640(L)x80(H)
Mounting Type
Pendant
Mounting Part
Height Adjustable Steel Wire
Electrical Info
Power
30W+12W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halojen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology

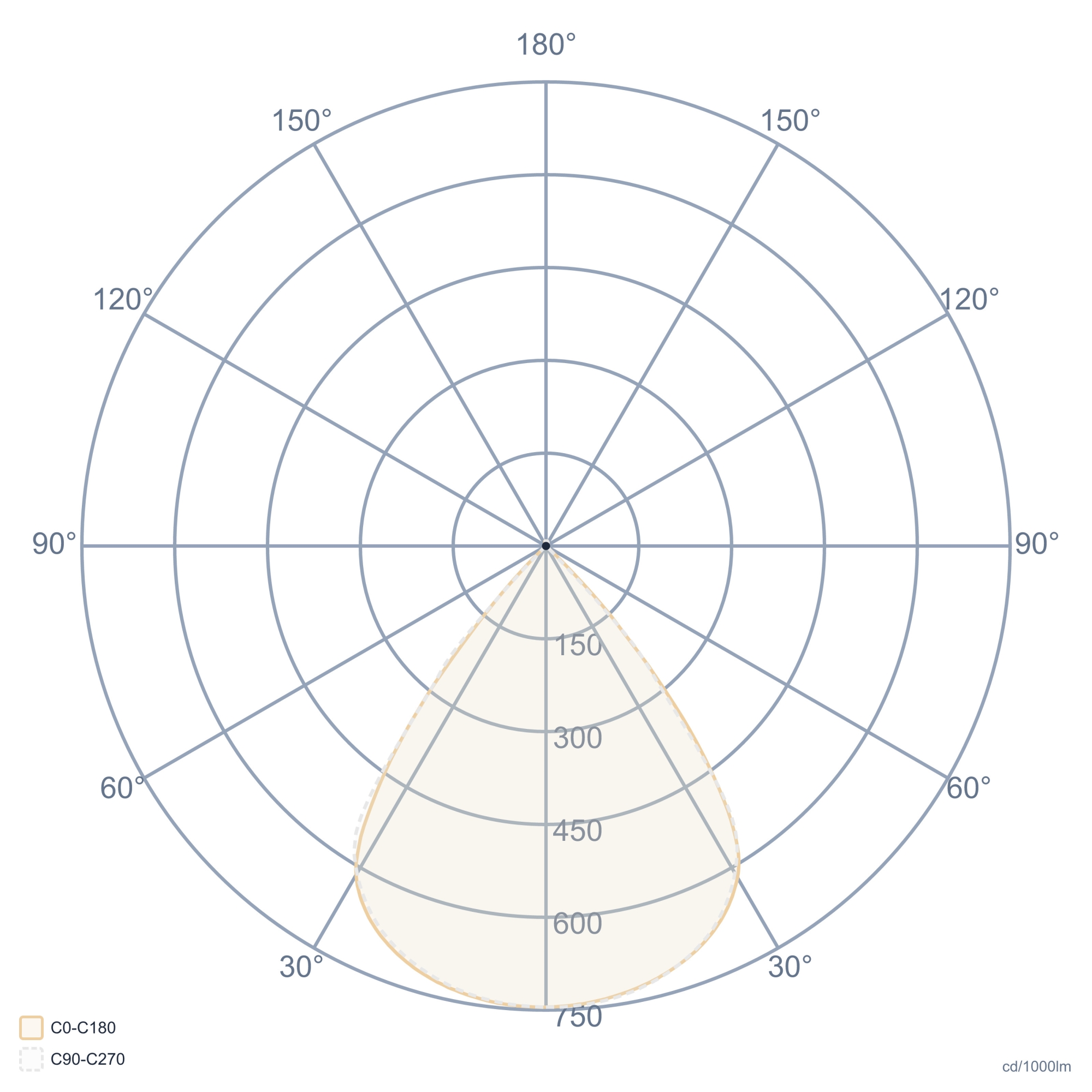

Light Output Angle
80°
UGR Value
UGR ≤ 16
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmCCTWxLxH (mm)KgTechnical PagePhotometric File
