SKATE-R
01183
Acoustic Comfort and Low Glare Lighting

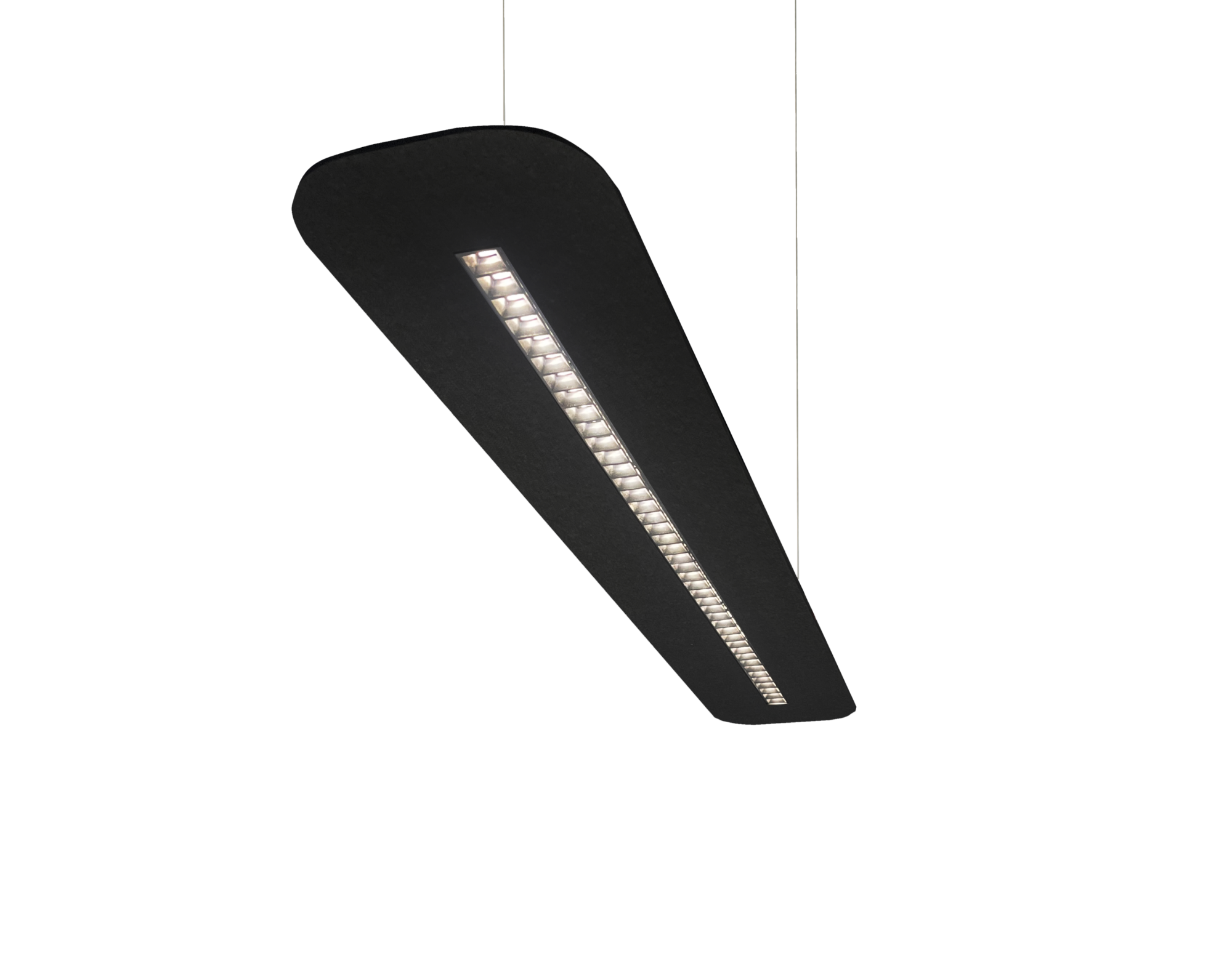

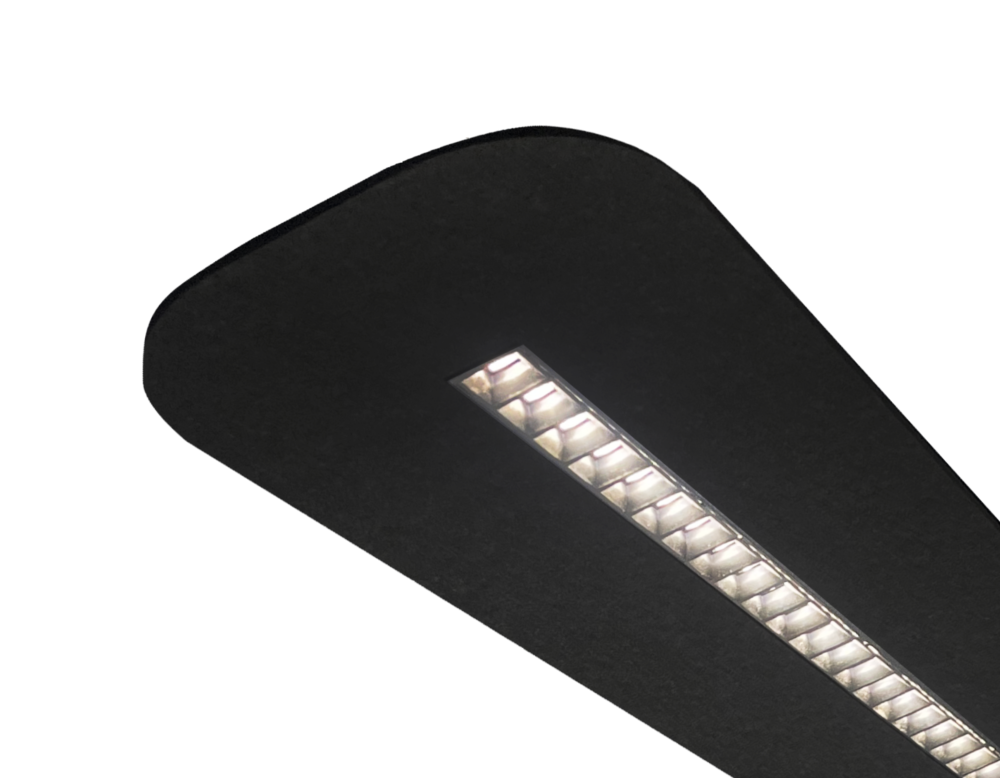

Skate-R is a hybrid solution that combines sound-absorbing acoustic felt panels with high-efficiency LED lighting in a single product. Thanks to its glare-controlled reflector and lens optics, it offers visual comfort with a UGR≤16, while the acoustic felt panel reduces echo, improving sound quality in working environments.

It adapts to architecture with different felt colors and customizable panel sizes. It provides both acoustic treatment and high-quality lighting solutions in a single product for open offices, meeting rooms, training areas, and social living spaces.

Min-Max Watt:
30 [W]
Lumen:
3600 [lm]
Lumen / Watt:
120 [lm/W]
Technical Documents
General Information
Housing
Aluminum Extruded
Panel
Acoustic Felt
Optics
Optical Reflector
Paint
Electrostatic Powder Paint
Insulation Class
Class I

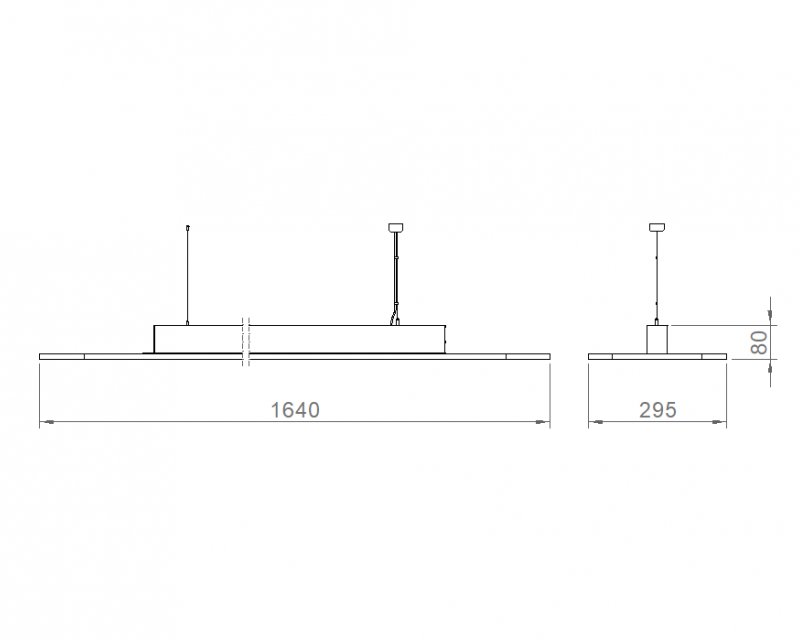

Product Dimensions [mm]
295(W)x1640(L)x80(H)
Mounting Type
Pendant
Mounting Part
Height Adjustable Steel Wire
Electrical Info
Power
30W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology

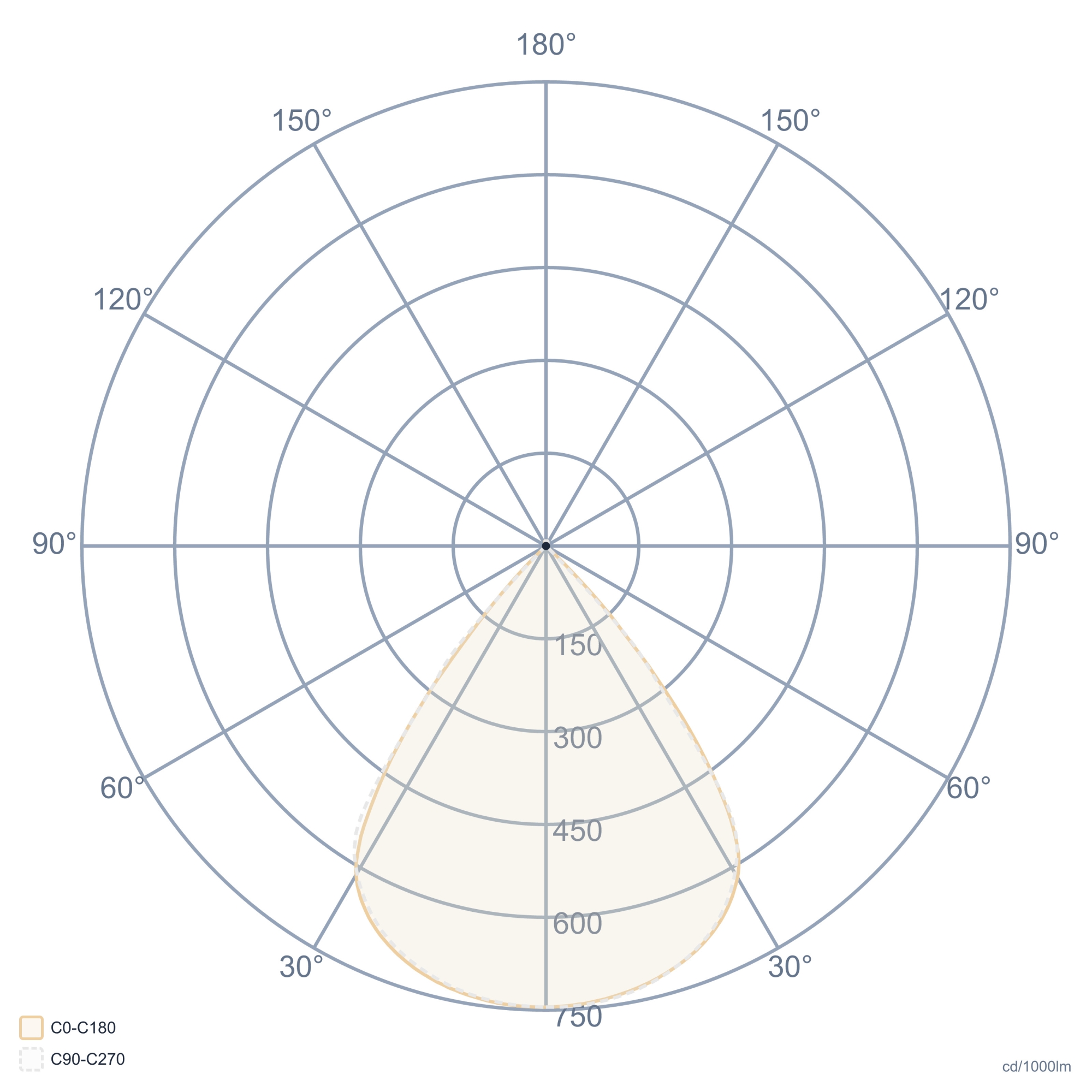

Light Output Angle
80°
UGR Value
UGR ≤ 16
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmCCTWxLxH (mm)KgTechnical PagePhotometric File
