Indoor Lighting / Spot LightingTiny 040
BACK
| Housing | Aluminum Injection |
| Reflector | Metallized Surface Optics |
| Diffuser | Transparent Lens |
| Paint | Electrostatic Powder Paint |

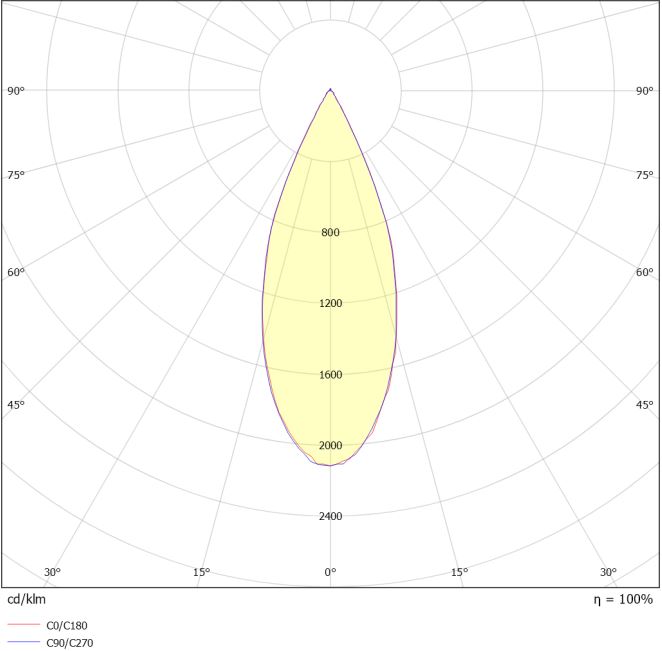

| Light Distribution | Symmetrical |
| Light Output Angle | 39° |
| UGR Value | UGR ≤ 19 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
 |
| Order Code | W | Lm | Angle | CCT | CRI | ØxH (mm) | Ceiling Cutting (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|---|
| 05112.03.30.001 | 2,5 | 190 | 39° | 3000 | Ra>80 | 40x61 | Ø35 | 0,065 | Technical Page | Ldt |
| 05112.03.40.001 | 2,5 | 205 | 39° | 4000 | Ra>80 | 40x61 | Ø35 | 0,065 | Technical Page | Ldt |
| 05112.03.30.003 | 5 | 390 | 39° | 3000 | Ra>80 | 40x61 | Ø35 | 0,065 | Technical Page | Ldt |
| 05112.03.40.003 | 5 | 420 | 39° | 4000 | Ra>80 | 40x61 | Ø35 | 0,065 | Technical Page | Ldt |
| IP Rating | IP40 |
| IK Rating | IK04 |
Cafe
Hospital
Business Center
Office
School
