Indoor Lighting / Downlight LightingSnow-015
BACK
| Housing | Aluminum Injection |
| Diffuser | High Transmittance Opal Diffuser |
| Frame | Aluminum İnjection |
| Paint | Electrostatic Powder Paint |
| Optics | Symmetrical |
| Light Output Angle | 110° |
| UGR Value | UGR ≤ 22 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
   |

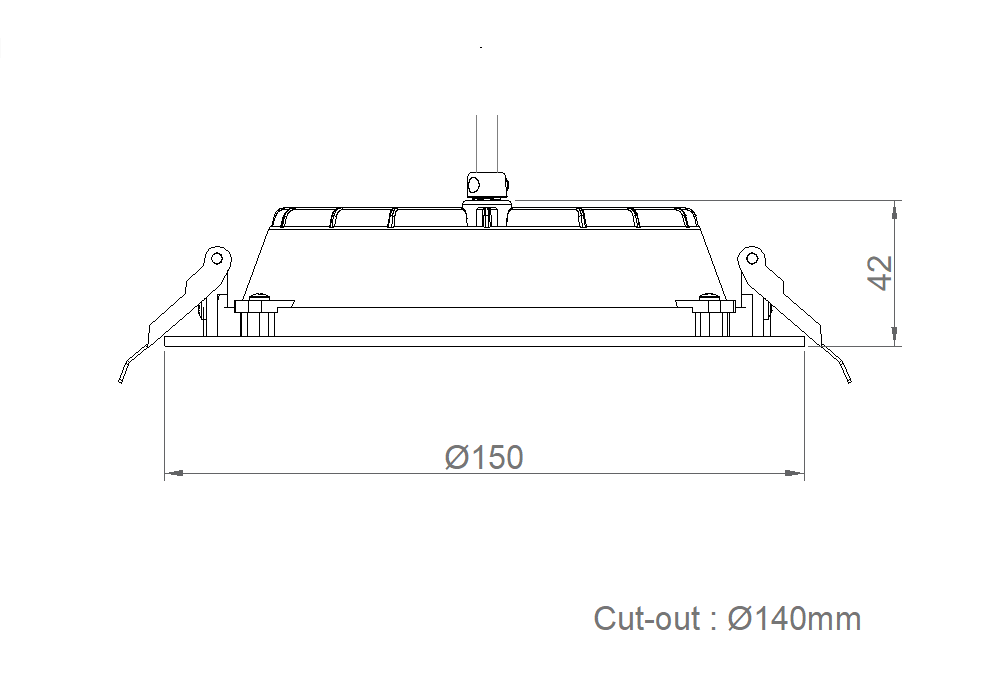

| Order Code | W | Lm | Productivity | CCT | CRI | ØxH (mm) | Cut-out dimensions (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|---|
| 05393.15.30.013 | 13 | 1305 | 100 lm/W | 3000 | Ra>80 | Ø150x42 | Ø140 | 0,4 | Technical Page | |
| 05393.15.40.014 | 13 | 1450 | 110 lm/W | 4000 | Ra>80 | Ø150x42 | Ø140 | 0,4 | Technical Page | |
| 05393.15.30.0102018 | 19 | 1845 | 100 lm/W | 3000 | Ra>80 | Ø150x42 | Ø140 | 0,4 | Technical Page | |
| 05393.15.40.019 | 19 | 2050 | 110 lm/W | 4000 | Ra>80 | Ø150x42 | Ø140 | 0,4 | Technical Page |
| IP Rating | IP40/54 |
| IK Rating | IK02 |
Hospital
Business Center
Office
School
Restaurant
