CONTIN
07200

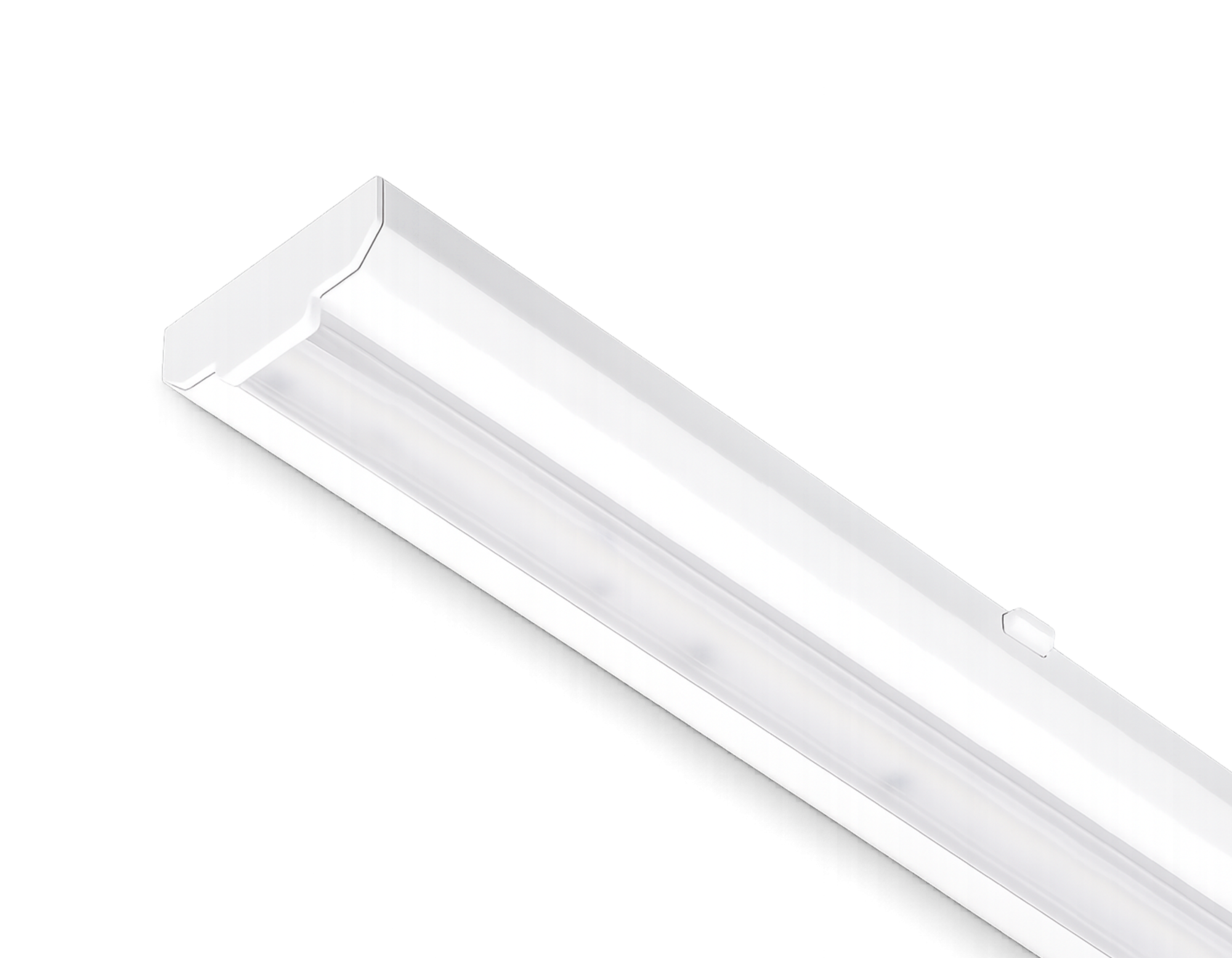

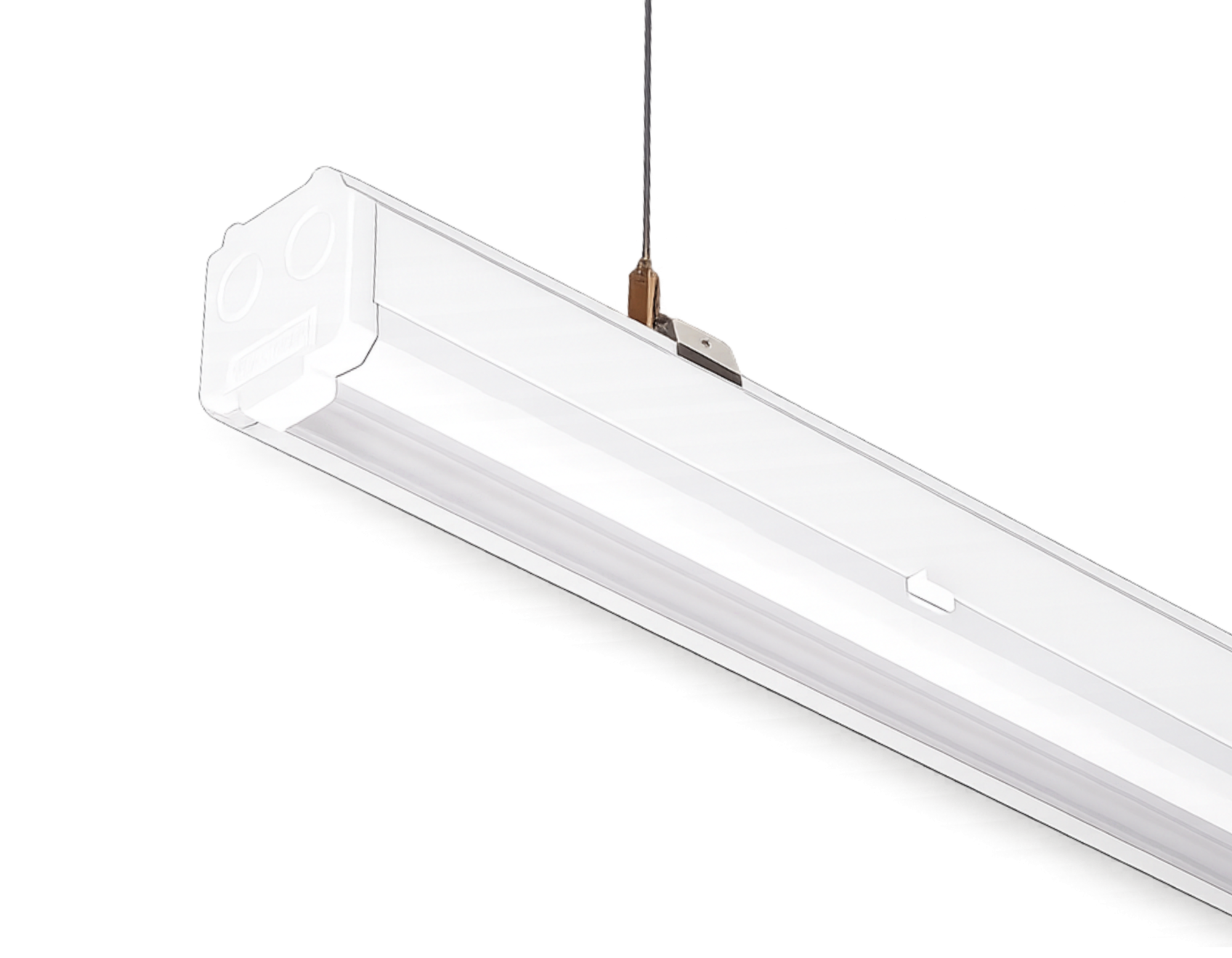

The Contin Lighting Unit is designed for continuous lighting systems. Its electrostatically powder-coated aluminum housing and optical lens structure offer long-lasting, durable, and energy-efficient use. With 60° and 90° symmetrical, 40°x100° symmetrical, and 2x25° asymmetrical optical angle options, it provides light direction tailored to the application area. Its flexible optical structure helps to effectively deliver light to the required areas while increasing energy efficiency.

With its compact dimensions, it can be easily used in continuous line lighting, corridors, warehouses, logistics centers, and chain stores. Its modular structure and different power options offer project-specific solutions, providing a high-performance and reliable lighting experience.

Min-Max Watt:
48-72 [W]
Lumen:
7500-11200 [lm]
Lumen / Watt:
155 [lm/W]
Technical Documents
General Information
Housing
Electrostatic Powder Coated Aluminum
Optics
Optical Lens
Side Cover
PC Injection
Insulation Class
Class I

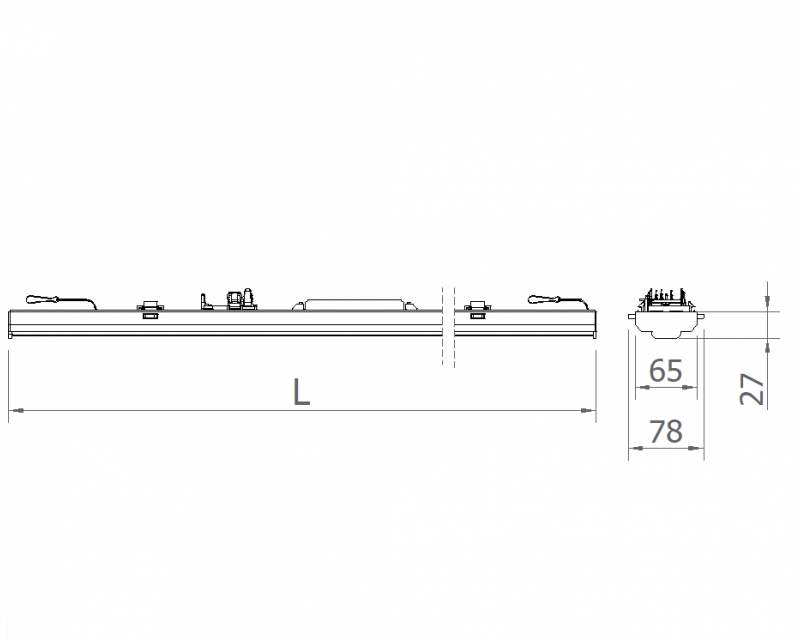

Product Dimensions [mm]
65(W)x27(H)
Electrical Info
Power
48-72W
Power Factor
>0.95
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +40°C
LED Lifetime L70
>100.000 Hours
Lighting Technology

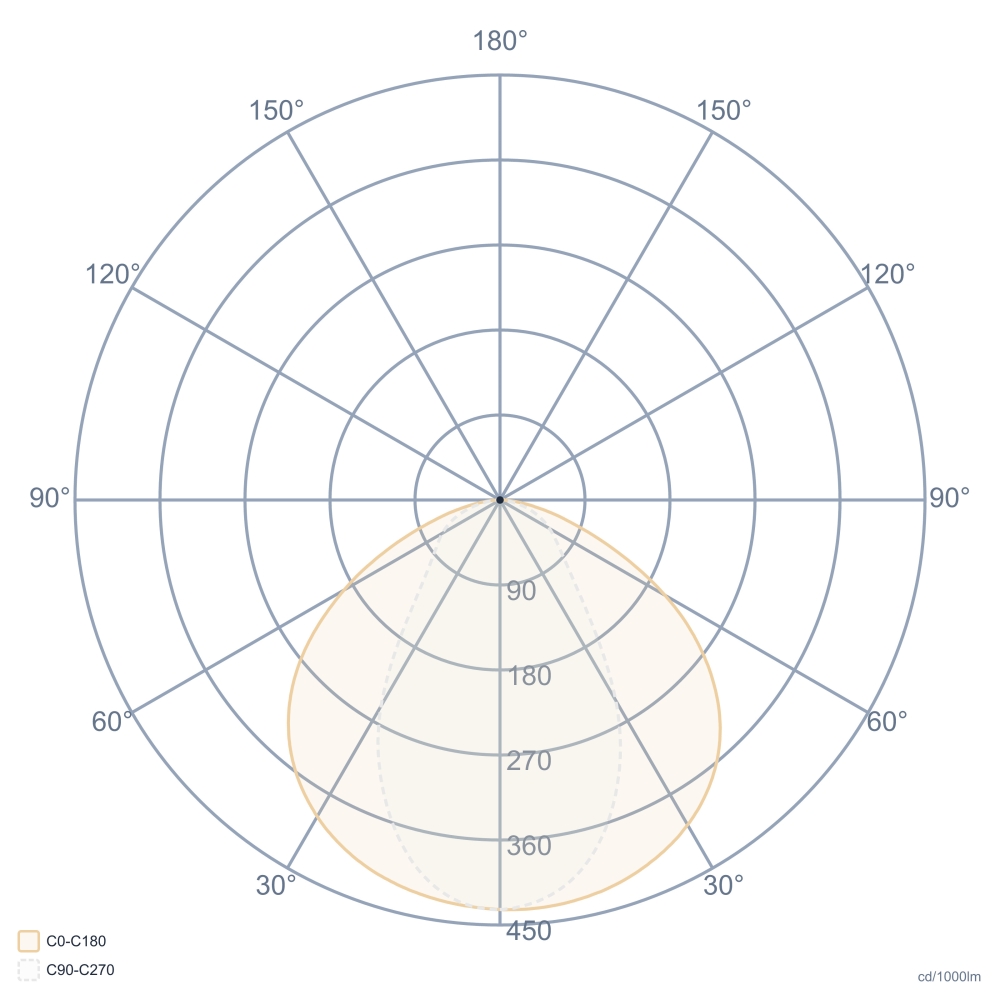

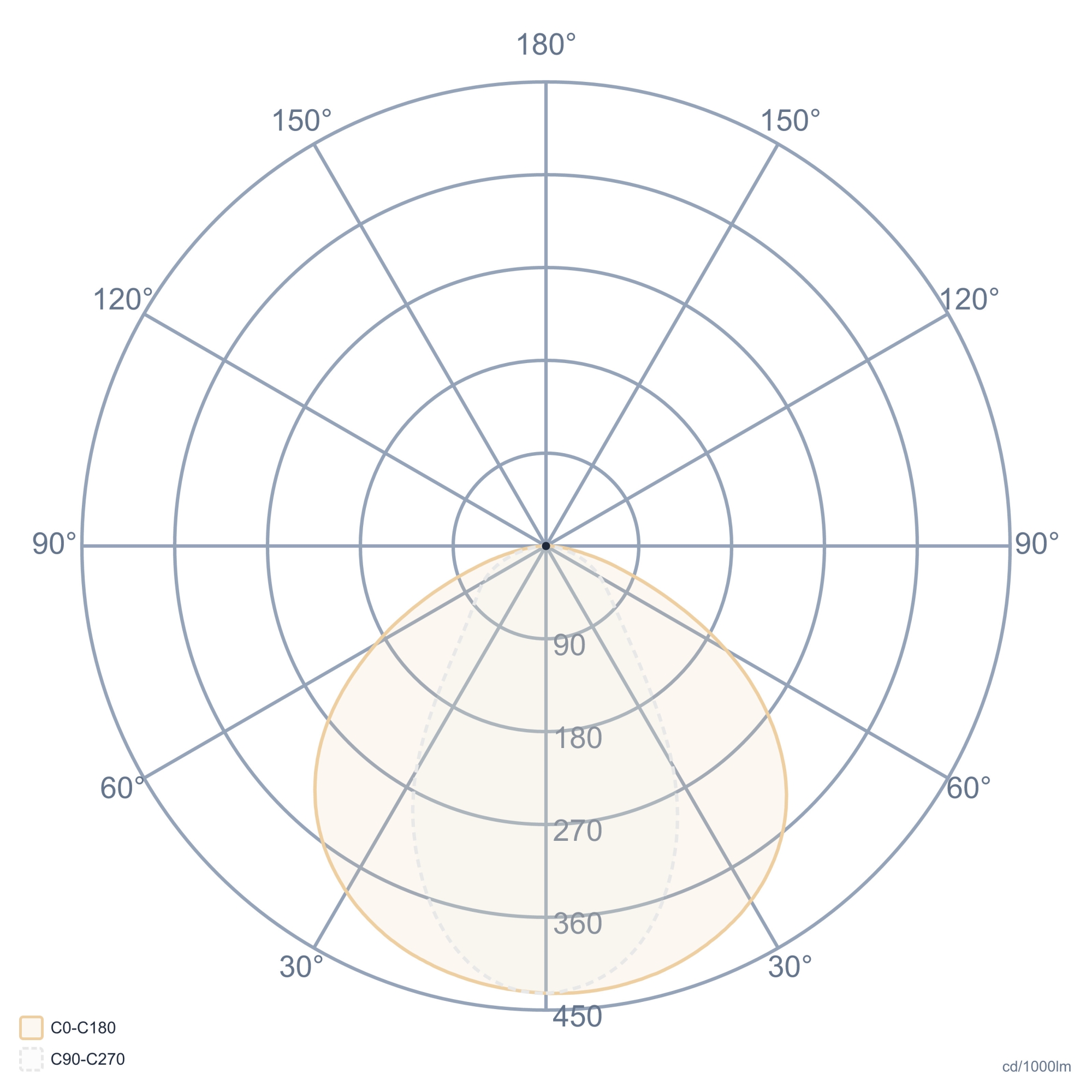

Light Output Angle

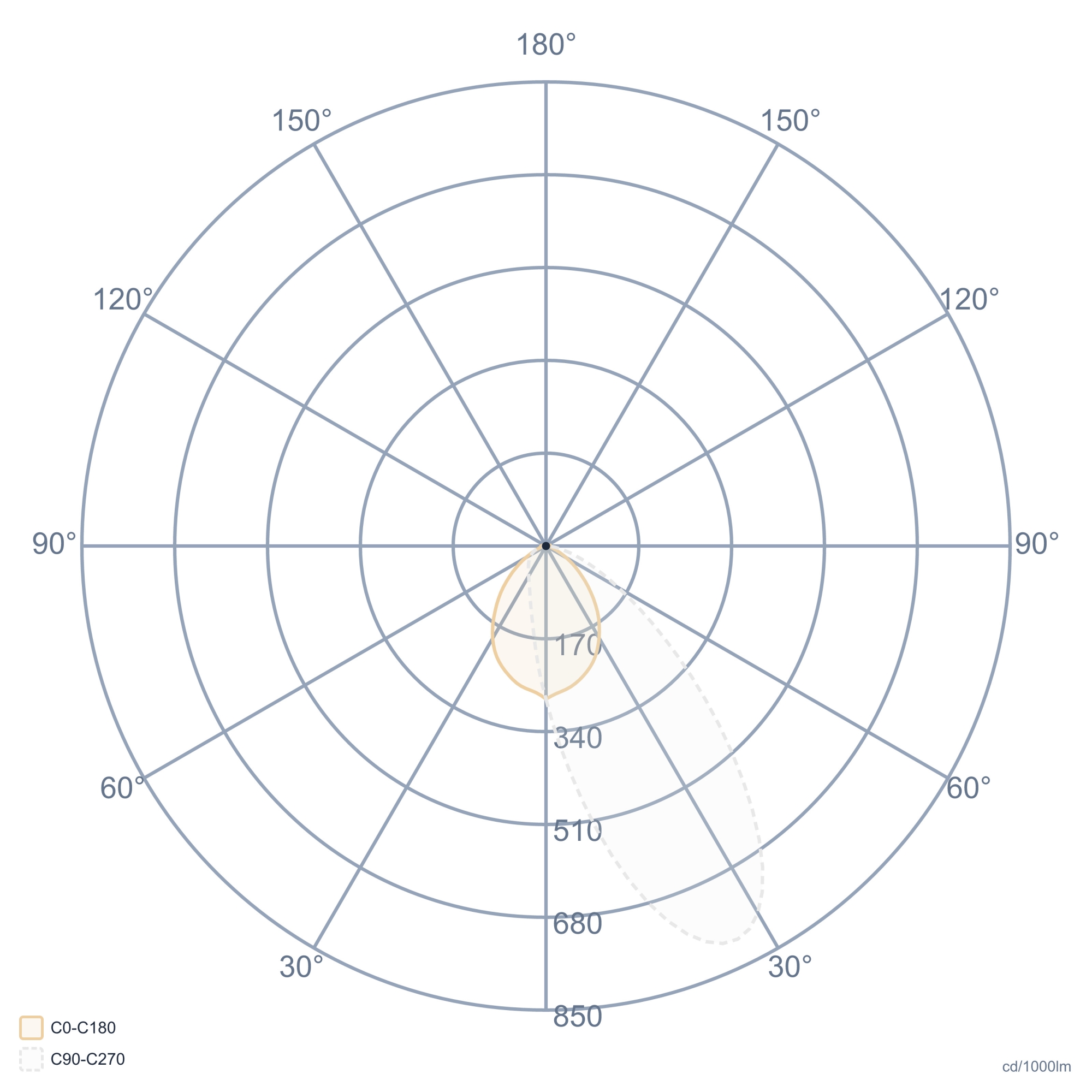

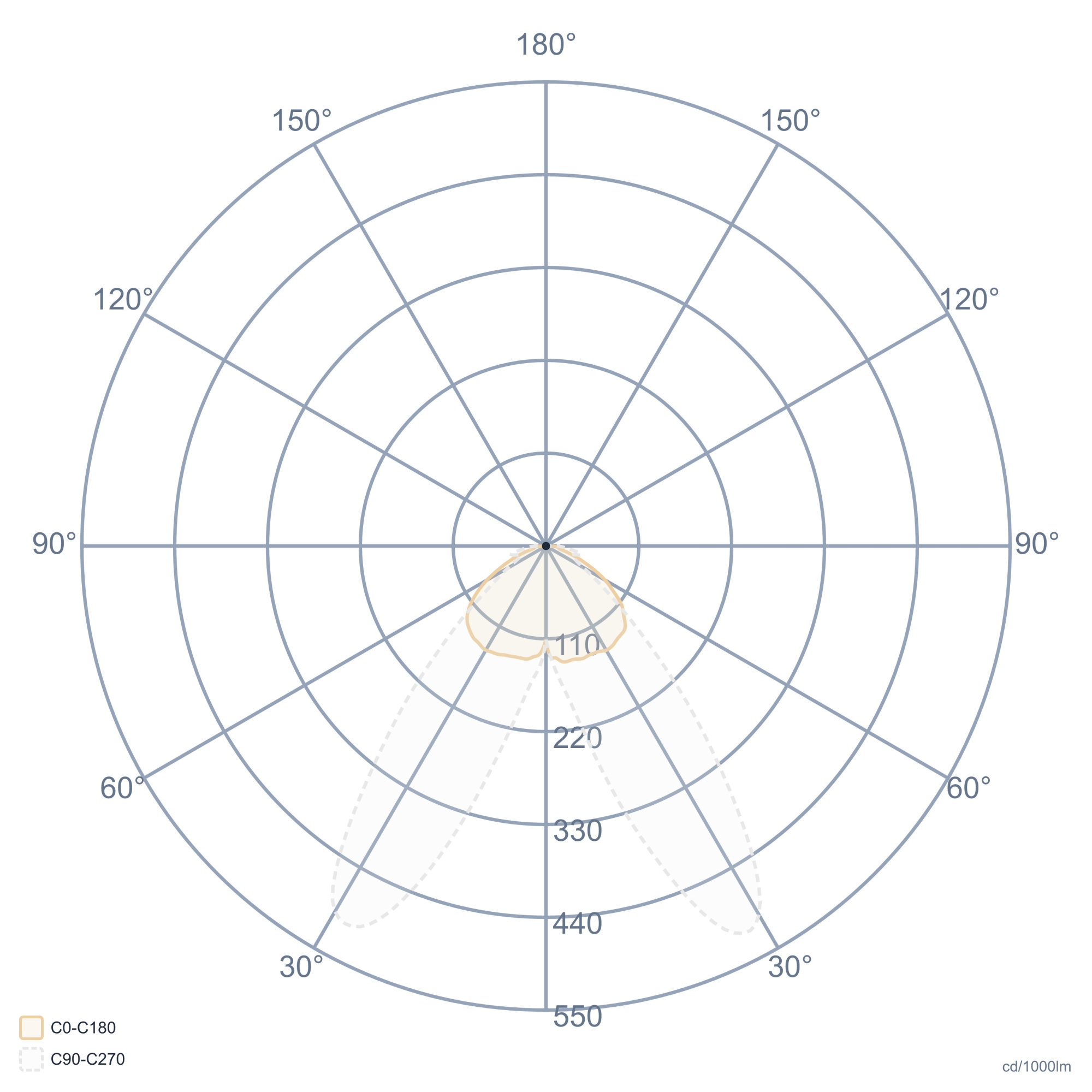

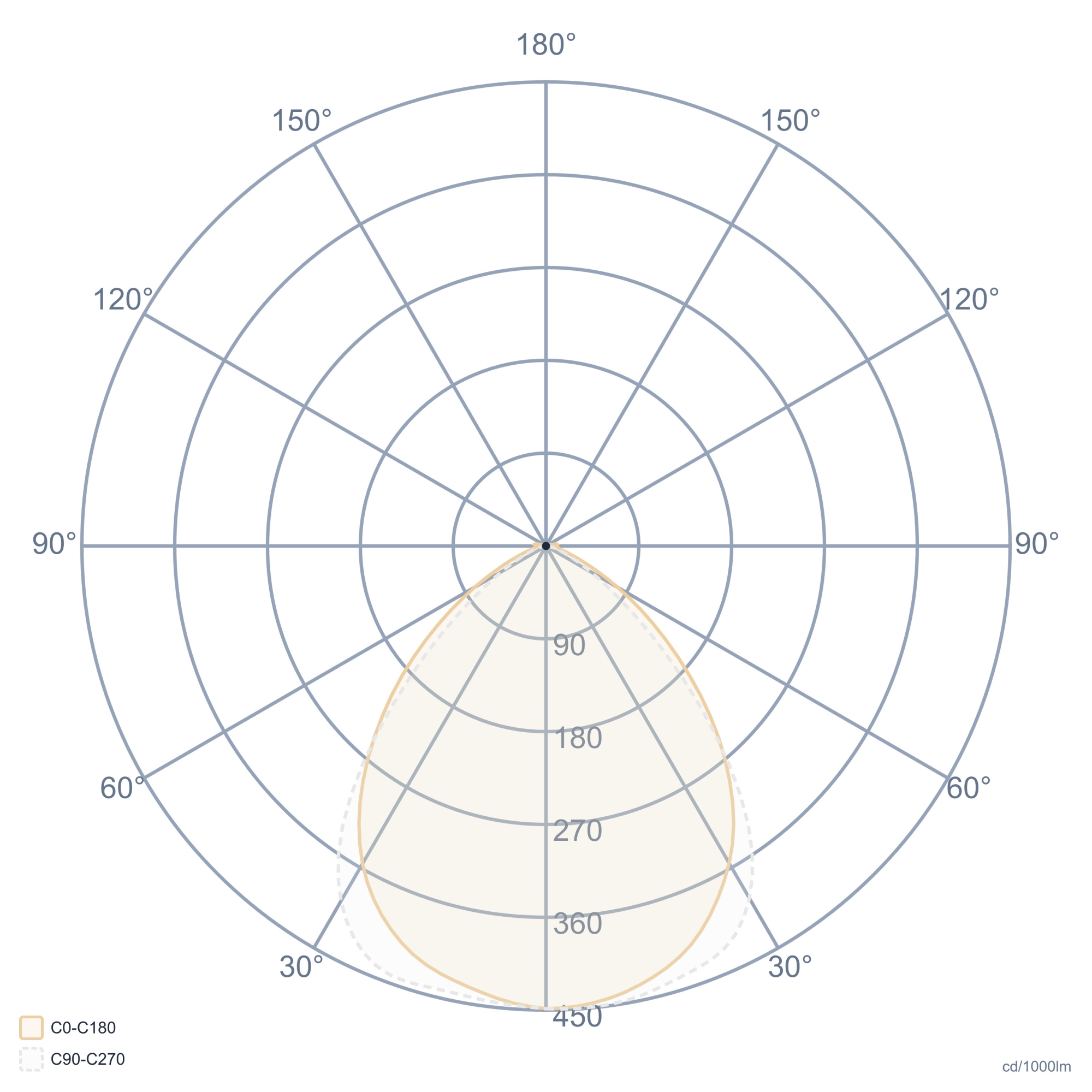

60°Sym / 90°Sym / 40°x100°Sym / 2x25°Asym
UGR Value
UGR ≤ 22
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Kit (1h/3h)

Order CodeWLmCCTAngleL (mm)KgTechnical PagePhotometric File
