BEAM-S
06602
Simple Form, Unidirectional Light

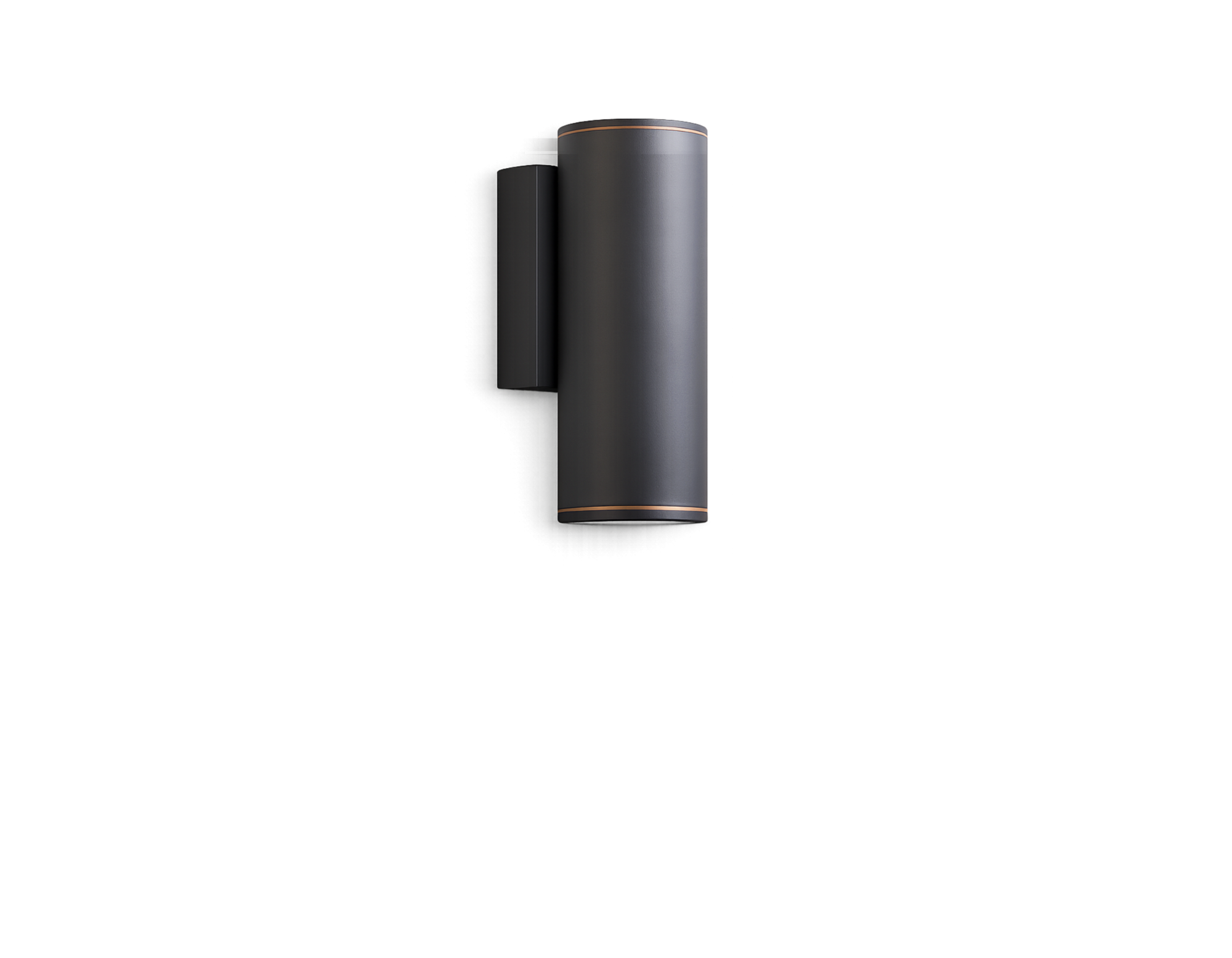

Beam-S is an outdoor LED wall sconce that can be mounted on wall surfaces. Its modern cylindrical design and simple appearance offer an aesthetic lighting solution that highlights architectural details in residential, hotel, commercial building, and landscape projects. Offering high light quality with COB LED technology, Beam-S provides long-lasting and reliable performance in challenging outdoor conditions thanks to its aluminum profile and injection molded body, electrostatically powder-coated surface, and IP65 protection class.

It creates accent lighting on facades, columns, entrances, landscape elements, and architectural surfaces. Available in black, white, and anthracite, it adapts to different architectural concepts, combining aesthetics and functionality.

Min-Max Watt:
8-12 [W]
Lumen:
660-970 [lm]
Lumen / Watt:
80 [lm/W]
Technical Documents
General Information
Housing
Cast Aluminum
Optics
Polished Reflector
Glass
Tempered, Clear Glass
Paint
Electrostatic Powder Coating
Insulation Class
Class I
Product Dimensions [mm]
Ø90x180(H)x135(L)
Mounting Type
Surface
Electrical Info
Power
8-12W
Power Factor
>0.95
Light Source
COB LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour

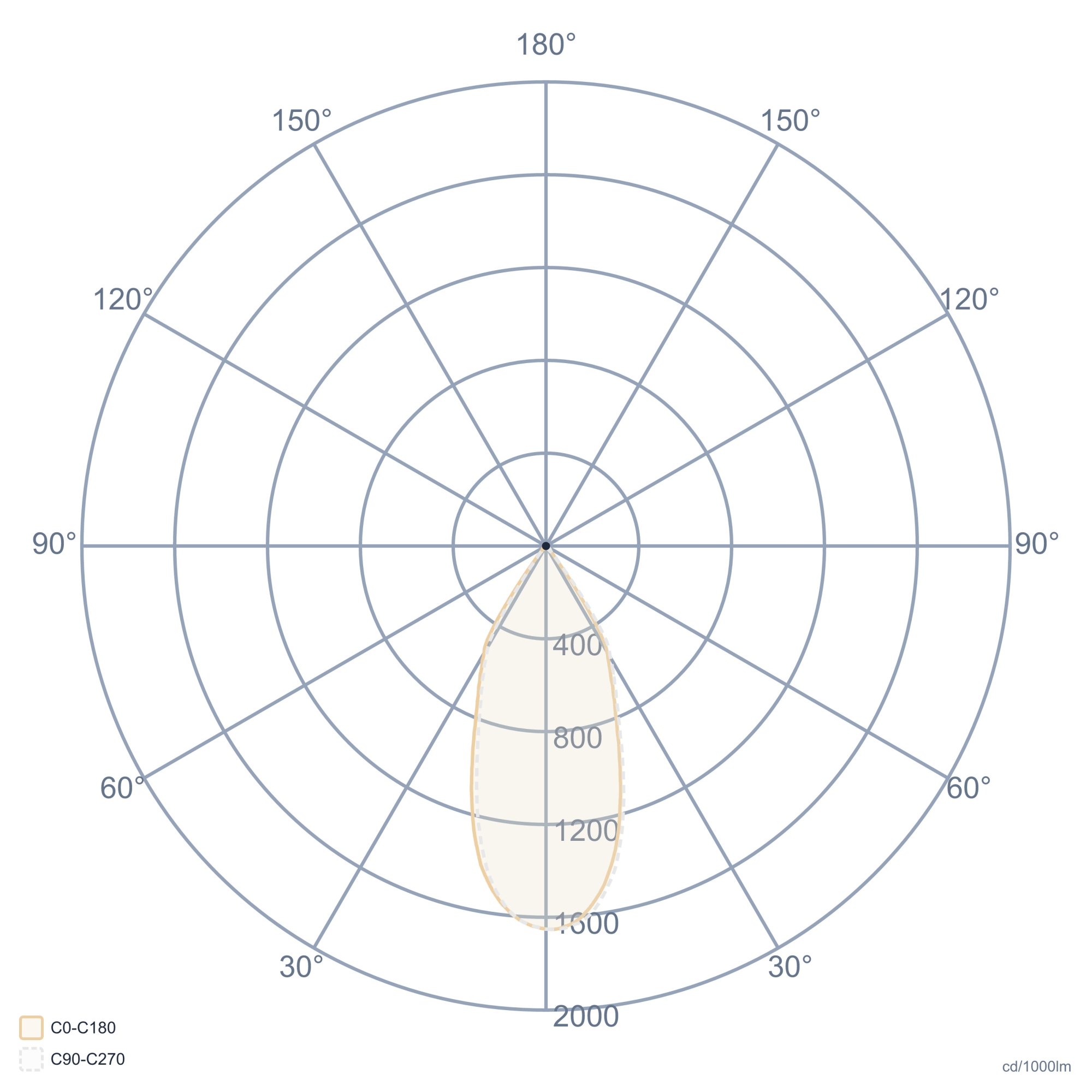

Lighting Technology
Light Output Angle
43°
UGR Value
UGR ≤ 25
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmCCTØxHxL (mm)KgTechnical PagePhotometric File
