TINY-T
05212
Trimless, Architecture-Friendly Minimal Spot Lighting

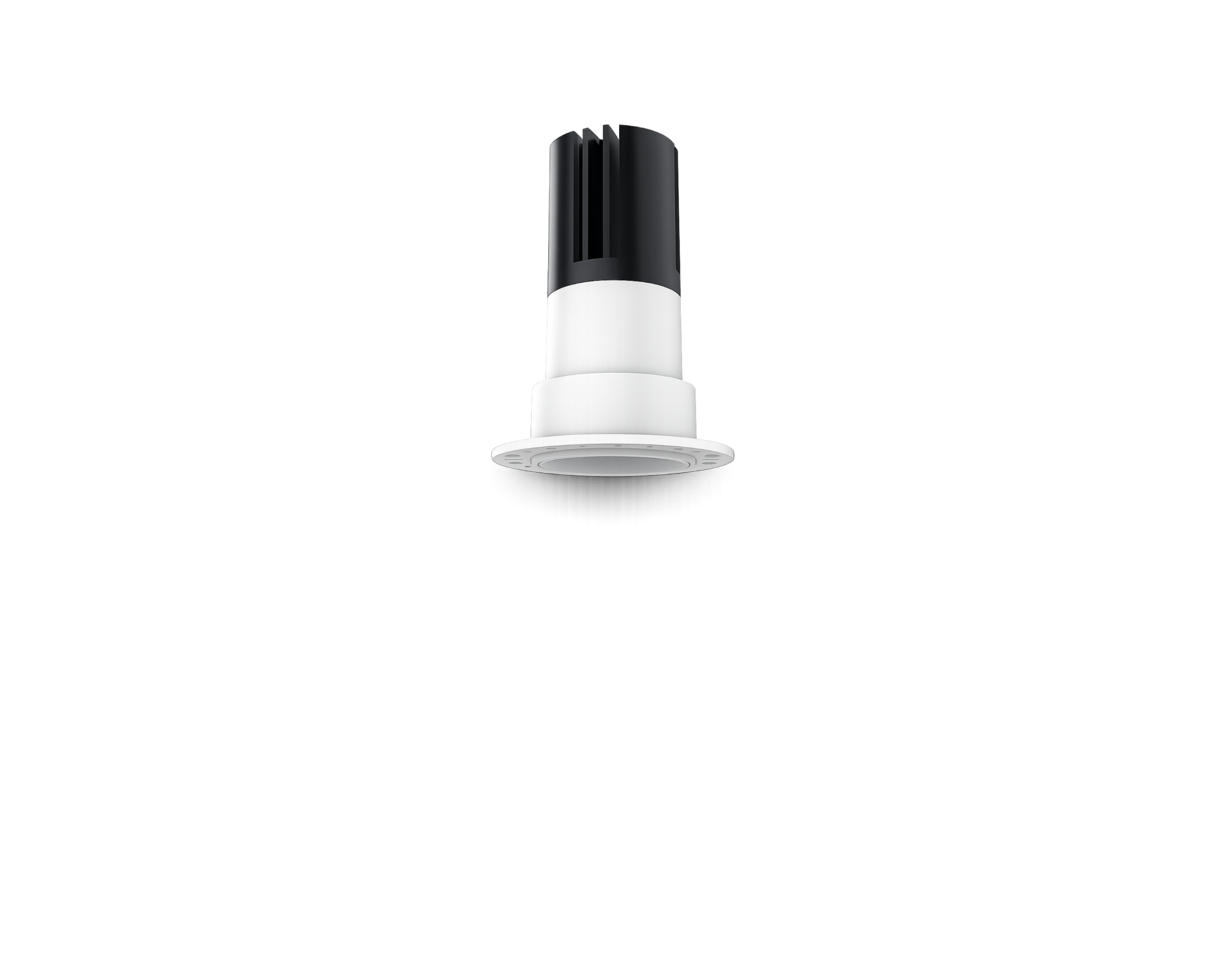

Tiny-T is an ultra-compact spotlight solution with a Ø46mm body diameter and trimless mounting structure, providing an almost invisible integration with the ceiling surface. Thanks to its frameless, plaster-free design, it seamlessly blends with the ceiling, allowing architectural details to stand out.

Despite its small size, it creates a powerful accent effect. Its aluminum body and efficient cooling system ensure long-lasting and reliable performance, while its minimalist design adds an aesthetic touch to modern interiors. It is developed for luxury residences, boutique shops, hotels, galleries, museums, and prestigious architectural projects. With trimless ceiling systems, it maintains a clean ceiling appearance and offers an elegant lighting experience where only the light is felt.

Min-Max Watt:
10 [W]
Lumen:
840 [lm]
Lumen / Watt:
84 [lm/W]
Technical Documents
General Information
Housing
Aluminum Injection
Frame
Aluminum Injection-Trimless
Optics
Polished Reflector + Lens
Paint
Electrostatic Powder Paint
Insulation Class
Class II

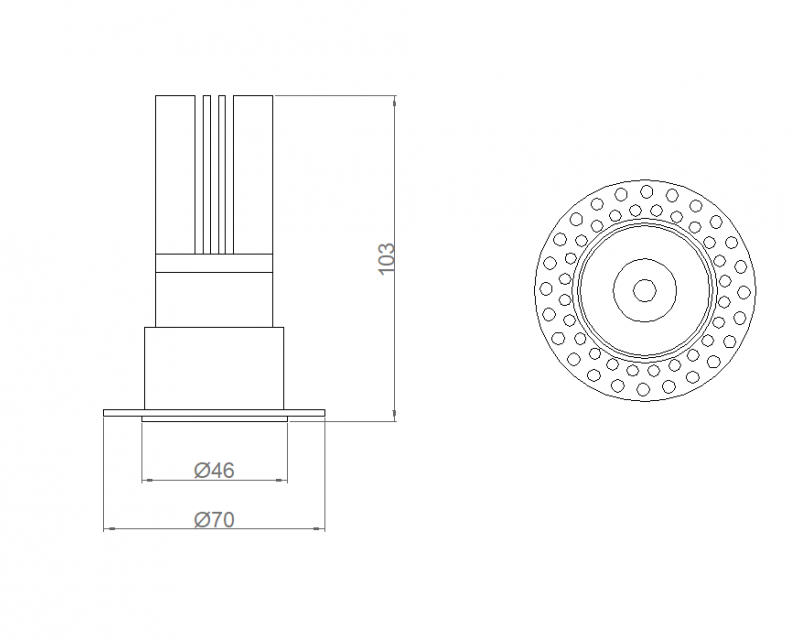

Product Dimensions [mm]
Ø46x105((H)
Mounting Type
Trimless and Recessed
Mounting Part
Trimless Frame
Electrical Info
Power
10W
Light Source
COB LED
Cabling
Halojen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Saat

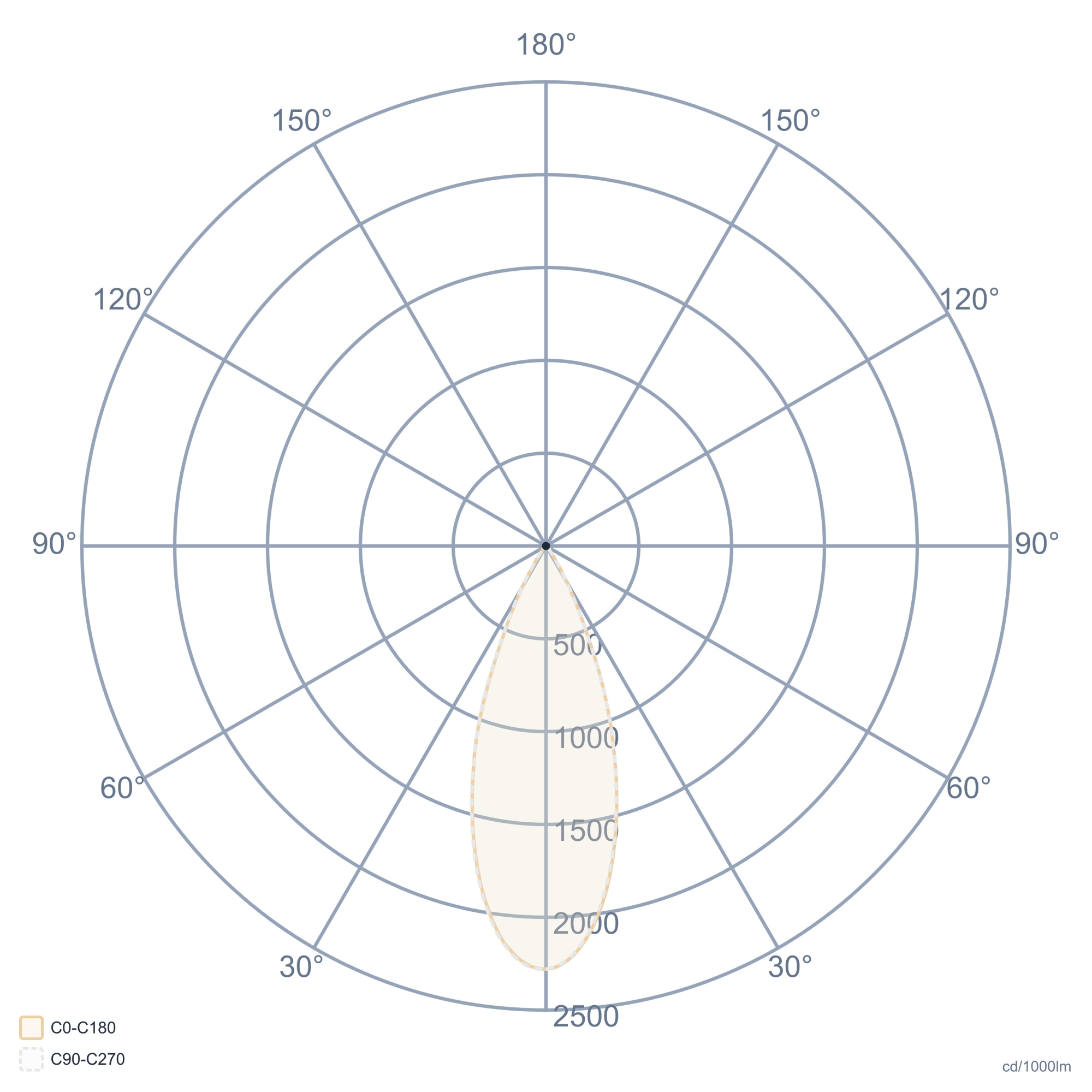

Lighting Technology
Light Output Angle
36°
UGR Value
UGR ≤ 19
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
2700K ~ 6500K
Lens Angle - 24°/ 28°
Plug-in Energy Input Connector

Order CodeWLmAngleCCTØDx(H)Cut-out dimensions (mm)KgTechnical PagePhotometric File
