DROP-T
05647

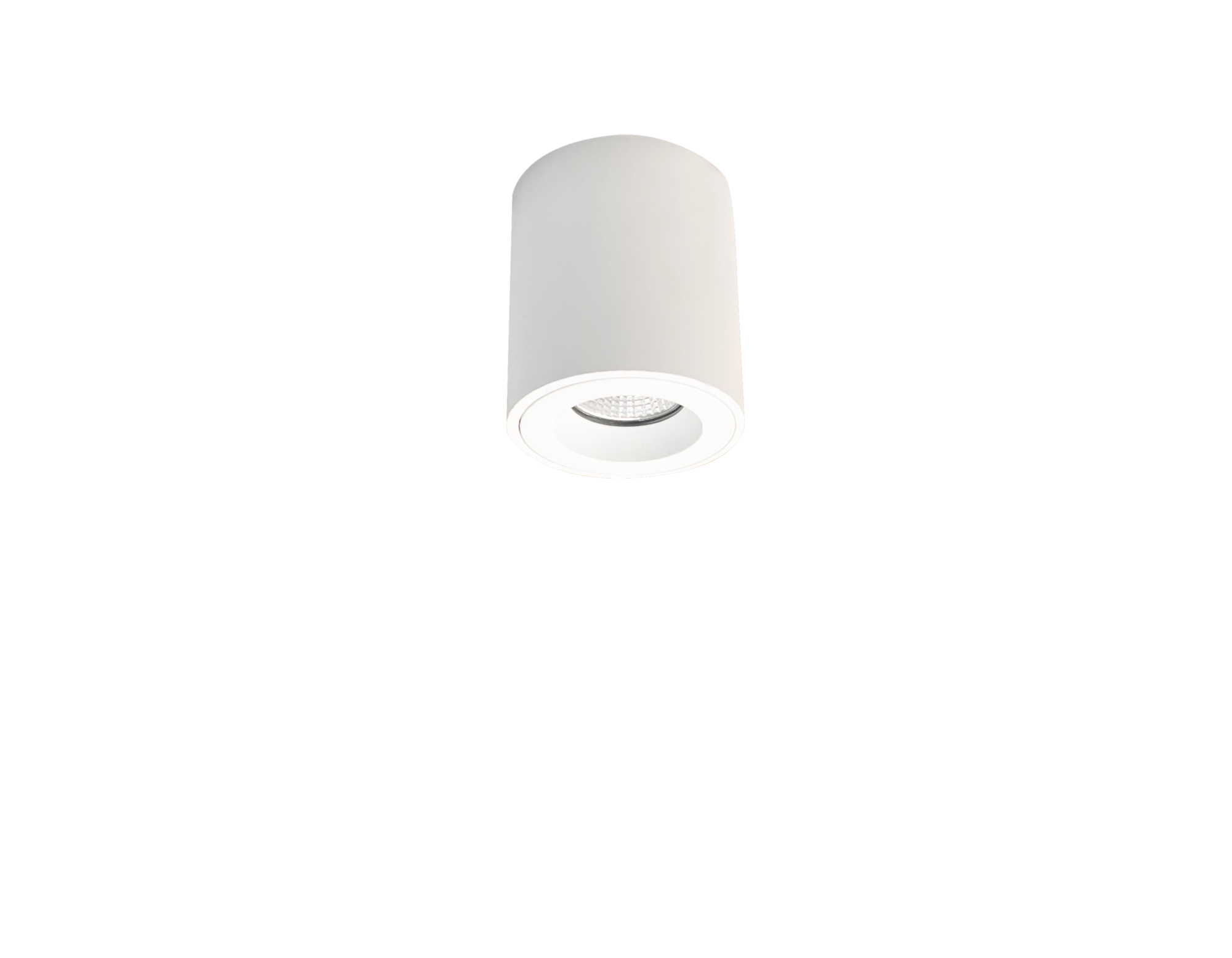

Cylindrical Surface Mounted Spot Lighting

Drop-T is designed for surface mounting. Its cylindrical form offers stylish accent lighting in modern architectural projects. It provides an aesthetic and practical solution for applications without suspended ceiling spaces, creating a simple and integrated look. Its aluminum body, frame, and metallized optical reflector ensure long-lasting and efficient use. The 36° light output angle allows for effective highlighting of specific areas.

It is an ideal solution for offices, shops, hotels, restaurants, residential projects, and social spaces. Its modern cylindrical design, high-quality materials, and balanced light performance combine decorative appeal with functionality.

Min-Max Watt:
11 [W]
Lumen:
1100 [lm]
Lumen / Watt:
110 [lm/W]
Technical Documents
General Information
Housing
Aluminum Extruded
Frame
Aluminum Injection
Optics
Polished Reflector + Glass
Paint
Electrostatic Powder Coating
Insulation Class
Class I

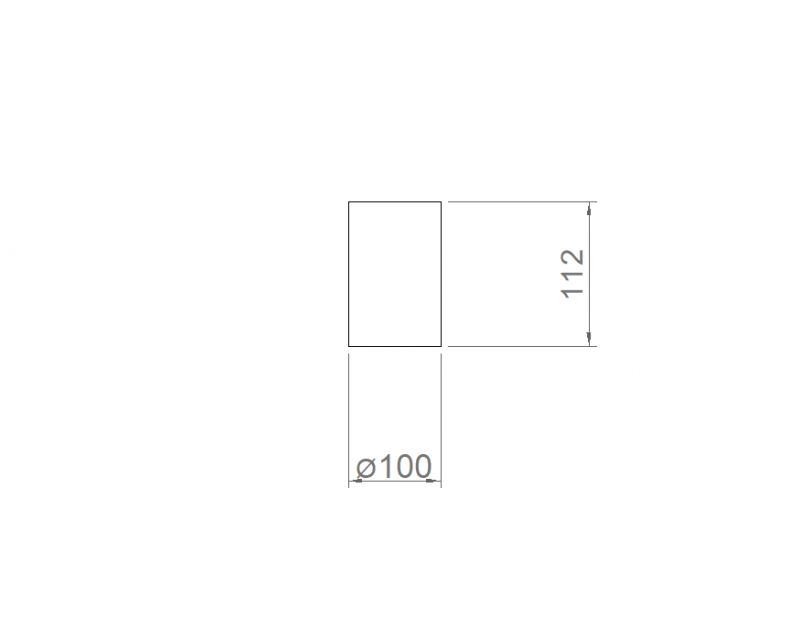

Product Dimensions [mm]
Ø100x112(H)
Mounting Type
Surface
Mounting Part
Screw Dowel Set
Electrical Info
Power
11W
Power Factor
>0.95
Light Source
COB LED
Cabling
Halojen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology

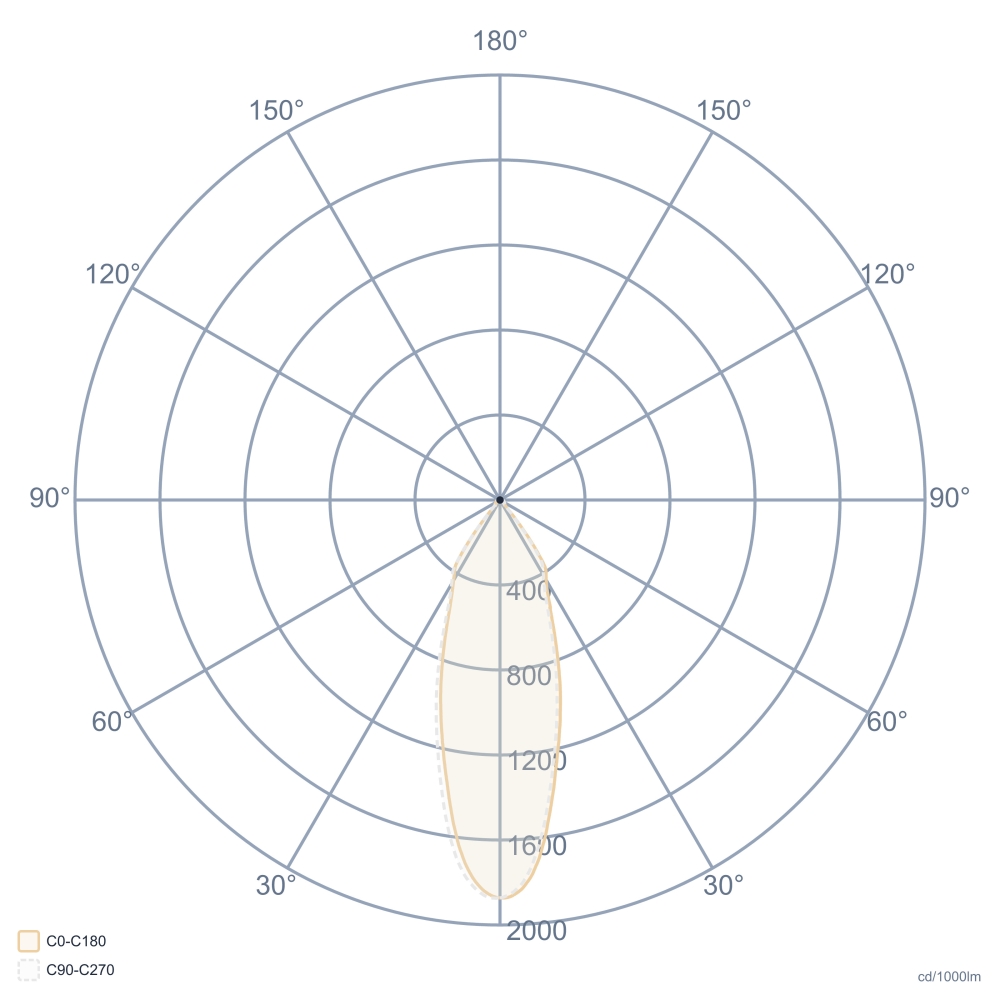

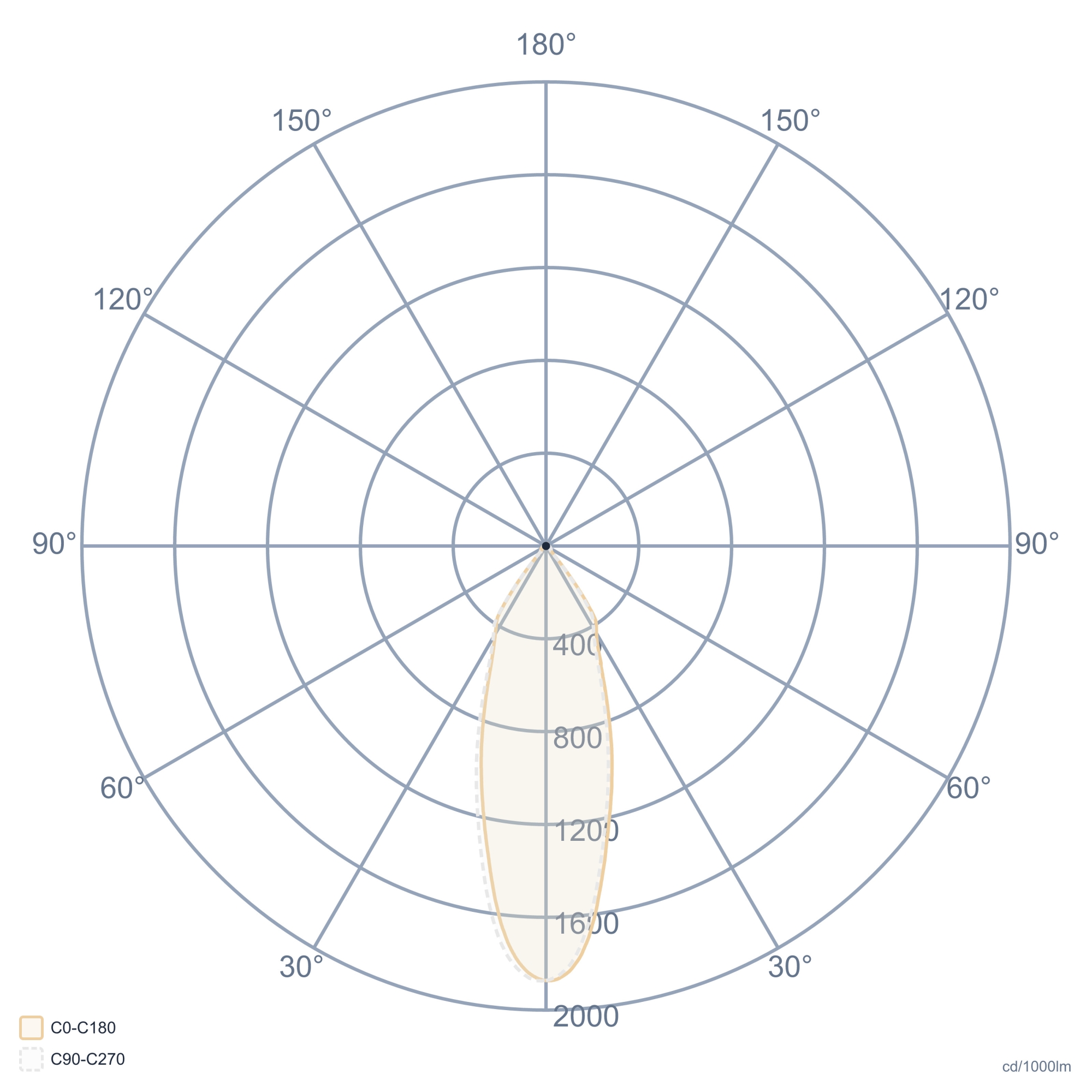

Light Output Angle
36°
UGR Value
UGR ≤ 22
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Kit

Order CodeWLmAngleCCTØD x H (mm)KgTechnical PagePhotometric File
