CELL
05324

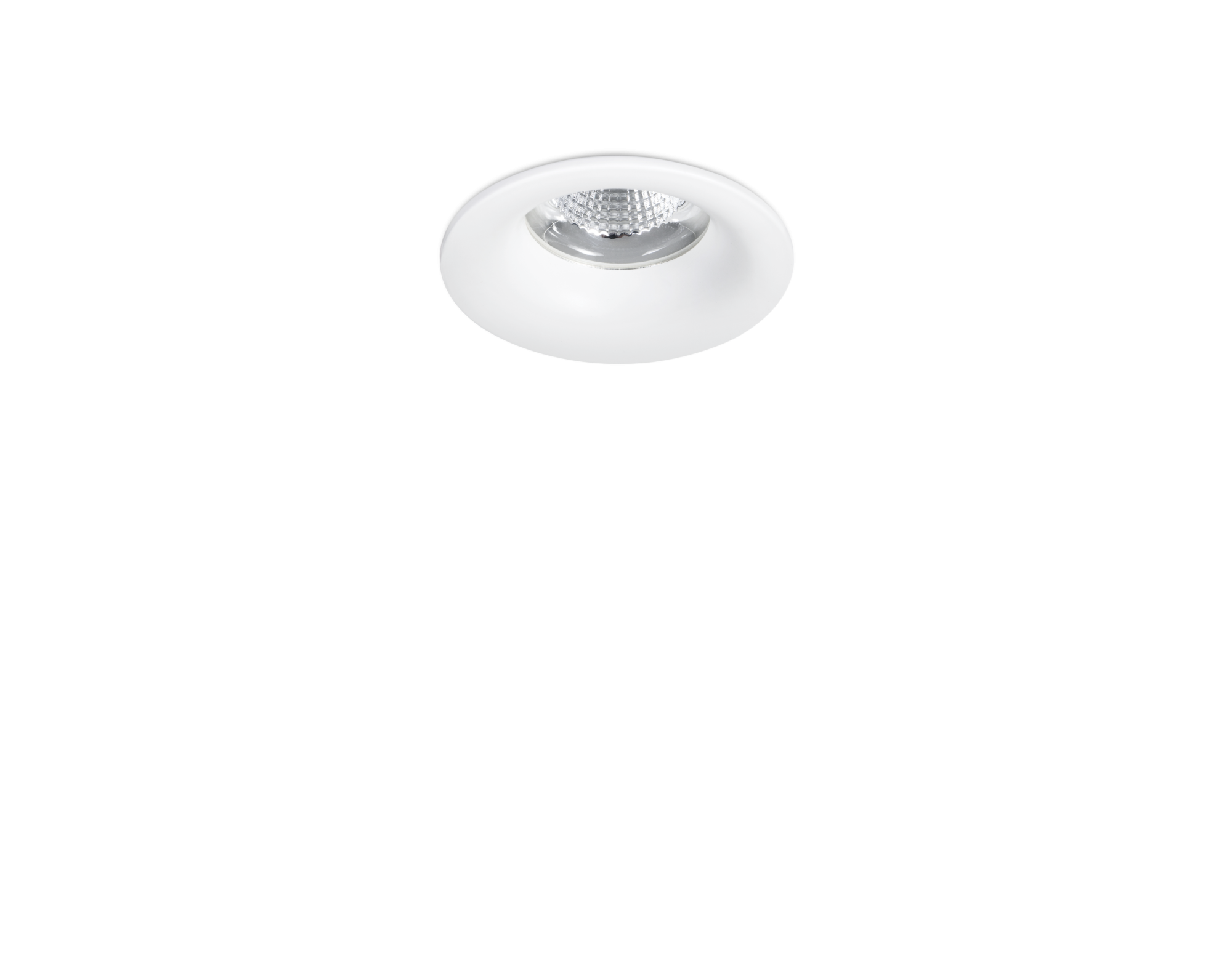

Cell is a spotlight luminaire developed for general and accent lighting applications, with its compact dimensions (Ø90mm-60mm height) and highly efficient optical structure. Thanks to its aluminum injection molded body and frame, it offers durable and long-lasting use.

The combination of metallized reflector, glass, and optics ensures controlled and efficient light direction. With a 35° light output angle and UGR≤19 value, it enhances visual comfort while creating balanced accent lighting. Its compact structure offers an aesthetic solution for narrow ceiling details and projects with a minimalist design approach. It is suitable for use in shops, hotels, offices, residential projects, corridors, and commercial areas.

Min-Max Watt:
7-11 [W]
Lumen:
840-1110 [lm]
Lumen / Watt:
102 [lm/W]
Technical Documents
General Information
Meterial
Aluminum Injection
Frame
Aluminum Injection
Reflector
Metallized Surface Reflector + Glass Optics
Paint
Electrostatic Powder Coating
Insulation Class
Class II

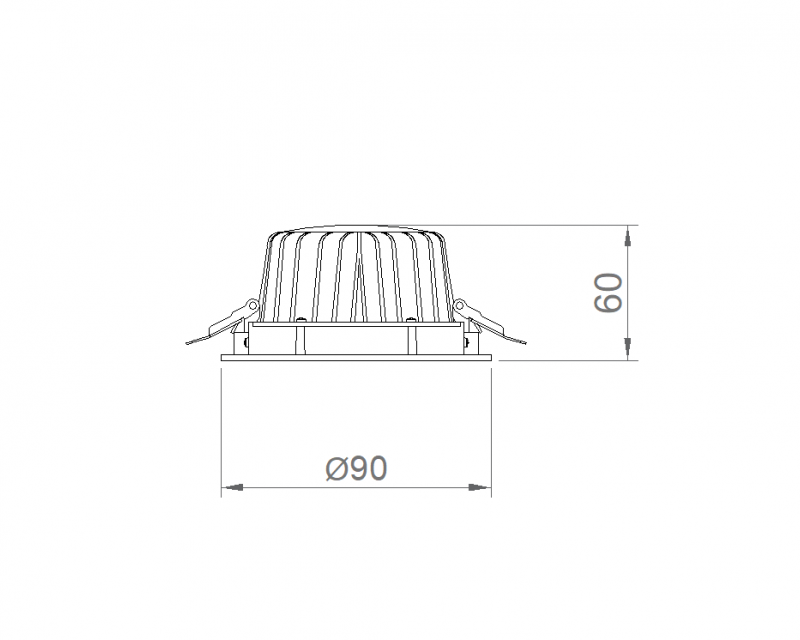

Product Dimensions [mm]
Ø90x60(H)
Mounting Type
Recessed
Mounting Part
Steel Spring
Electrical Info
Power
7-11W
Power Factor
>0.95
Light Source
COB LED
Cabling
Halojen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology
Optics
Symmetrical

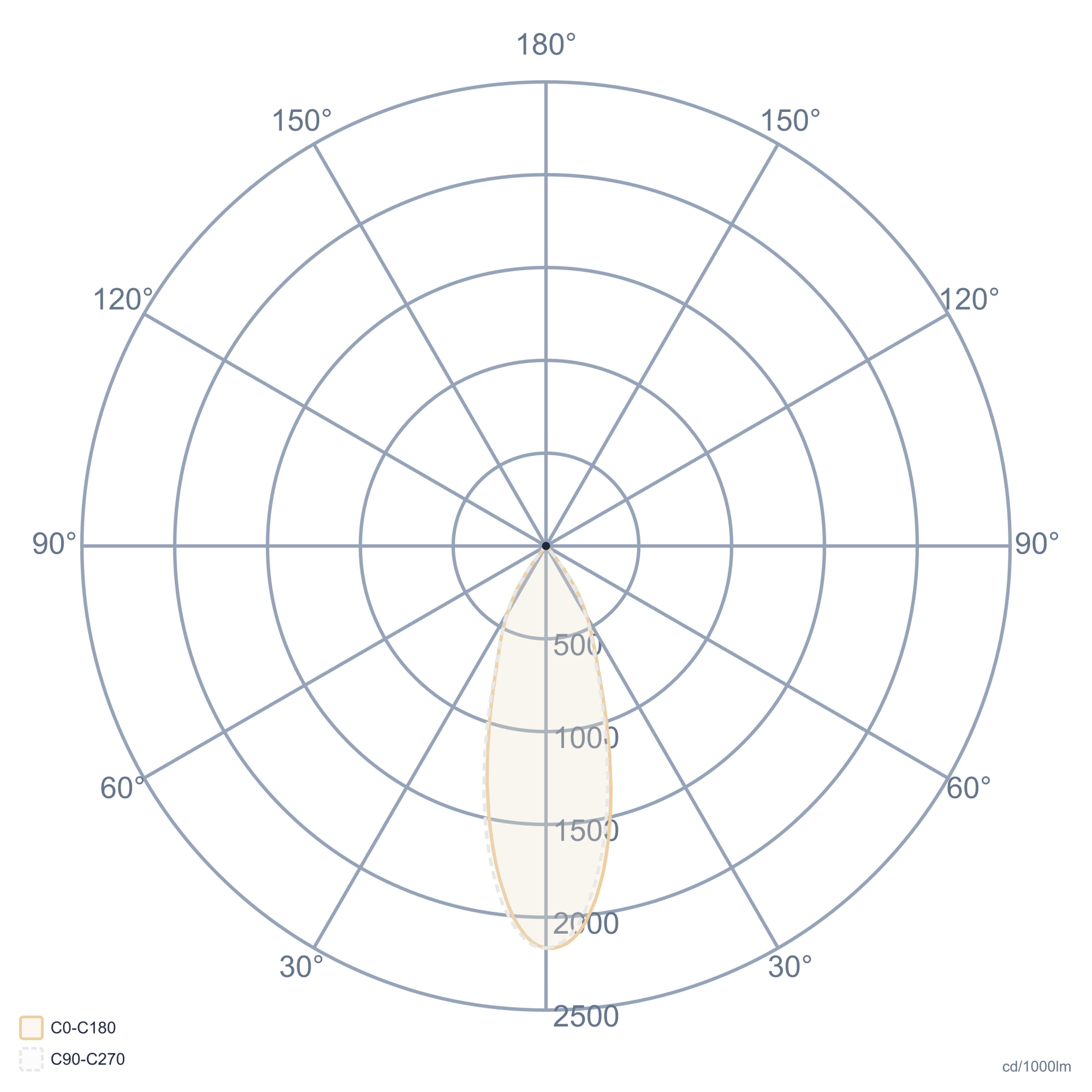

Light Output Angle
35°
UGR Value
UGR ≤ 19
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
Tunable White
Emergency Lighting Unit
CRI>90 , 2700K~6500K , Tunable White
2700K ~ 6500K

Order CodeWLmAngleCCTØD x H (mm)Ceiling Cutting (mm)KgTechnical PagePhotometric File
