SPIDER

02118

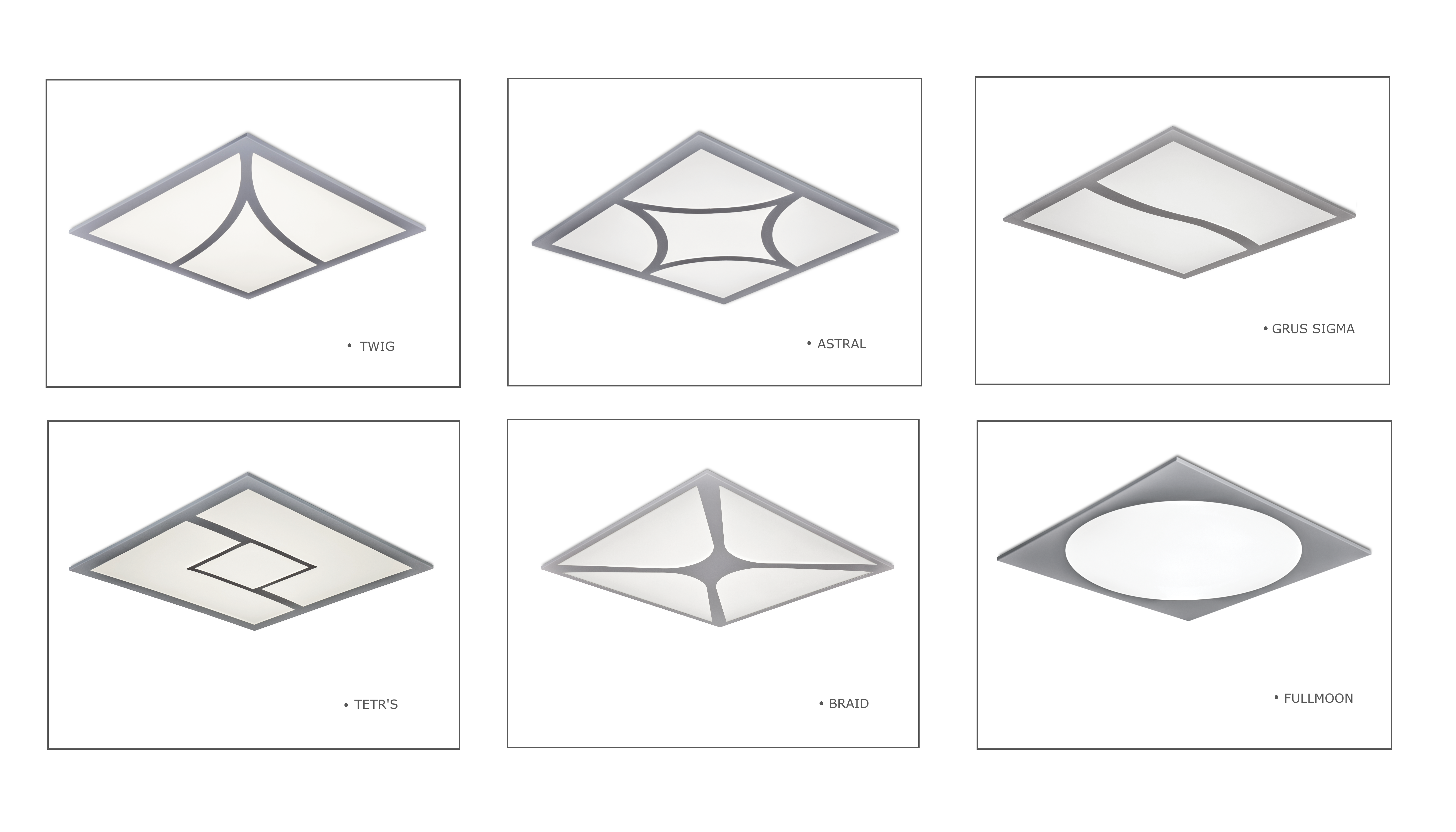

Custom Designed 60x60 Decorative Panel

Min-Max Watt:

28 [W]

Lumen:

2430 [lm]

Lumen / Watt:

90 [lm/W]

Technical Documents

Technical Page

Photometric File

General Information

Body & Frame

DKP Metal Sheet

Optics

Opal Diffuser

Paint

Electrostatic Powder Paint

Insulation Class

Class I

Product Dimensions [mm]

595(W) x 595(L) x 65(H)

Mounting Type

Recessed

Mounting Part

Steel Spring

Electrical Info

Power

28W

Power Factor

>0.95

Light Source

SMD Mid Power LED

Cabling

Halogen-Free

Input Voltage

220-240V AC / 50-60 Hz

LED Driver

Constant Current

Ambient Temperature

-20°C / +50°C

LED Lifetime L70

>50.000 Hour

Lighting Technology

Light Output Angle

110°

UGR Value

UGR ≤ 22

CRI [Ra]

CRI ≥ 80

Color Bin Value

Mc Adams ≤ 3

Optional

DALI / 1-10V

CRI>90 , 2700K~6500K , Tunable White

Emergency Lighting Unit

Order Code	W	Lm	Lm	CRI	WxLxH (mm)	Ceiling Cutting (mm)	Kg	Technical Page	Photometric File
