U-LINE 01136
01136
Architectural Direct/Indirect Pendant Lighting Luminaire

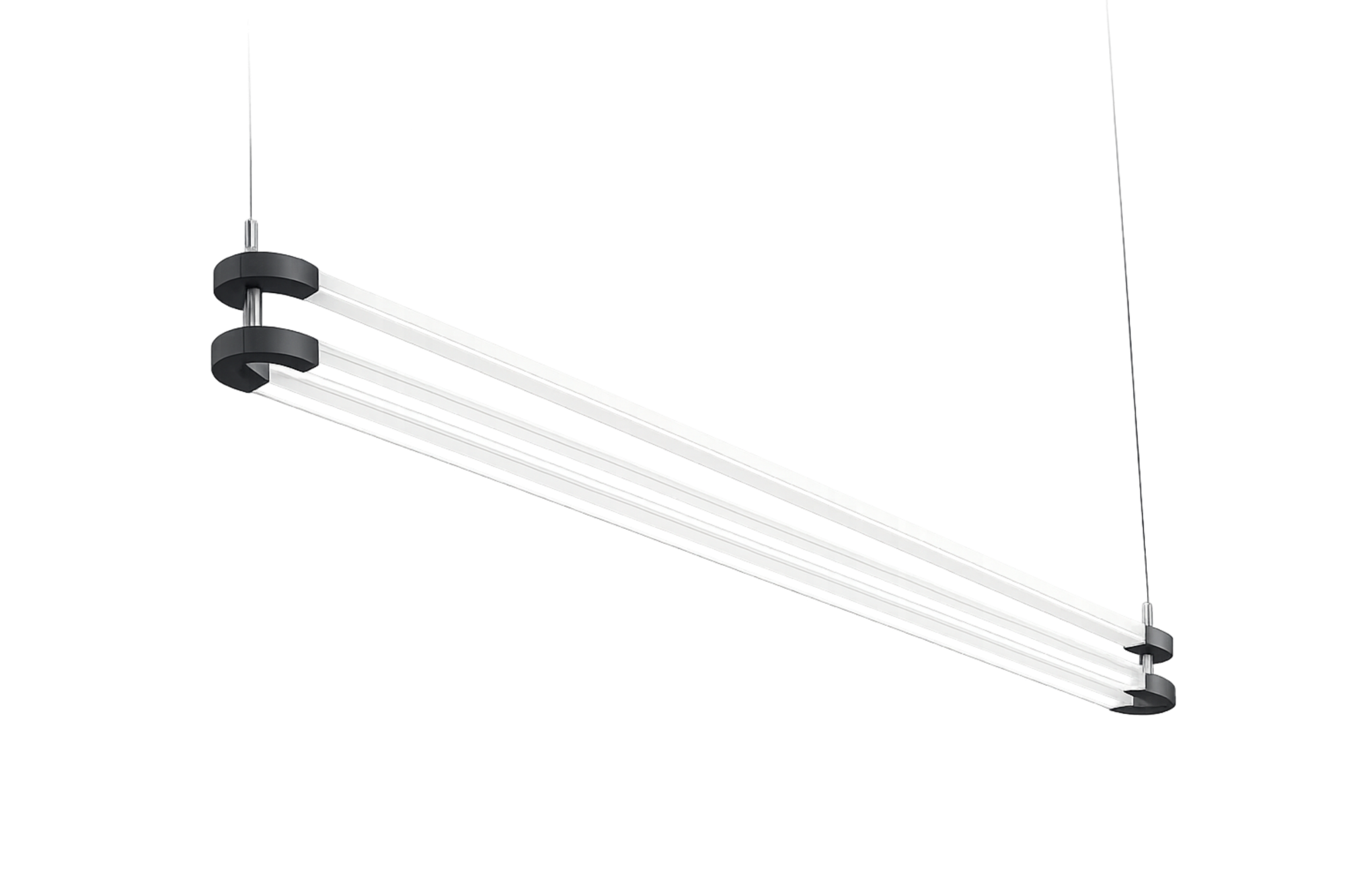

The U-Line Series offers a decorative and modern lighting solution with its open form and unique design language. Its U-shaped structure creates a light and architectural look in the space, while providing balanced lighting by combining direct and indirect light effects.

With its anodized aluminum body and simple design details, it adds an aesthetic character to contemporary projects. It stands out as a strong design element in office, commercial, and social areas. It adapts to specific lighting scenarios, offering both functional and decorative lighting.


Min-Max Watt:
72 [W]
Lumen:
7400 [lm]
Lumen / Watt:
100 [lm/W]
Technical Documents
General Information
Meterial
Aluminum Anodized
Optics
Opal Diffuser
Paint
Electrostatic Powder Painted
Insulation Class
Class I

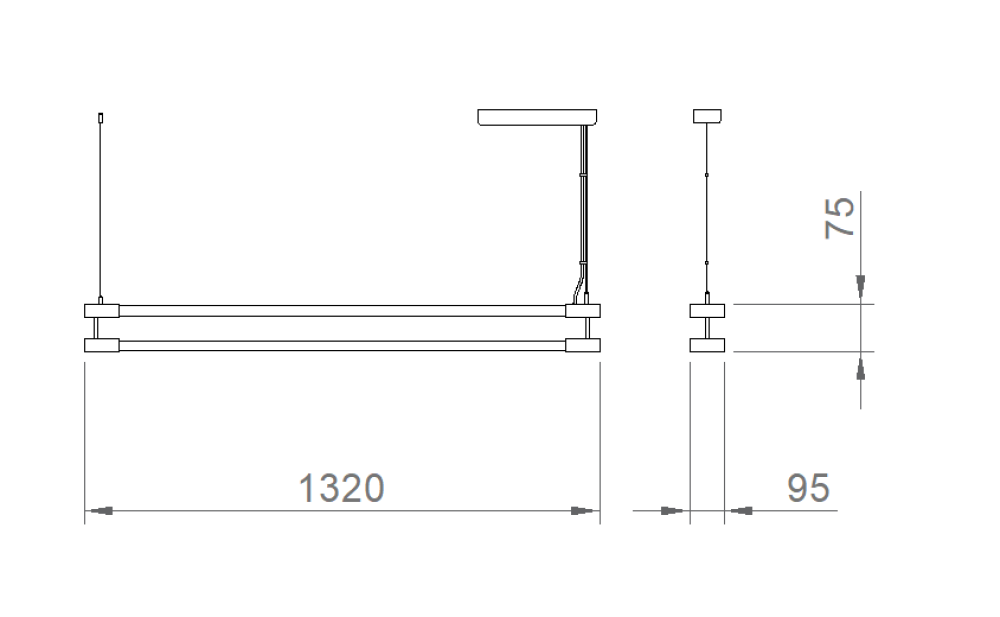

Product Dimensions [mm]
95(W) x 75(H)
Mounting Type
Pendant
Mounting Part
Height Adjustable Hanging Wire
Electrical Info
Power
72W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology

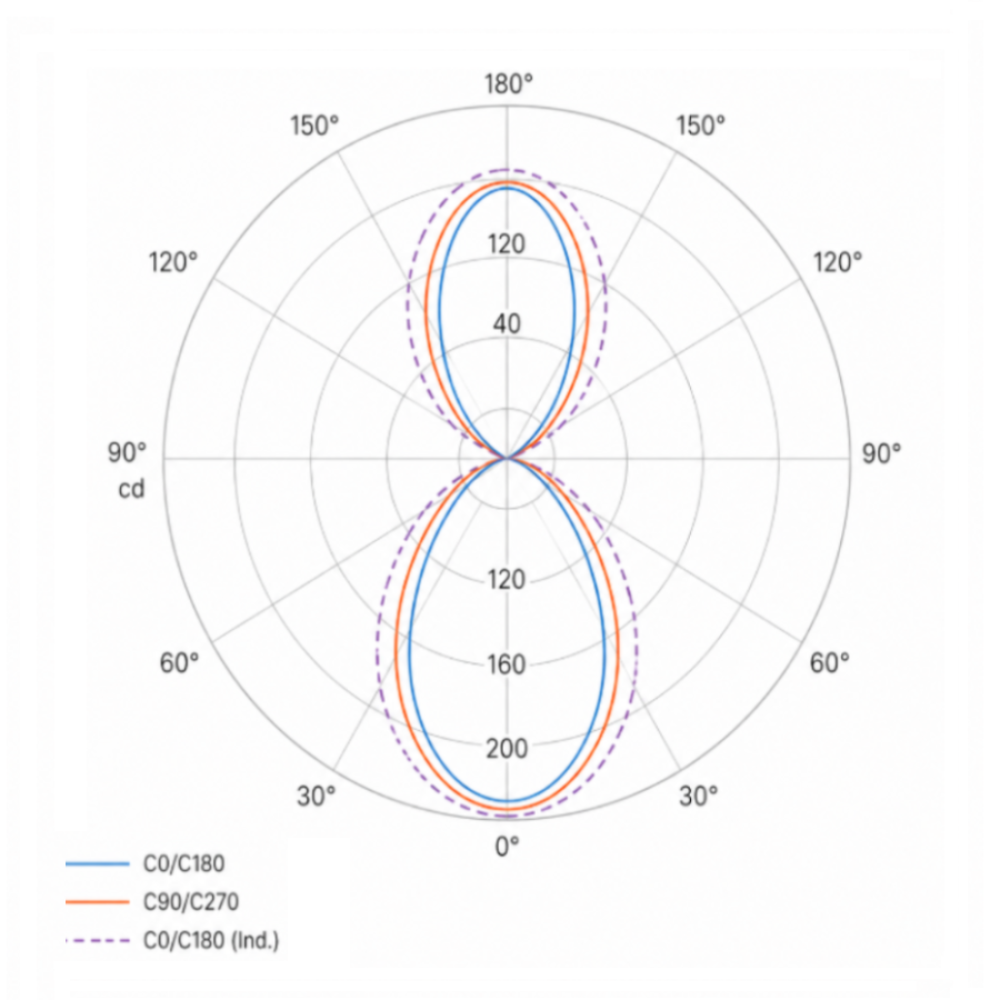

Light Output Angle
120° (Direct/Indirect)
UGR Value
UGR ≤ 22
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmCCTL (mm)KgDirectIndirectTechnical PagePhotometric File
