ANGEL
01140

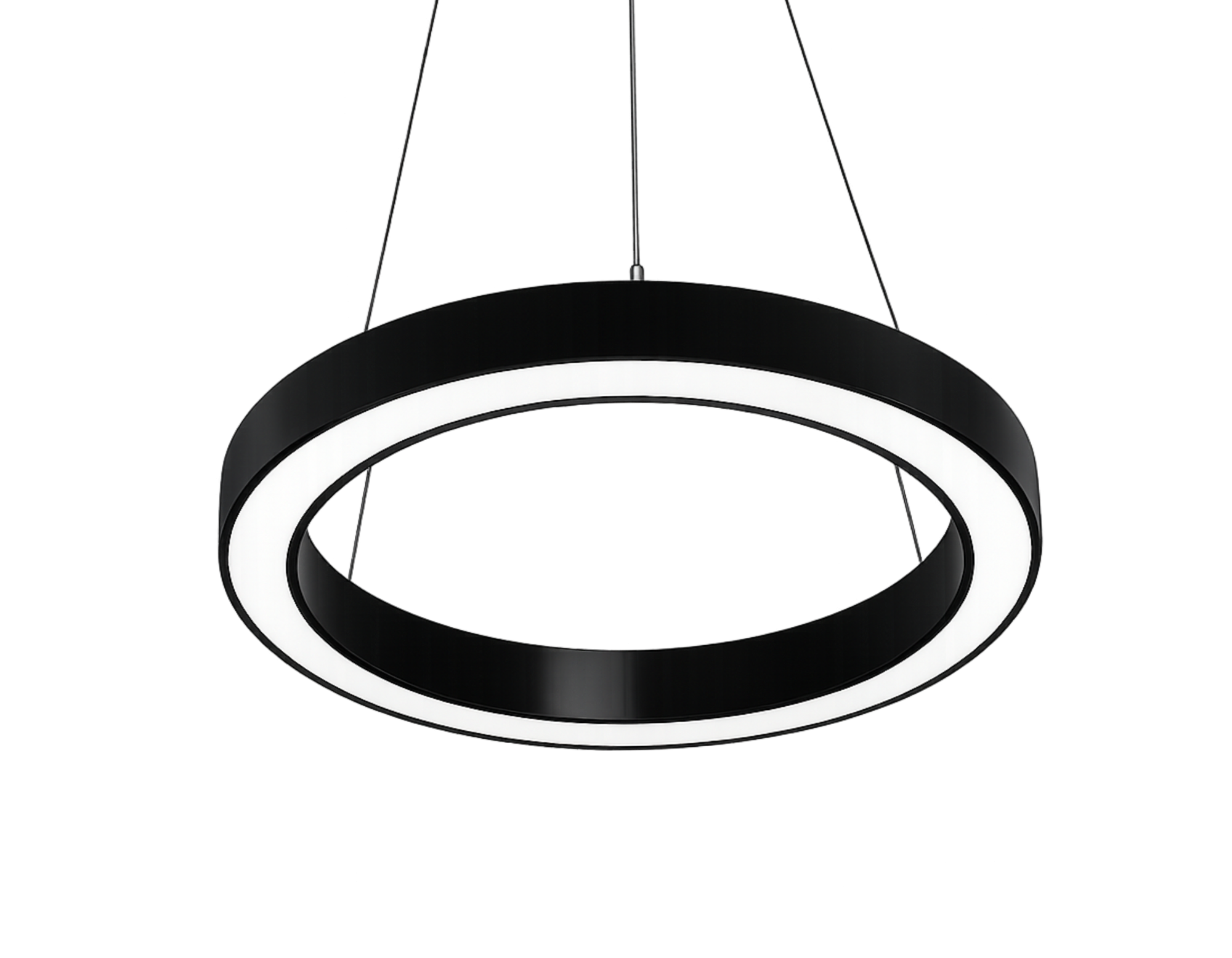

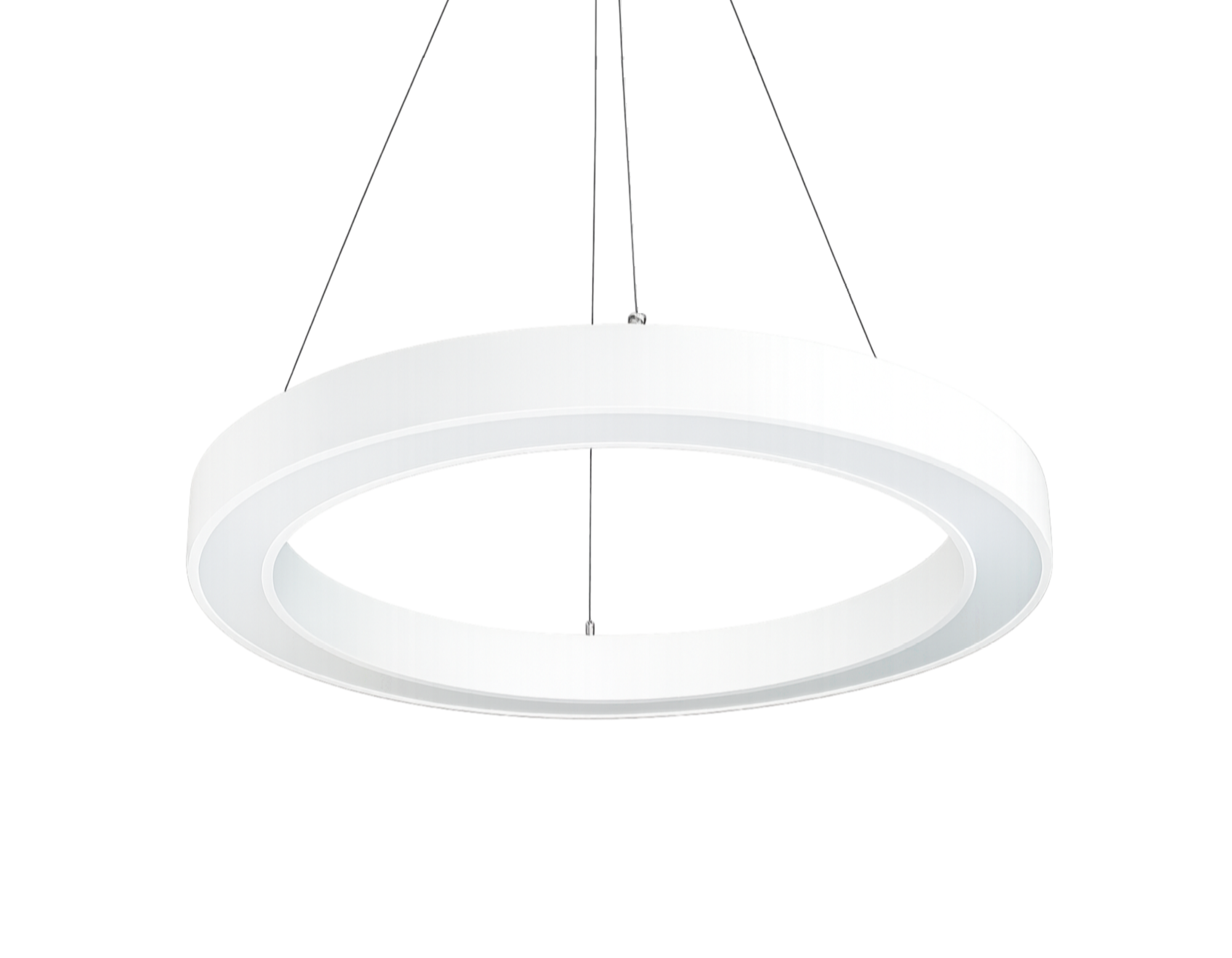

Architectural Circular Pendant Lighting Luminaire

The ANGEL Series creates a light and modern look in any space with its hollow ring form and simple design language. Thanks to its circular structure that provides homogeneous light distribution, it offers decorative and comfortable lighting, while standing out as a strong design element in architectural projects.

With its aluminum body and slim profile details, ANGEL offers a minimalist aesthetic, adapting to contemporary spatial arrangements in offices, social areas, and commercial projects. With its pendant mounting structure, different diameter options, and control alternatives, custom lighting scenarios can be created for each project.


Min-Max Watt:
40-120 [W]
Lumen:
3200-10870 [lm]
Lumen / Watt:
90 [lm/W]
Technical Documents
General Information
Meterial
Aluminum Extruded
Optics
Opal Diffuser
Paint
Electrostatic Powder Paint
Insulation Class
Class I

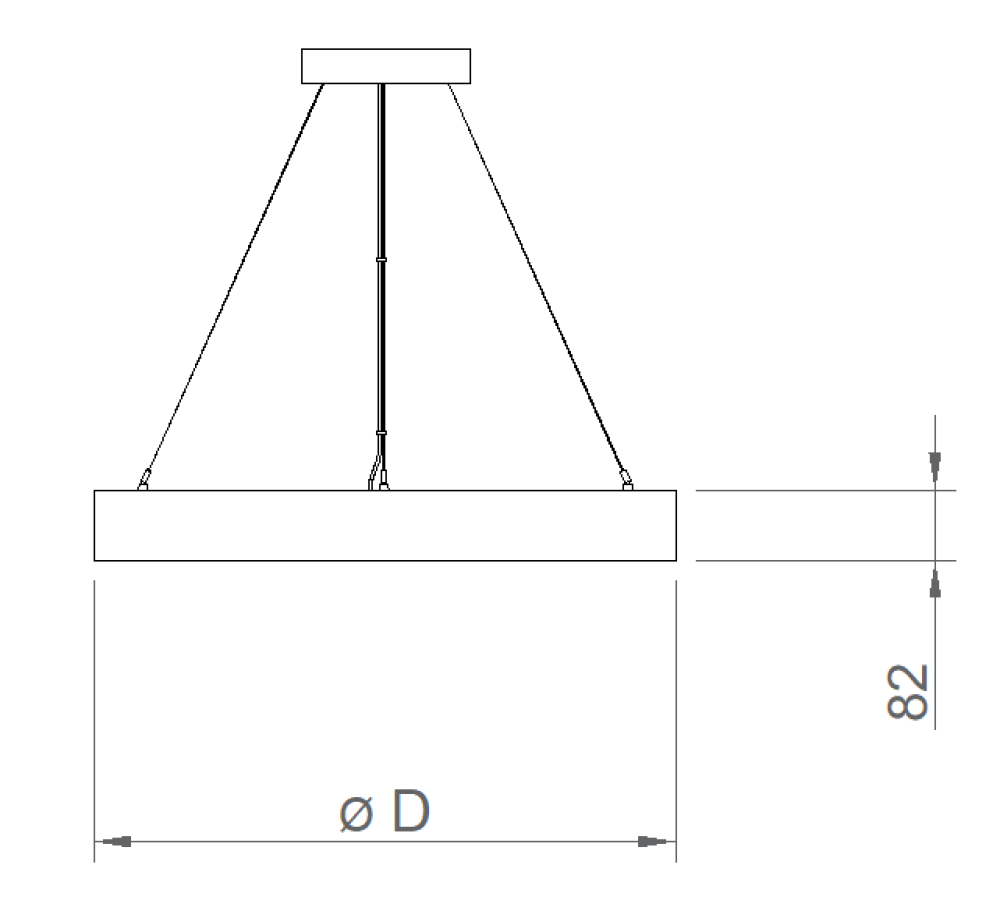

Product Dimensions [mm]
Ø600/900/1200x82(H)
Mounting Type
Pendant
Mounting Part
Height Adjustable Steel Wire
Electrical Info
Power
40-120W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology
Light Output Angle
120°
UGR Value
UGR ≤ 22
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmCCTØD x H (mm)KgTechnical PagePhotometric File
