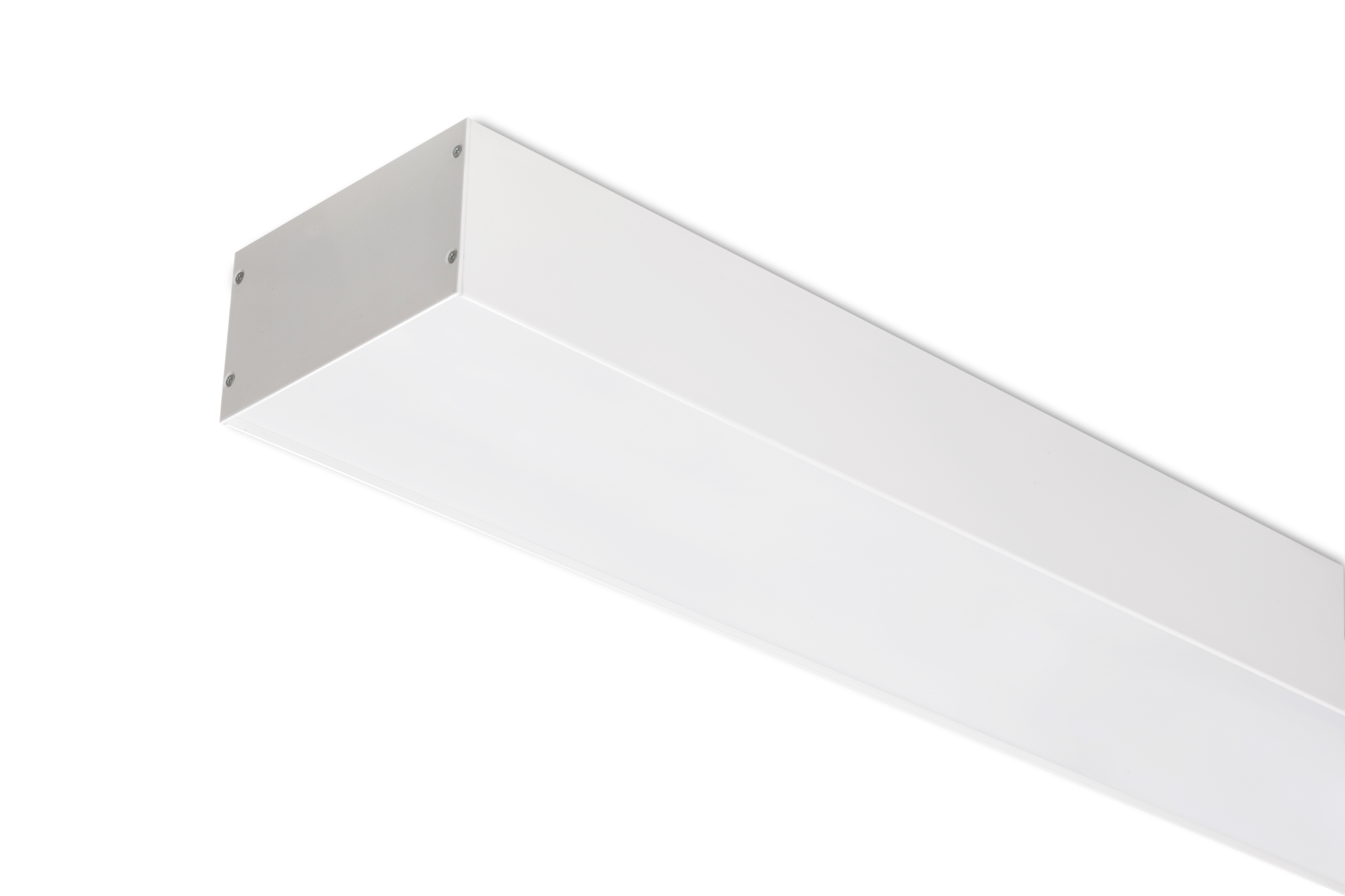

LIGHTLINE 150
01180
Indoor Surface Mounted Linear Luminaire

Lightline 150 Series, with its 150 mm wide profile structure, creates a powerful lighting effect and a strong architectural emphasis in large-scale spaces. Its opal diffuser provides homogeneous light distribution and a wide illuminated surface, delivering a fuller and more distinctive linear lighting effect within the space.

With its aluminum body and wide profile design, Lightline 150 stands out as a strong design element, especially in modern office, commercial and architectural projects. Offering various color temperature and control options, the Lightline 150 Series adapts to project-specific lighting scenarios, while its suspended and surface-mounted installation alternatives provide flexible solutions for different application needs.

Min-Max Watt:
39-45 [W]
Lumen:
3860-4670 [lm]
Lumen / Watt:
100 [lm/W]
Technical Documents
General Information
Housing
Aluminum Extruded
Side Cover
Metal Cover
Optics
Opal Diffuser
Paint
Electrostatic Powder Paint
Insulation Class
Class I

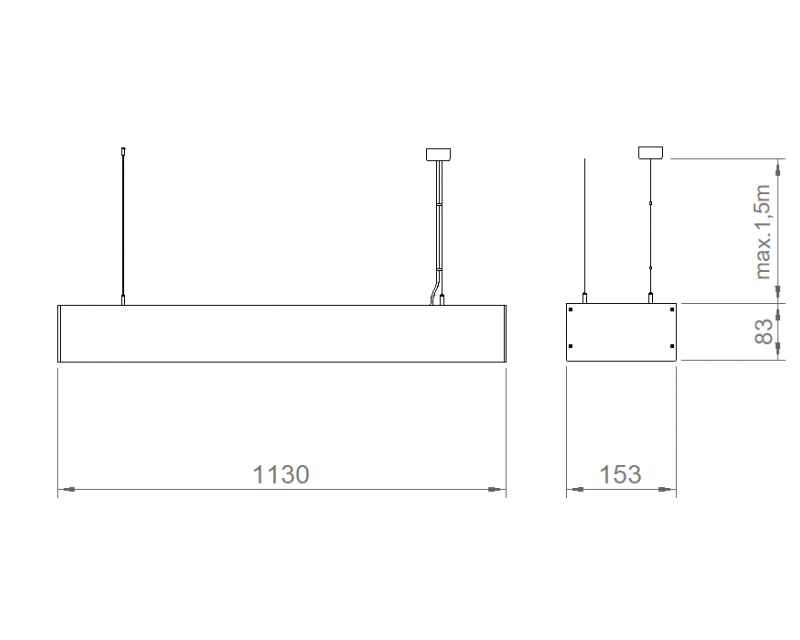

Product Dimensions [mm]
153(W) x 83(H)
Mounting Type
Surface and Pendant
Mounting Part
Height Adjustable Steel Wire
Electrical Info
Power
39W-45W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology
Light Output Angle
120°
UGR Value
UGR ≤ 22
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

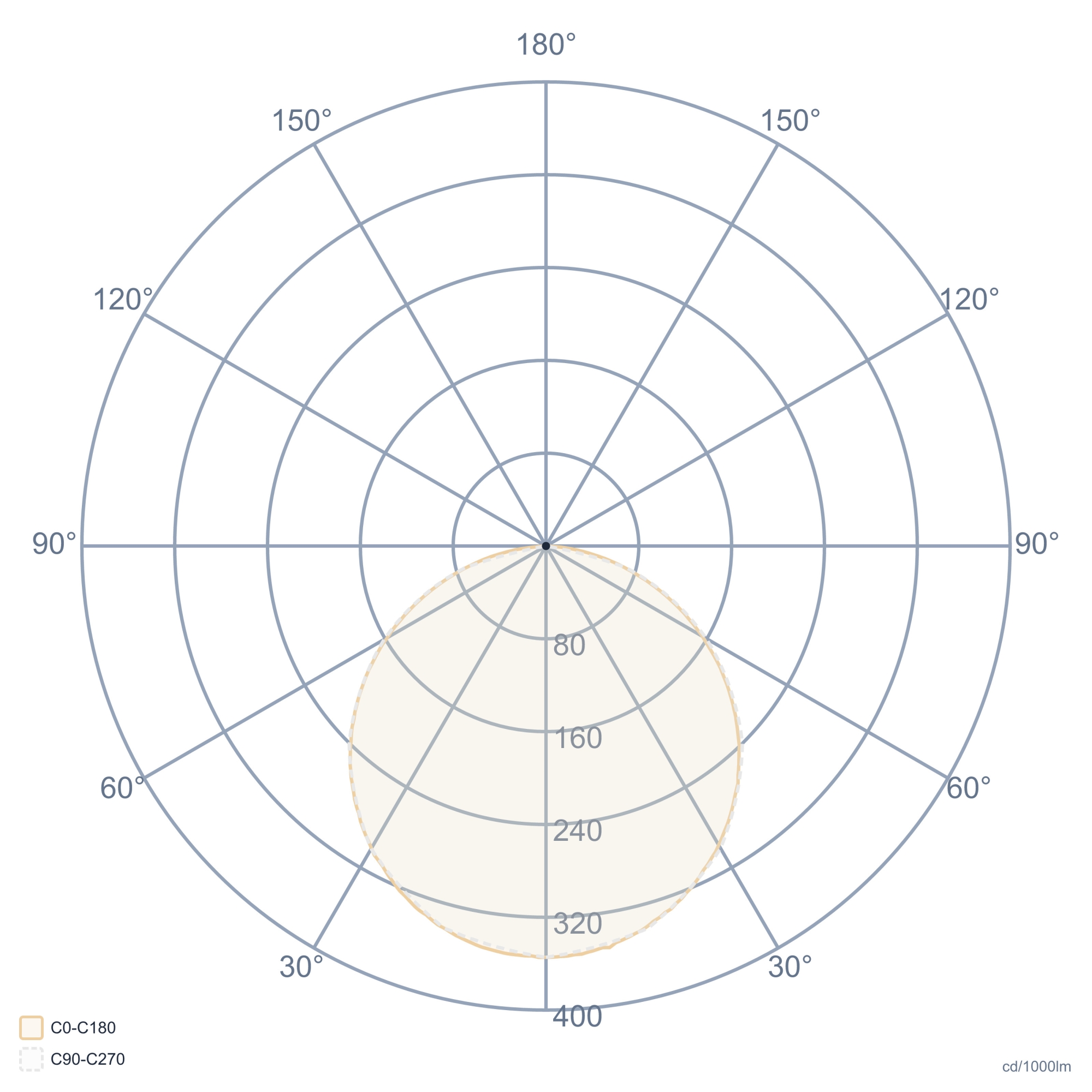

Order CodeWLmCCTL (mm)KgTechnical PagePhotometric File
