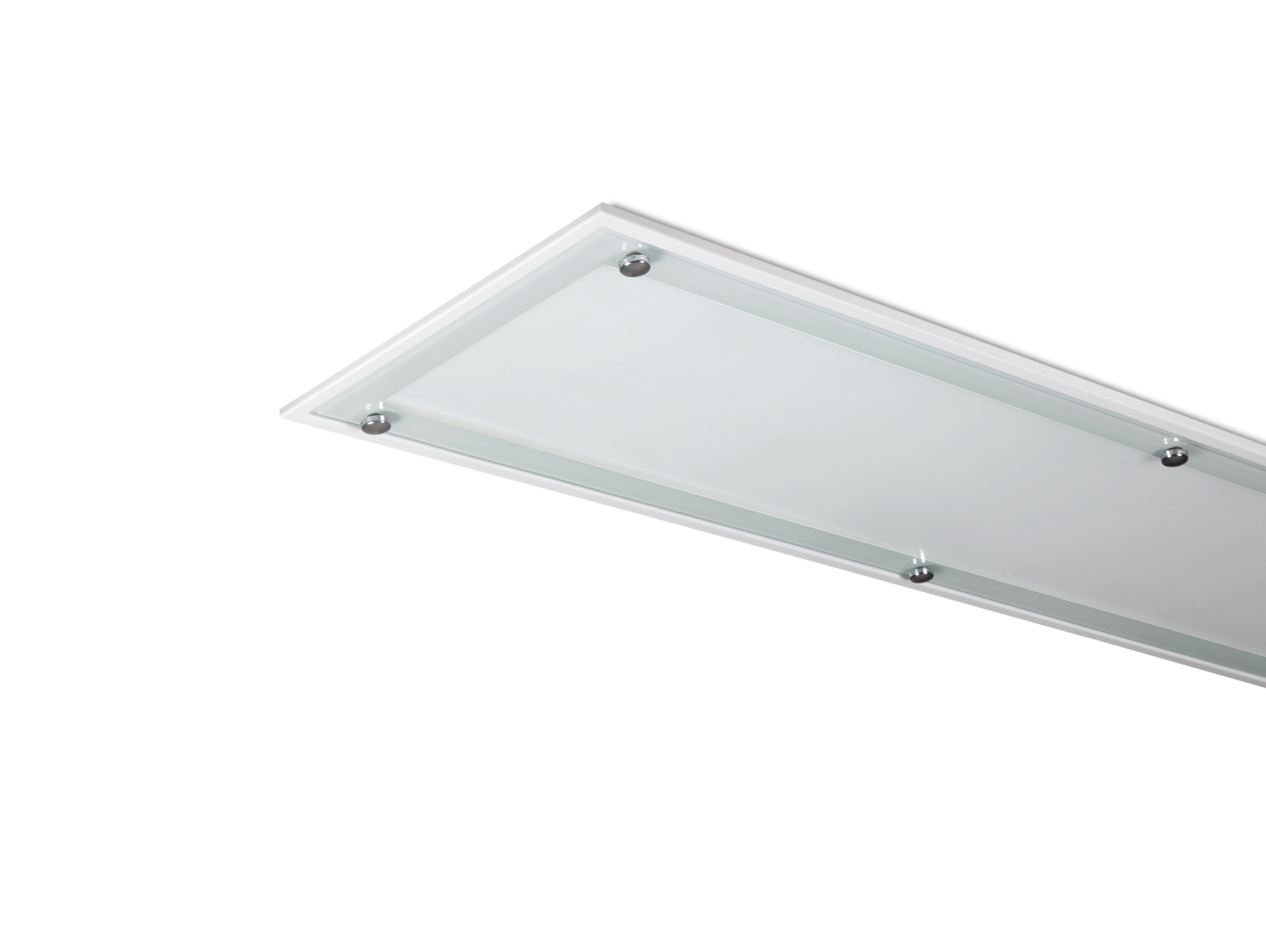

SHIELD-G 1200
02125
30x120cm Sterile Lighting Fixture

Shield-G 1200 is a professional sterile environment lighting solution measuring 30x120 cm, developed for cleanrooms and areas with high hygiene requirements. With IP65 protection level and IK08 impact resistance, it provides reliable protection against dust, moisture, and external influences, while its tempered glass and opal diffuser structure offers homogeneous and comfortable light distribution.

Thanks to its flush-mounted design, Shield-G 1200 creates an integrated look with the ceiling; it offers reliable performance in hospitals, laboratories, pharmaceutical production facilities, cleanrooms, and sterile production areas. Its linear form makes it an ideal lighting solution, especially for corridors, production areas, and large-volume sterile spaces.

Min-Max Watt:
33-56 [W]
Lumen:
2780-6600 [lm]
Lumen / Watt:
120 [lm/W]
Technical Documents
General Information
Housing
DKP Metal Sheet
Diffuser
Glass + Opal Diffuser
Paint
Electrostatic Powder Paint
Insulation Class
Class I

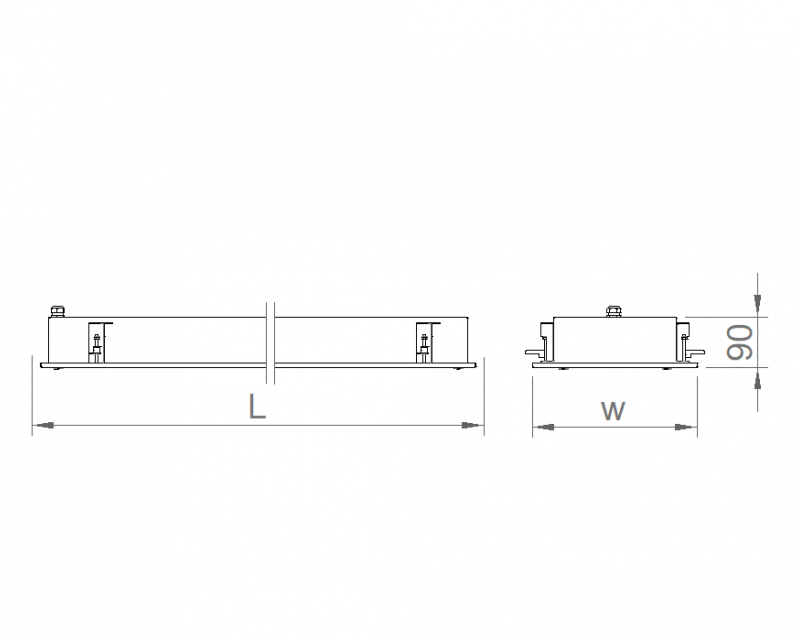

Product Dimensions [mm]
295(W) x 1195(L) x 90(H)
Mounting Type
Recessed
Mounting Part
Metal Bracket
Electrical Info
Power
33-56W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +40°C
LED Lifetime L70
>50.000 Hour
Lighting Technology

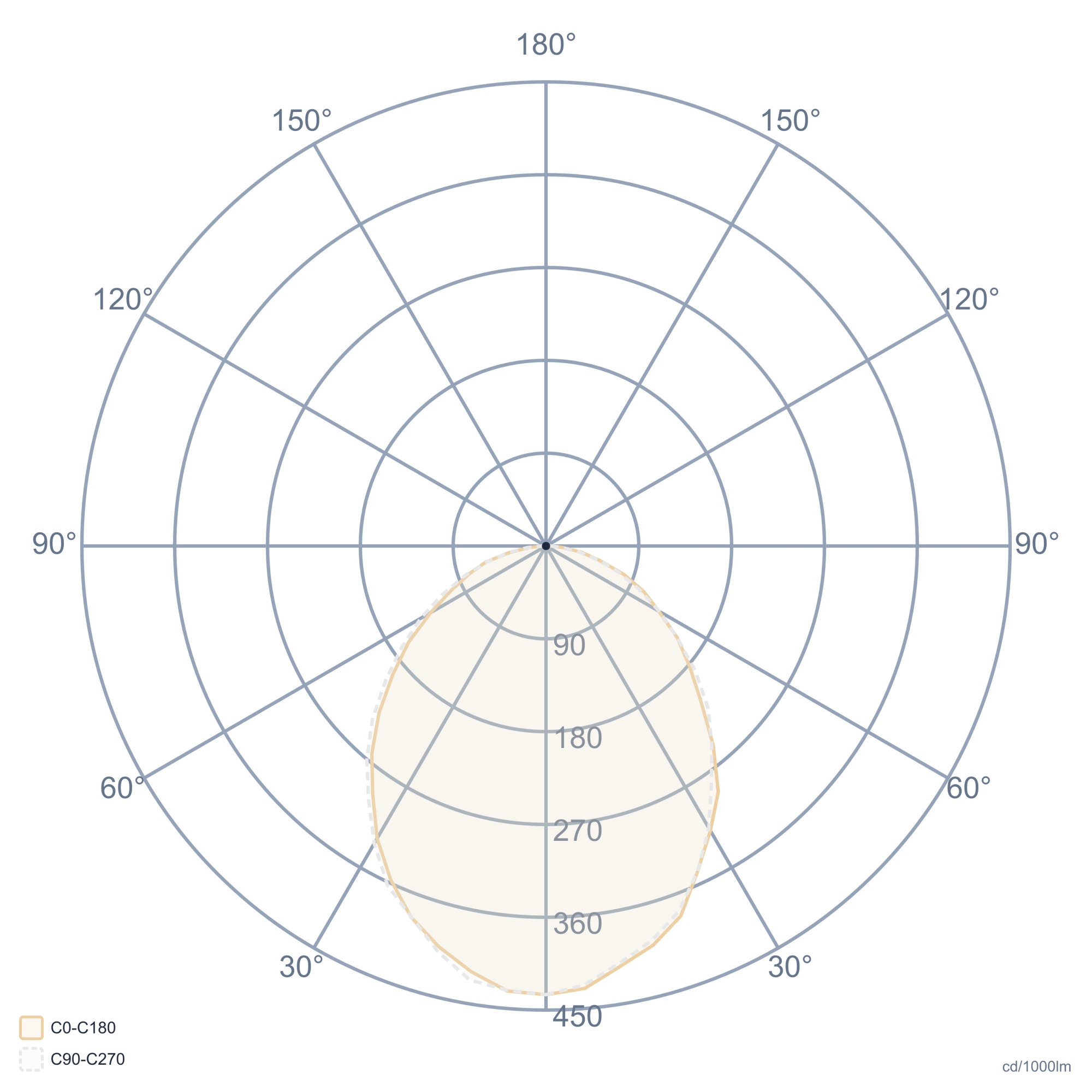

Light Output Angle
120°
UGR Value
UGR ≤ 22
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmCCTWxLxH (mm)Ceiling Cutting (mm)KgTechnical PagePhotometric File
