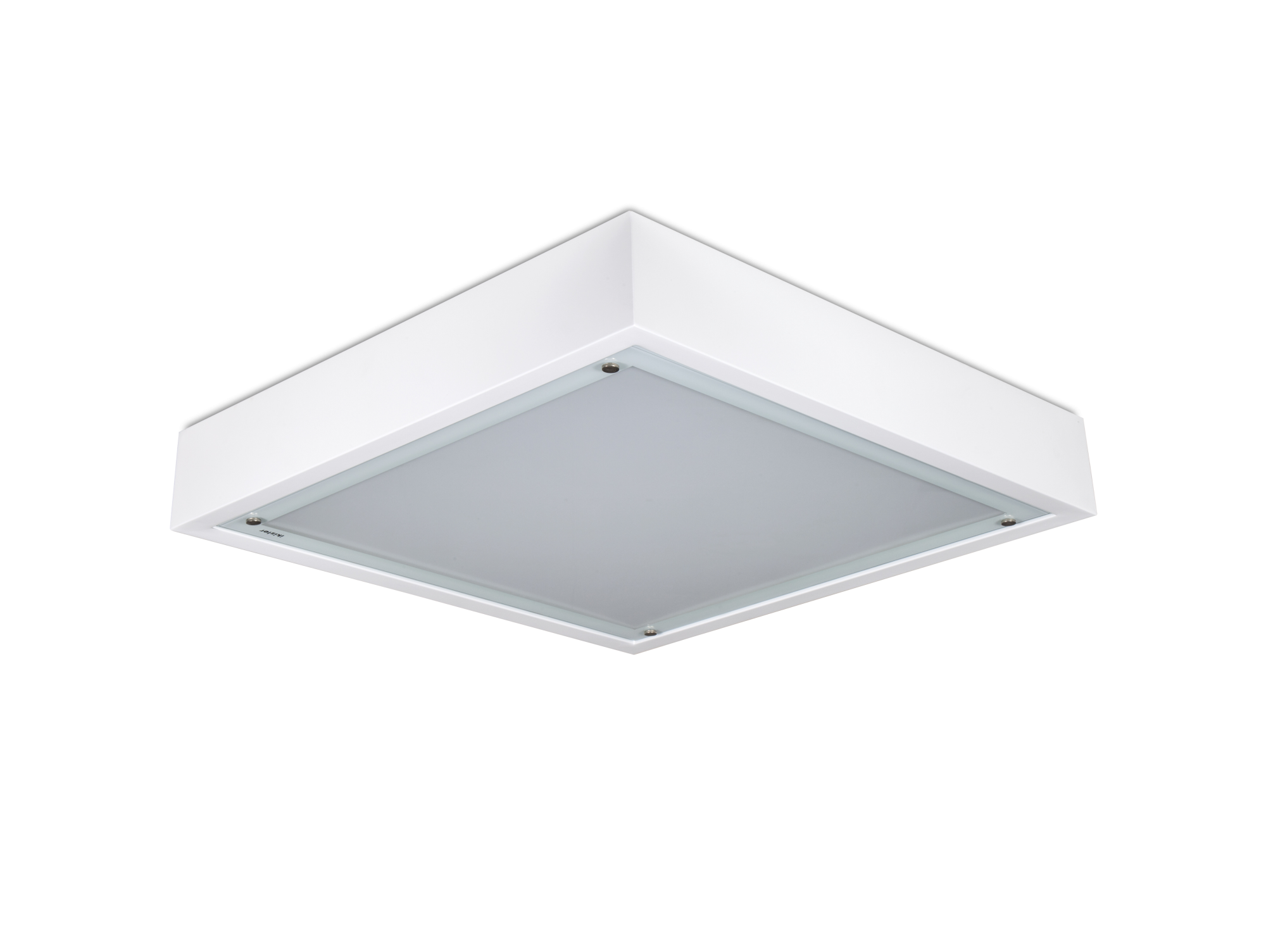

SHIELD-T
04101
Surface - 60x60cm Sterile Fixture

Shield-T is an IP65 surface-mounted luminaire with a combination of tempered glass and an opal diffuser, designed for areas requiring high levels of hygiene. Its sealed structure provides protection against dust and moisture, making it safe for cleanroom applications. The metal sheet housing, wide light distribution, and opal diffuser create homogeneous and comfortable lighting.

It offers a reliable and aesthetically pleasing solution for areas requiring sterile environments, such as hospitals, laboratories, pharmaceutical and food production facilities, where recessed mounting is not possible.

Min-Max Watt:
28-35 [W]
Lumen:
2900-3600 [lm]
Lumen / Watt:
104 [lm/W]
Technical Documents
General Information
Housing
DKP Metal Sheet
Optics
Glass + Opal Diffuser
Paint
Electrostatic Powder Paint
Insulation Class
Class I

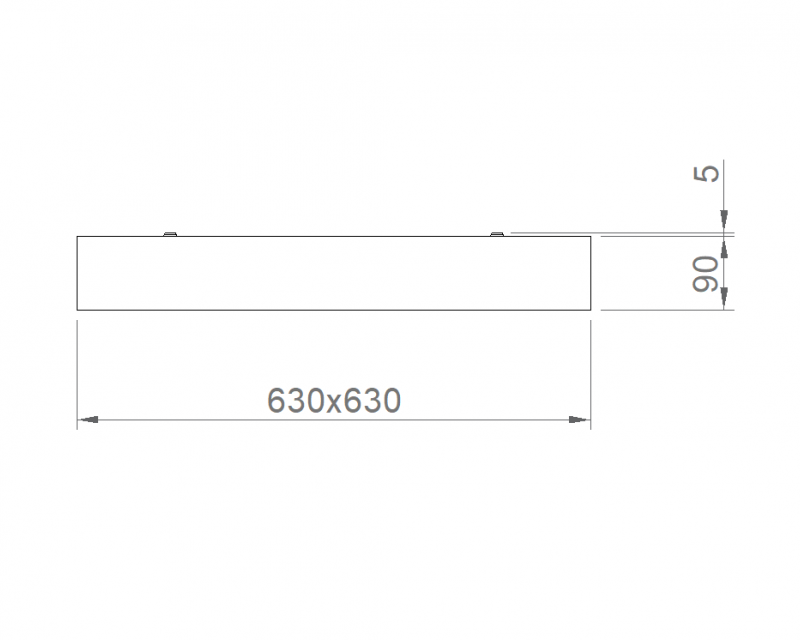

Product Dimensions [mm]
630(W) x 630(L) x 95(H)
Mounting Type
Surface
Mounting Part
Metal Bracket
Electrical Info
Power
28-35W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +40°C
LED Lifetime L70
>50.000 Hour

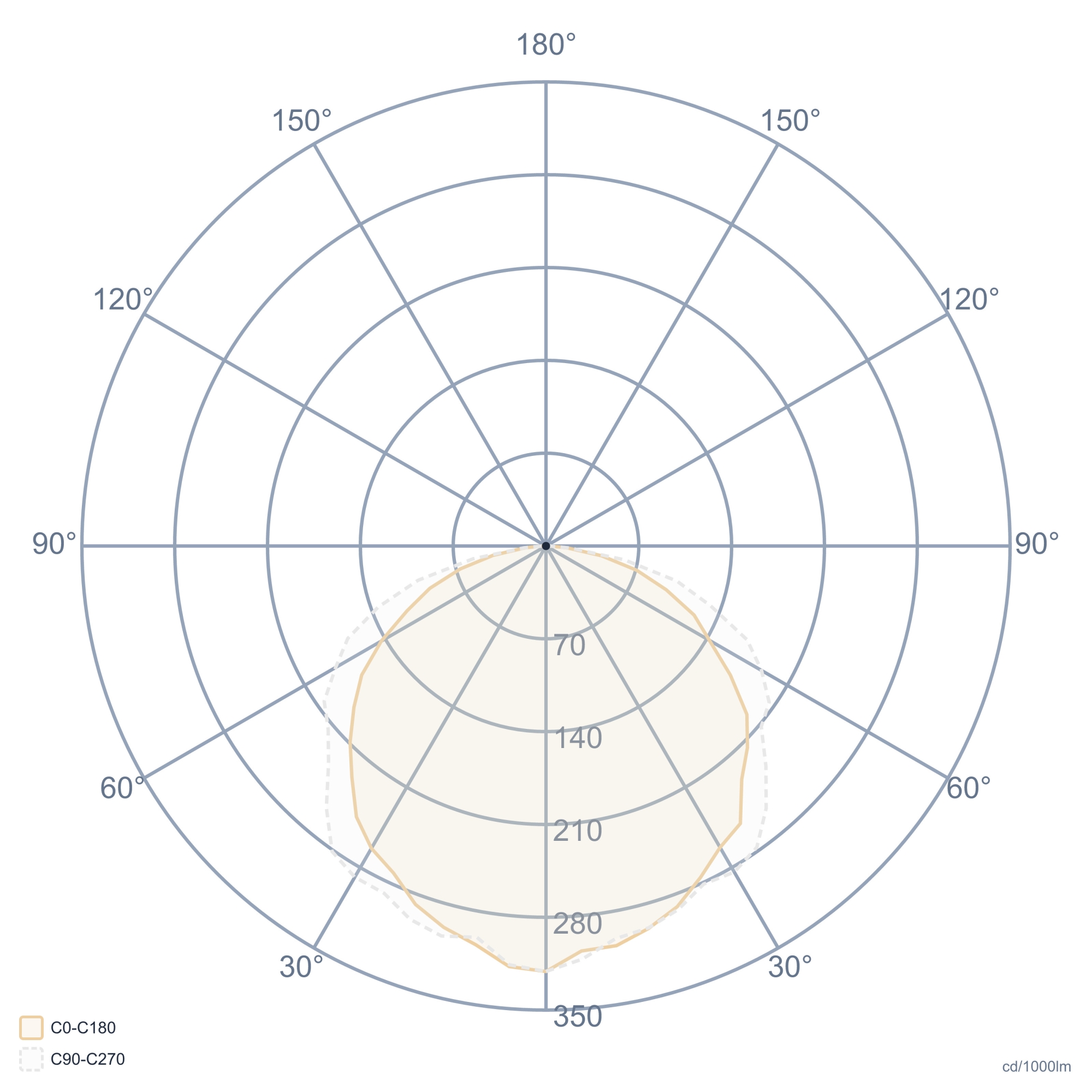

Lighting Technology
Light Output Angle
120°
UGR Value
UGR ≤ 22
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmCCTWxLxH (mm)KgTechnical PagePhotometric File
