MIRROLINE
01180
Mirror-mounted and wall-mounted lighting

Mirroline is a modern wall-mounted lighting fixture designed specifically for applications above mirrors, washroom areas, hotels, residential projects, and social spaces. Thanks to its aluminum body and opal diffuser, it offers a homogeneous, soft, and comfortable light distribution.

With its surface-mounted and flush-to-wall mounting structure, the product provides a simple and aesthetic appearance. The concealed electrical connection from the rear body ensures a clean installation detail. Its compact design, easy installation, and modern look combine functionality and aesthetics in bathrooms, hotels, hospitals, corridors, and decorative wall applications.

Min-Max Watt:
14-41 [W]
Lumen:
1670-4970 [lm]
Lumen / Watt:
121 [lm/W]
Technical Documents
General Information
Housing
Aluminum Injection
Optics
Opal Diffuser
Paint
Electrostatic Powder Paint
Insulation Class
Class II

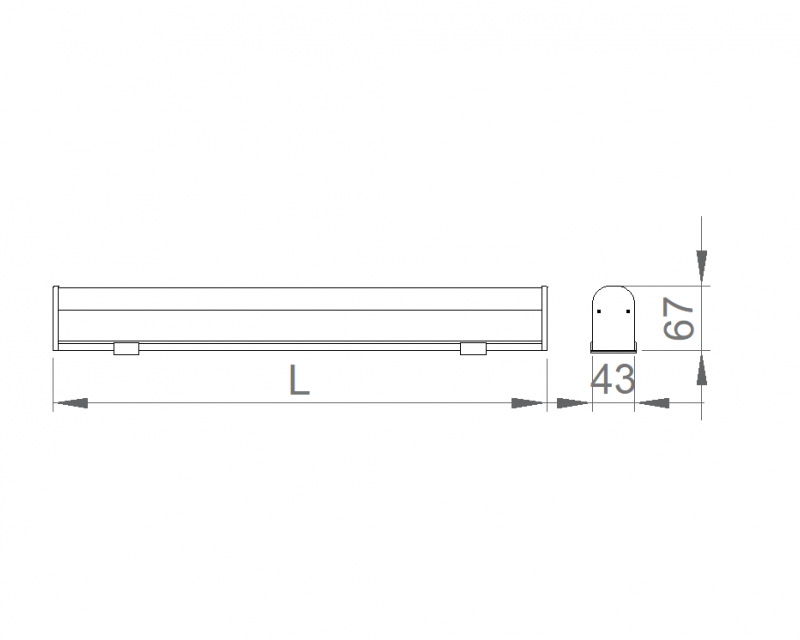

Product Dimensions [mm]
43(W) x 67(H)
Mounting Type
Surface
Mounting Part
Screw Dowel Set
Electrical Info
Power
14-41W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / + 50°C
LED Lifetime L70
>50.000 Hour
Lighting Technology

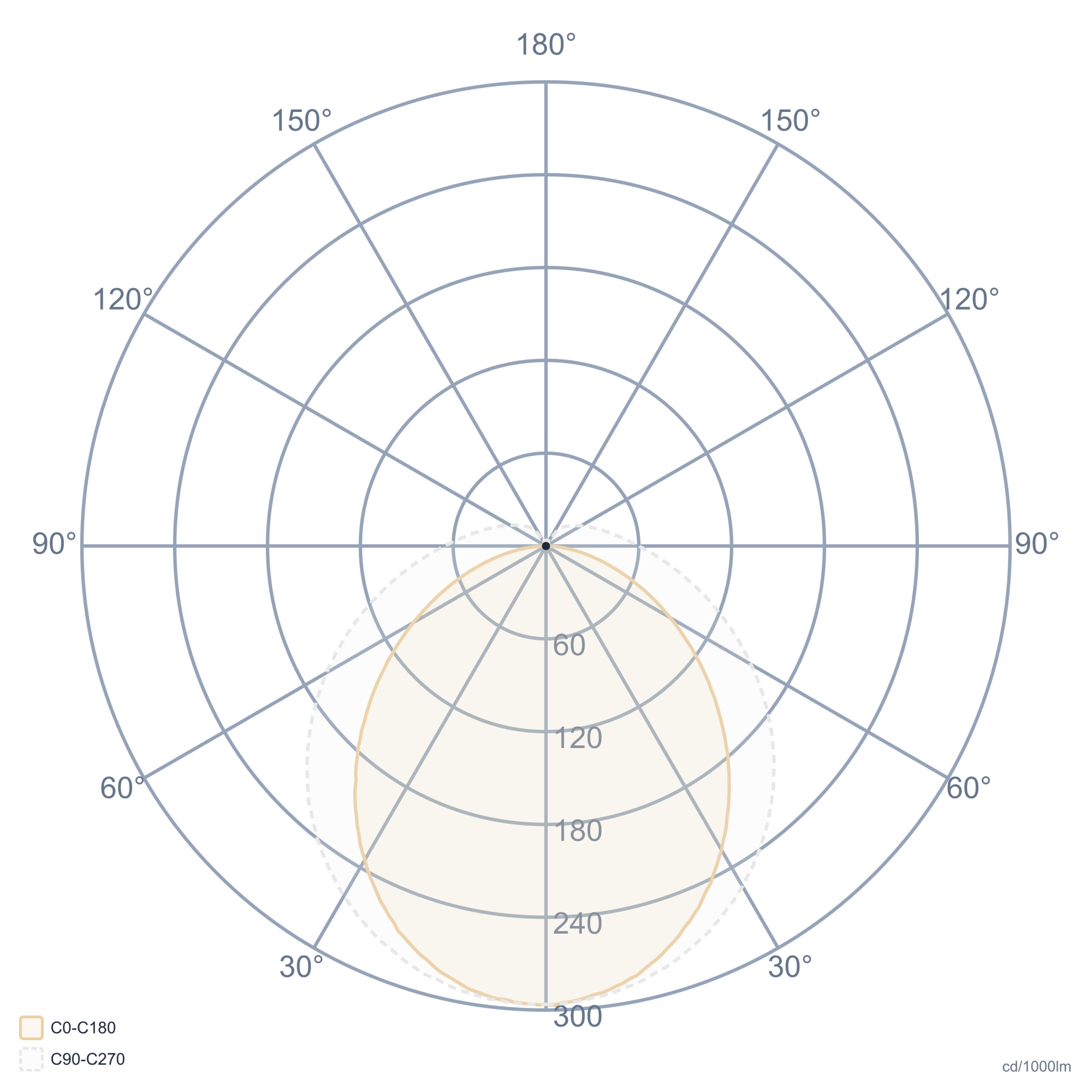

Light Output Angle
110°
UGR Value
UGR ≤ 22
CRI [Ra]
CRI ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmCCTWxLxH (mm)KgTechnical PagePhotometric File
