FEDORA-SQ
03170
It combines light and acoustics in a square form

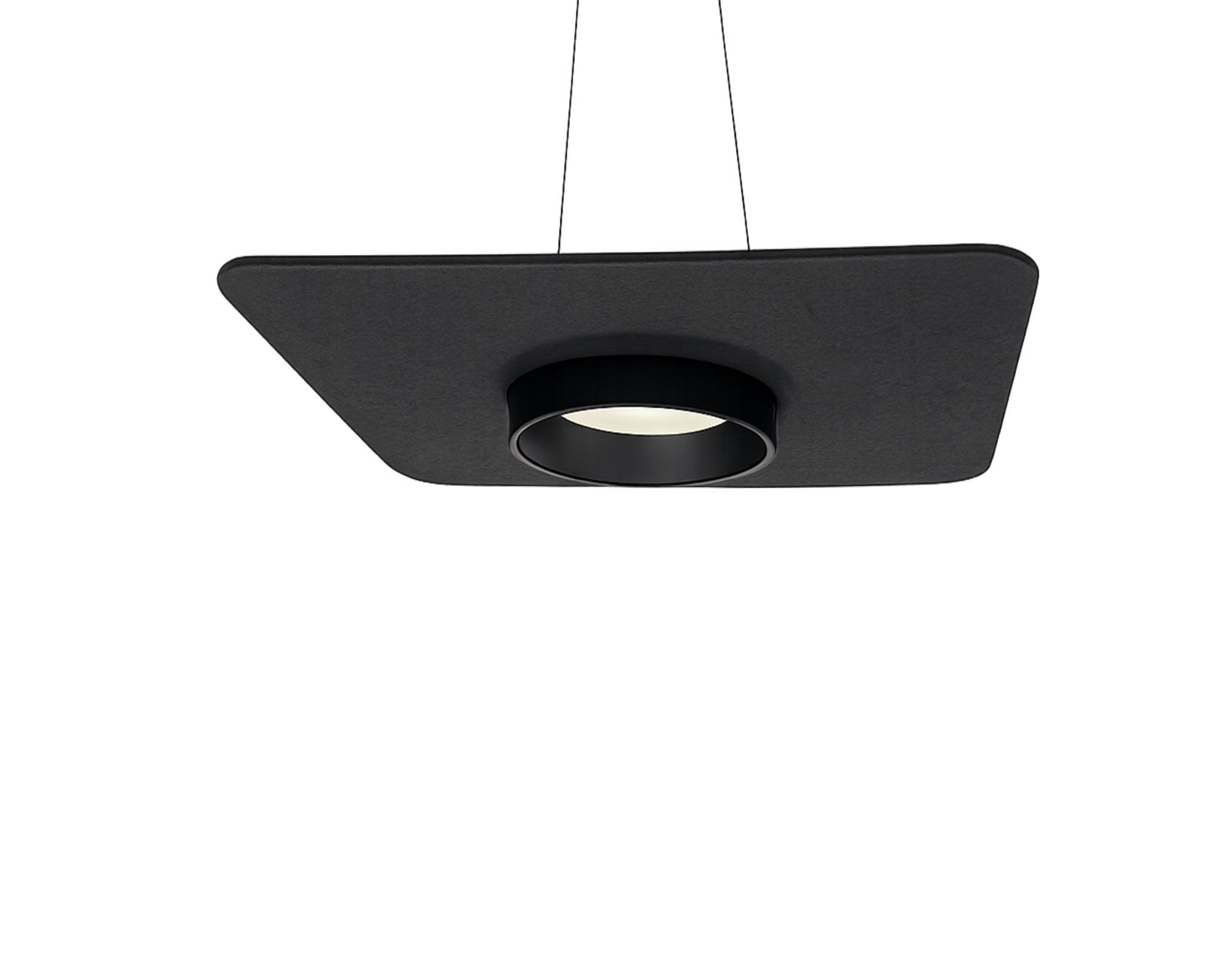

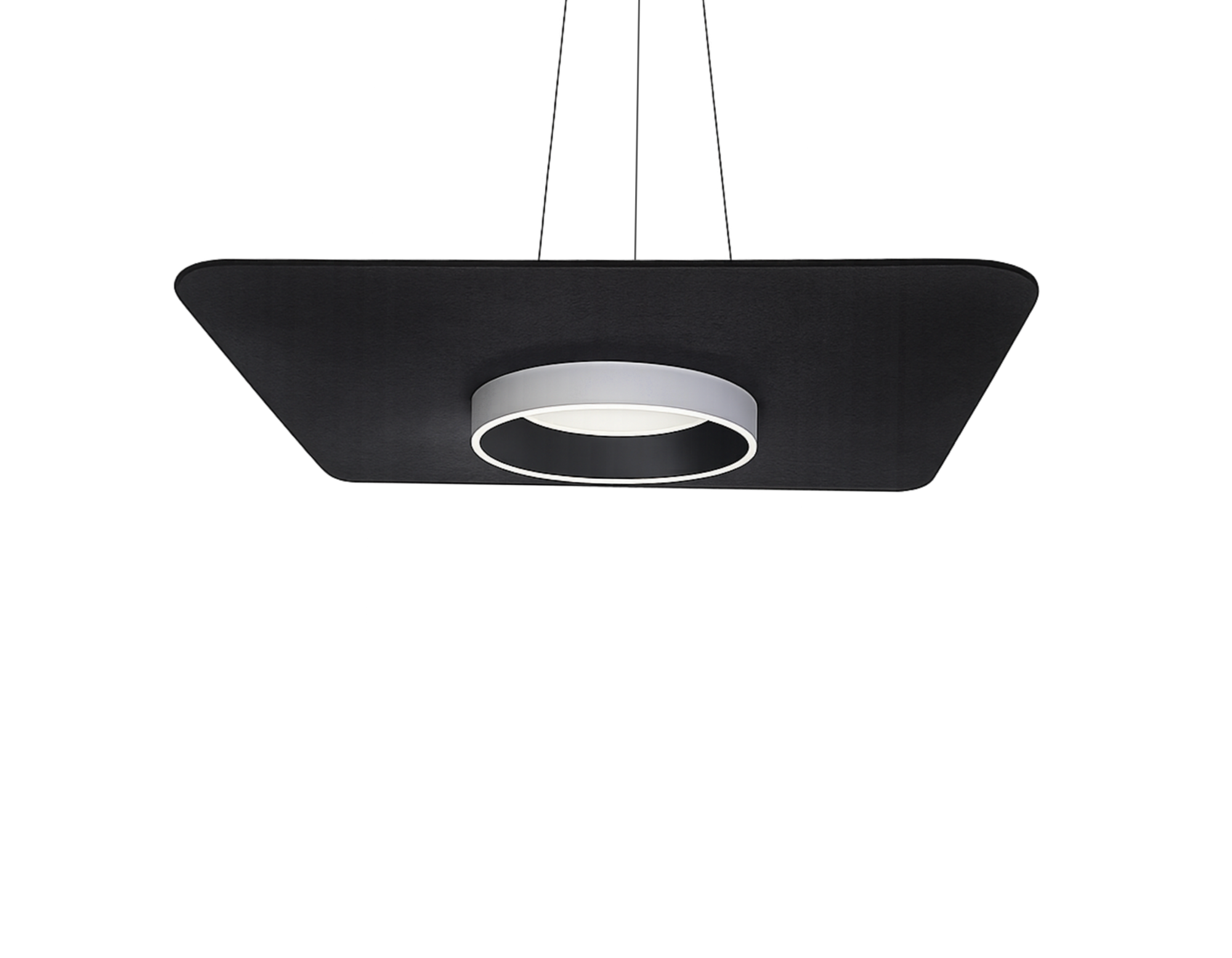

Fedora-SQ combines lighting and acoustics in a single product by integrating the Corvus Inn circular luminaire body with a sound-absorbing acoustic felt panel. Thanks to its semi-recessed design, the luminaire creates an integrated look with the felt panel, adding an aesthetic touch to modern architecture.

Providing homogeneous and comfortable lighting with its opal diffuser, Fedora-SQ reduces ambient reverberation with its acoustic felt structure, creating a quieter atmosphere in work and living spaces. With different felt colors and panel sizes that can be produced according to project needs, it offers an aesthetic and functional hybrid solution for offices, meeting rooms, training areas, social areas, and open office projects.

Min-Max Watt:
30 [W]
Lumen:
3100 [lm]
Lumen / Watt:
104 [lm/W]
Technical Documents
General Information
Housing
Aluminum Extruded
Panel
Acoustic Felt
Optics
Opal Diffuser
Paint
Electrostatic Powder Paint
Insulation Class
Class I

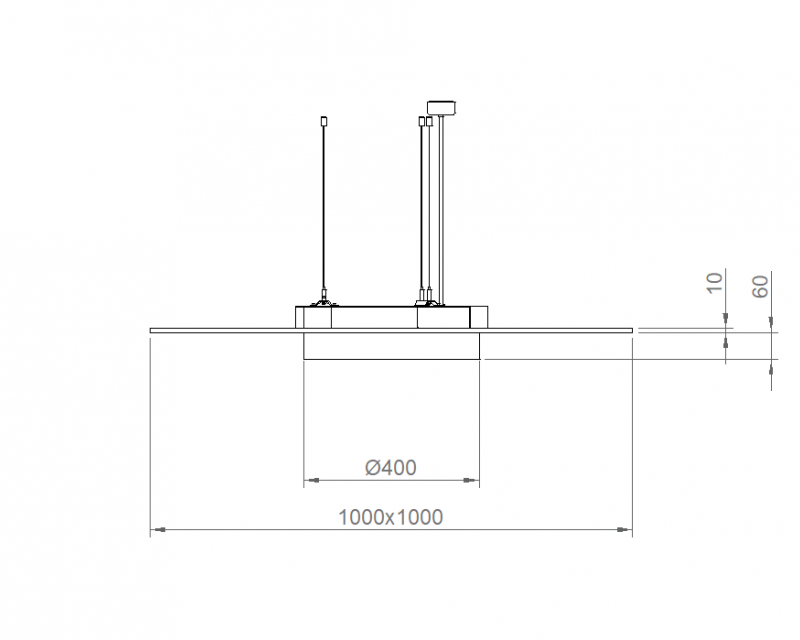

Product Dimensions [mm]
1000(W)x1000(L)x60(H)
Mounting Type
Pendant
Mounting Part
Height Adjustable Steel Wire
Electrical Info
Power
30W
Power Factor
>0.95
Light Source
SMD Mid Power LED
Cabling
Halogen-Free
Input Voltage
220-240V AC / 50-60 Hz
LED Driver
Constant Current
Ambient Temperature
-20°C / +50°C
LED Lifetime L70
>50.000 Hour

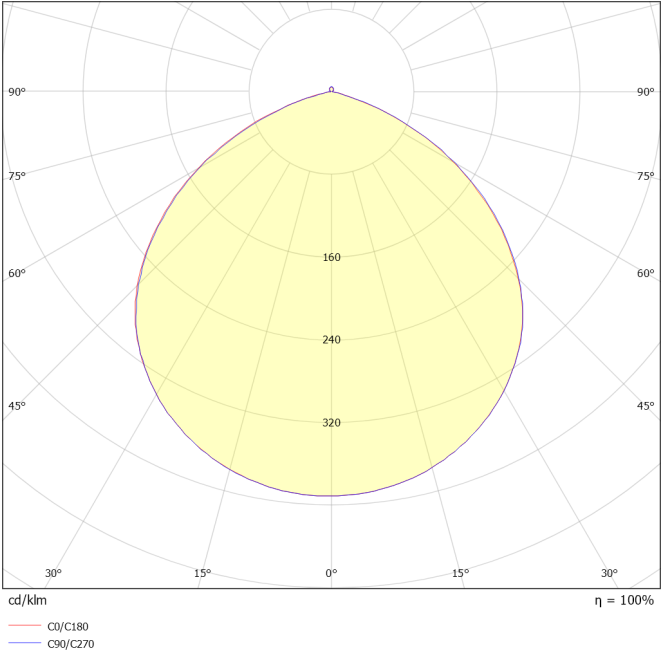

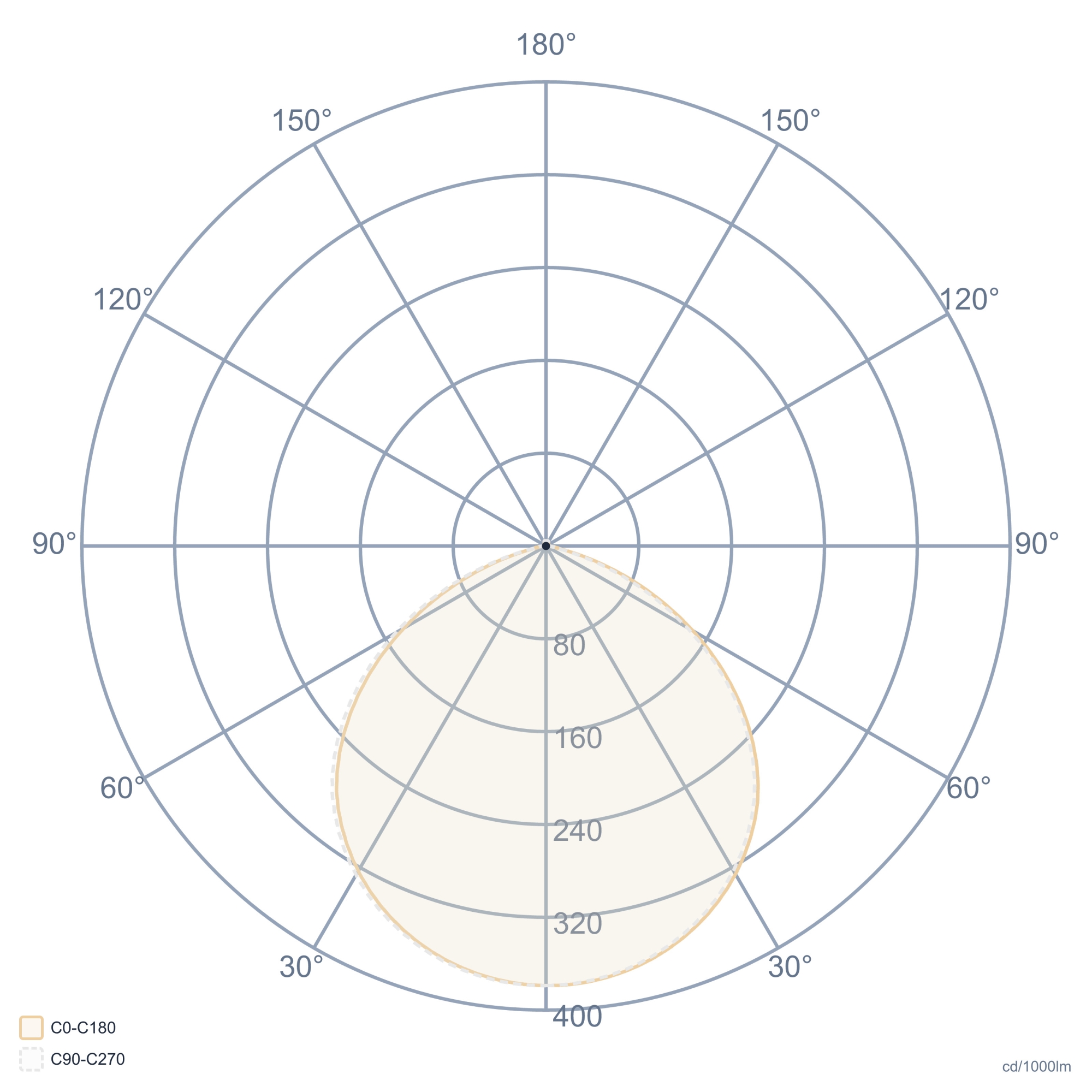

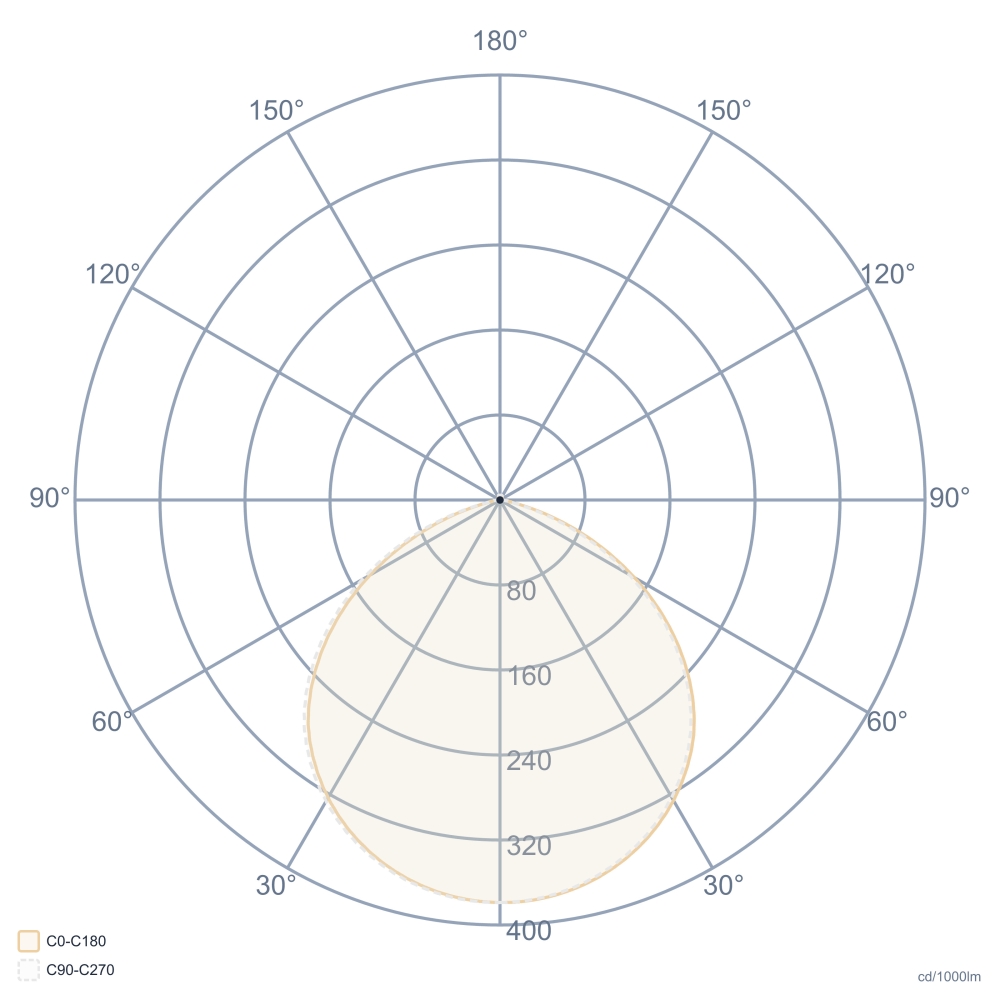

Lighting Technology
Light Output Angle
120°
UGR Value
UGR ≤ 22
CRI [Ra]
CR ≥ 80
Color Bin Value
Mc Adams ≤ 3
Optional
DALI / 1-10V
CRI>90 , 2700K~6500K , Tunable White
Emergency Lighting Unit

Order CodeWLmCCTL (mm)KgTechnical PagePhotometric File
