Trunking Lighting Systems / LinearLinear Lighting Units
BACK
| Housing | Electrostatic Powder Coated Aluminum Profile |
| Optics | High Light Transmittance Optical Lens |

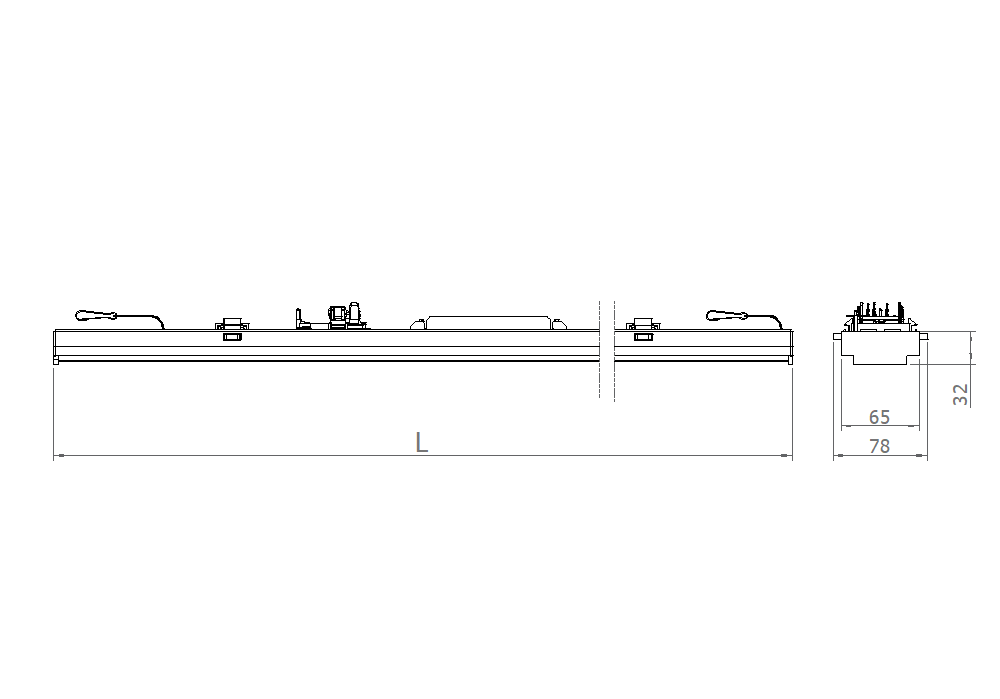

| Dimensions(mm) | 65x32MM |
| Light Distribution | Symmetrical / Asymmetrical |
| Light Output Angle | 60°Sym / 90°Sym / 40°x100°Sym / 2x25°Asym |
| UGR Value | UGR ≤ 22 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
  |
| Order Code | W | Lm | CCT | Angle | Productivity | L (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|
| 07201.11.40.073 | 50 | 7300 | 4000 | 90° | 146 Lm/W | 1140 | 1,2 | Technical Page | |
| 07201.14.40.100 | 63 | 10000 | 4000 | 90° | 158 Lm/W | 1421 | 1,5 | Technical Page | |
| 07201.17.40.120 | 76 | 12000 | 4000 | 90° | 158 Lm/W | 1702 | 1,8 | Technical Page |
| IP Rating | IP40 |
| IK Rating | IK08 |
