Outdoor Lighting / Facade LightingPoint
BACK
| Housing | Extruded Aluminum Profile |
| Frame | Matte Anodized Finish |
| Glass | Tempered Clear Glass |
| Reflector | Acrylic Optical Lens |
| Paint | Electrostatic Powder Paint |
| Optics | Symmetrical / Asymmetrical |
| Light Output Angle | 15°-30°-45°-60°-90°-120° |
| UGR Value | UGR ≤ 25 |
| CRI | CRI ≥ 70 |
| Color Bin Value | Mc Adams ≤ 3 |

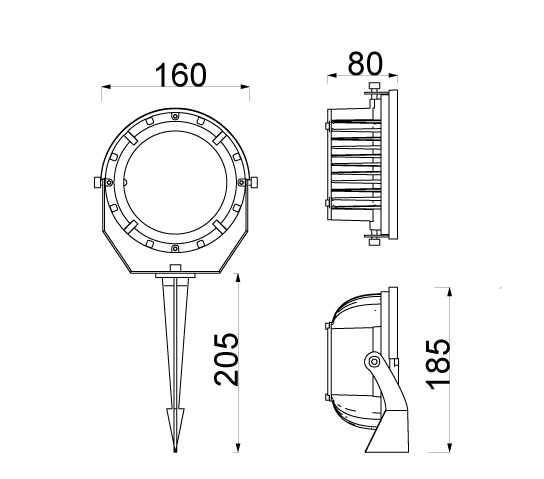

| Order Code | W | Lm | CCT | CRI | ØxWxH (mm) | Angle | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|
| 09397.11.60.016 | 13 | 1600 | 6000 | Ra>70 | Ø160x80x185mm | 60° | 1,15 | Technical Page | Ldt |
| 09397.11.60.026 | 20 | 2600 | 6000 | Ra>70 | Ø160x80x185mm | 60° | 1,15 | Technical Page | |
| 09397.11.60.036 | 28 | 3600 | 6000 | Ra>70 | Ø160x80x185mm | 60° | 1,15 | Technical Page | |
| 09397.11.60.052 | 40 | 5200 | 6000 | Ra>70 | Ø160x80x185mm | 60° | 1,15 | Technical Page |
| IP Rating | IP66 |
| IK Rating | IK08 |
Park and Garden
