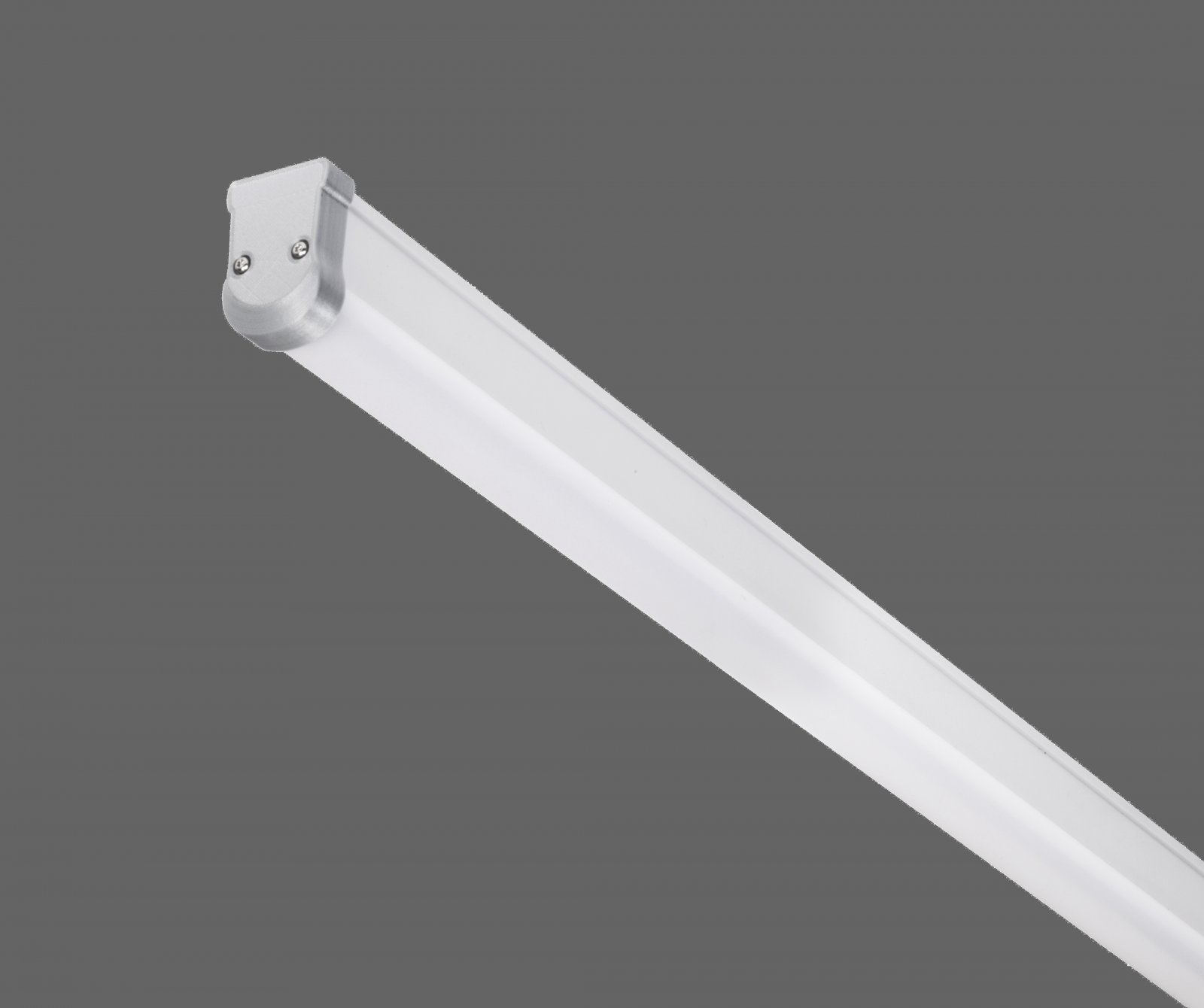

Indoor Lighting / WaterproofAltura IP65
BACK
| Housing | CO-EX Extrusion PC Profile |
| Side Cover | PC Injection |
| Diffuser | PC Opal Diffuser |
| Optics | Symmetrical |
| Light Output Angle | 120° |
| UGR Value | UGR ≤ 22 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
 |
| Order Code | W | Lm | CCT | Productivity | WxHxL (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|
| 07107.06.30.012 | 12 | 1320 | 3000 | 110 Lm/W | 33x50x580 | 0,4 | Technical Page | Ldt |
| 07107.06.40.013 | 12 | 1380 | 4000 | 115 Lm/W | 33x50x580 | 0,4 | Technical Page | Ldt |
| 07107.12.30.036 | 35 | 3850 | 3000 | 110 Lm/W | 33x50x1140 | 0,7 | Technical Page | Ldt |
| 07107.12.40.040 | 35 | 4025 | 4000 | 115 Lm/W | 33x50x1140 | 0,7 | Technical Page | Ldt |
| 07107.14.30.046 | 44 | 4840 | 3000 | 110 Lm/W | 33x50x1420 | 1 | Technical Page | Ldt |
| 07107.14.40.050 | 44 | 5060 | 4000 | 115 Lm/W | 33x50x1420 | 1 | Technical Page | Ldt |
| IP Rating | IP65 |
| IK Rating | IK09 |
Factory
Humid Environment
Parking lot
