Indoor Lighting / Recessed LightingFlat-G 600
BACK
| Body & Frame | Metal Sheet |
| Diffuser | Opal with High Light Transmittance |
| Paint | Electrostatic Powder Paint |
| Optics | Symmetrical |
| Light Output Angle | 110° |
| UGR Value | UGR ≤ 22 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
   |
| Order Code | W | Lm | CCT | CRI | WxLxH (mm) | Ceiling Cutting (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|

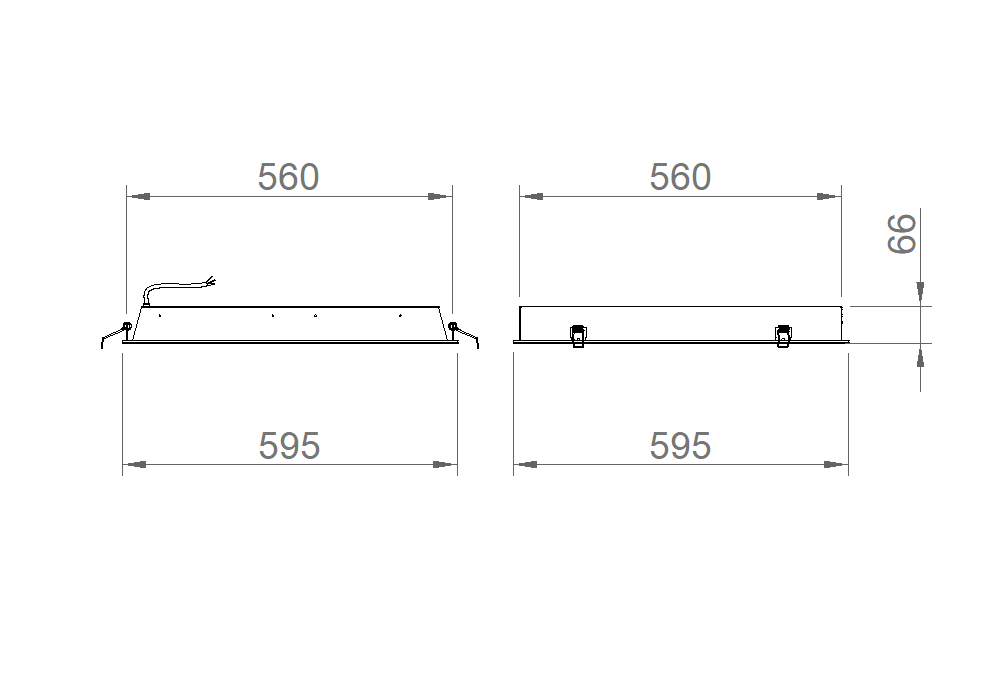

| 02110.66.30.031 | 28 | 3160 | 3000 | Ra>80 | 595x595x65 | 575x575 | 2.8 | Technical Page | Ldt |
| 02110.66.40.032 | 28 | 3260 | 4000 | Ra>80 | 595x595x65 | 575x575 | 2.8 | Technical Page | Ldt |
| 02110.66.30.040 | 33 | 3700 | 3000 | Ra>80 | 595x595x65 | 575x575 | 2.8 | Technical Page | Ldt |
| 02110.66.40.041 | 33 | 3960 | 4000 | Ra>80 | 595x595x65 | 575x575 | 2.8 | Technical Page | Ldt |
| 02110.66.30.044 | 39 | 4400 | 3000 | Ra>80 | 595x595x65 | 575x575 | 2.8 | Technical Page | Ldt |
| 02110.66.40.044 | 39 | 4600 | 4000 | Ra>80 | 595x595x65 | 575x575 | 2.8 | Technical Page | Ldt |
| IP Rating | IP40 |
| IK Rating | IK02 |
