Indoor Lighting / Industrial LightingVoltar
BACK
| Housing | Aluminum Injection |
| Optics | Adjustable Angle Clear Optic Lens |
| Paint | Electrostatic Powder Paint |
| Optics | Symmetrical |

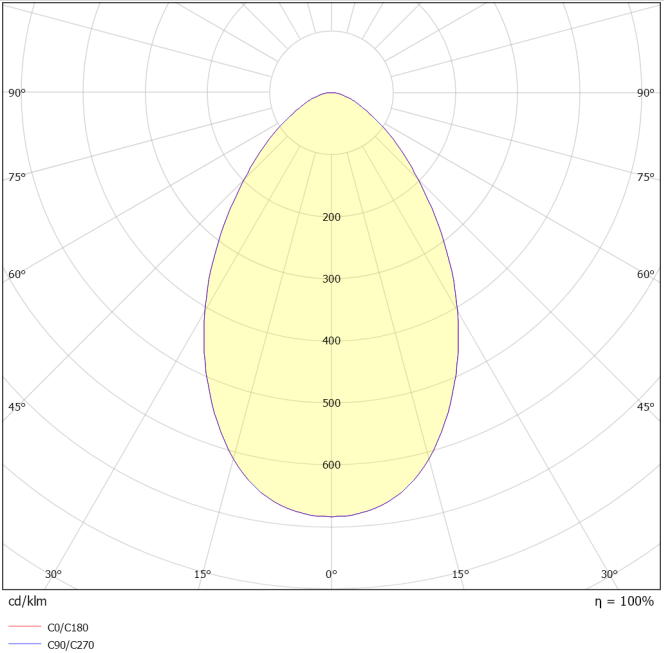

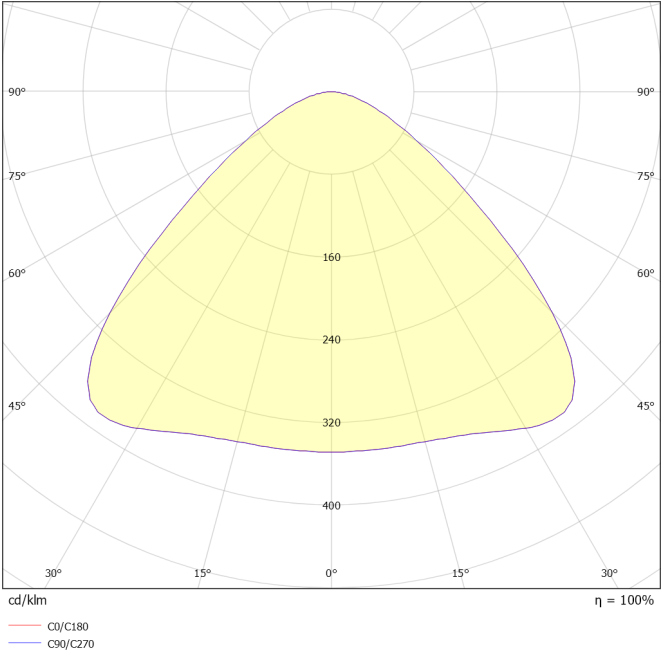

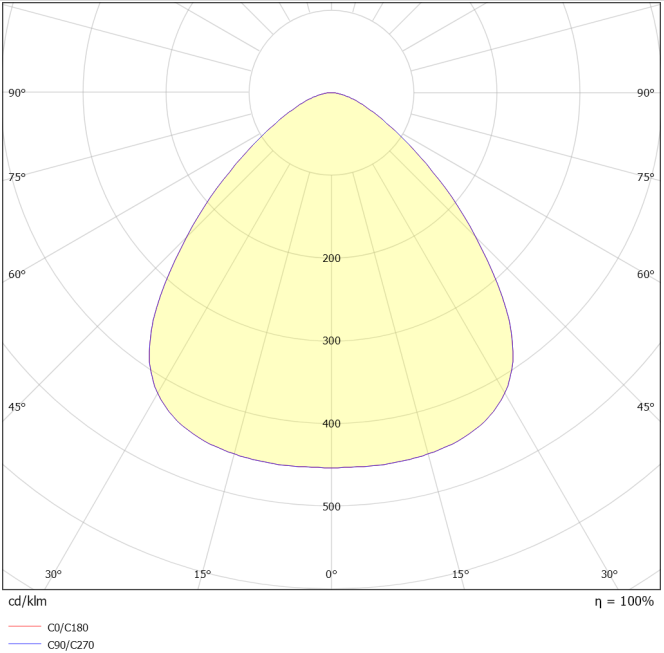

| Light Output Angle | 60°,90°,110° |
| UGR Value | UGR ≤ 22 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
 |
| Order Code | W | Lm | CCT | Productivity | Angle | ( Ø ) (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|
| 07307.33.40.168/60 | 100 | 16000 | 4000 | 160lm/w | 60° | ø330 | 2,6 | Technical Page | Ldt |
| 07307.33.40.170/90 | 100 | 16150 | 4000 | 161lm/w | 90° | ø330 | 2,6 | Technical Page | Ldt |
| 07307.33.40.167/110 | 100 | 15840 | 4000 | 158lm/w | 110° | ø330 | 2,6 | Technical Page | Ldt |
| 07307.33.40.244/60 | 150 | 23100 | 4000 | 154lm/w | 60° | ø330 | 2,6 | Technical Page | Ldt |
| 07307.33.40.248/90 | 150 | 23350 | 4000 | 156lm/w | 90° | ø330 | 2,6 | Technical Page | Ldt |
| 07307.33.40.243/110 | 150 | 22750 | 4000 | 152lm/w | 110° | ø330 | 2,6 | Technical Page | Ldt |
| 07307.33.40.316/60 | 200 | 29460 | 4000 | 147lm/w | 60° | ø330 | 2,6 | Technical Page | Ldt |
| 07307.33.40.320/90 | 200 | 29600 | 4000 | 148lm/w | 90° | ø330 | 2,6 | Technical Page | Ldt |
| 07307.33.40.315/110 | 200 | 28960 | 4000 | 145lm/w | 110° | ø330 | 2,6 | Technical Page | Ldt |
| IP Rating | IP65 |
| IK Rating | IK10 |
Warehouse
Factory
Sports Hall
Tunnel
