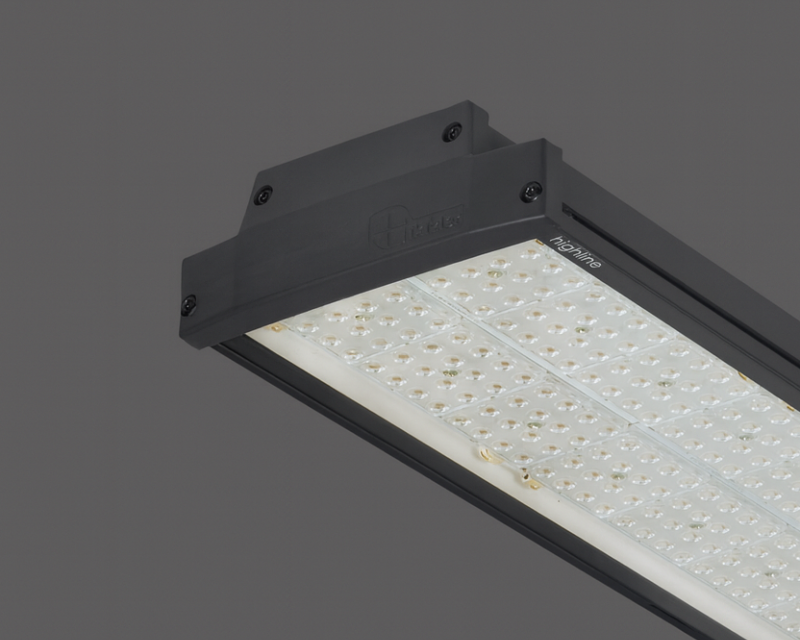

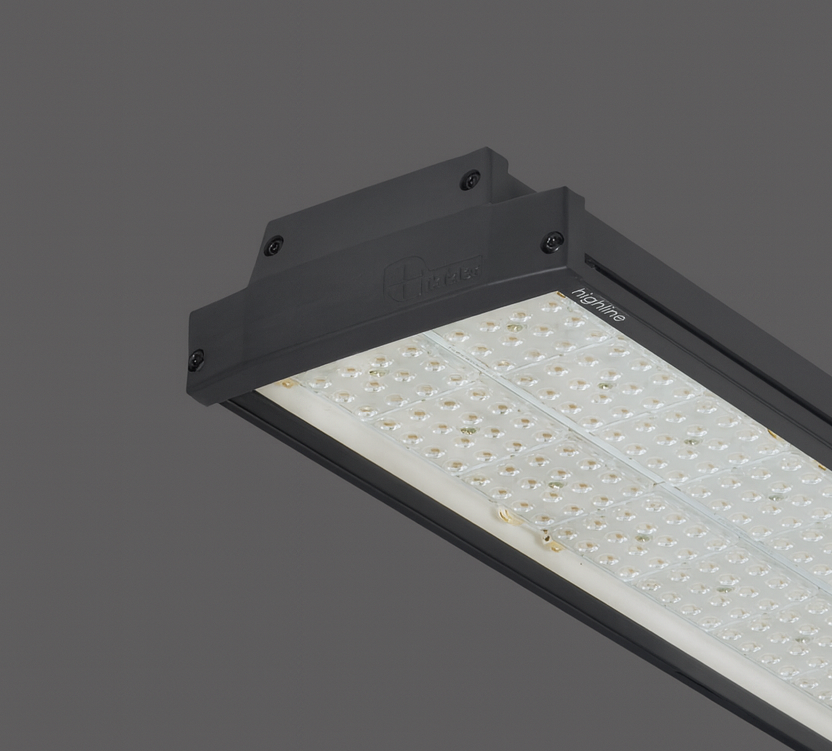

Indoor Lighting / Industrial LightingHighline-F
BACK
| Housing | Extruded Aluminum Profile |
| Side Cover | PC Injection + Silicone Gasket |
| Diffuser | UV Stabilized Lens + Heat Resistant Tempered Clear Glass |
| Paint | Electrostatic Powder Paint |
| Optics | Symmetric-Asymmetric |

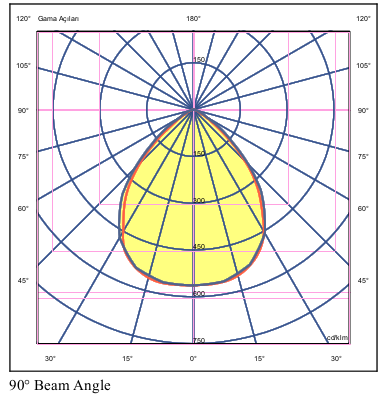

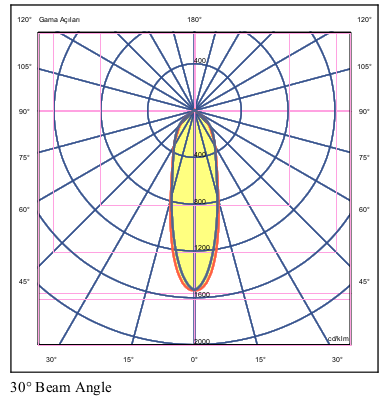

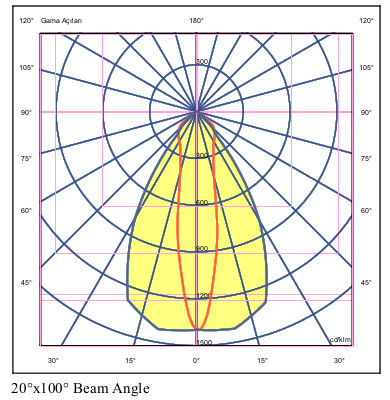

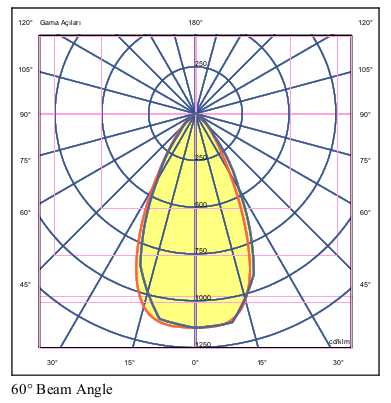

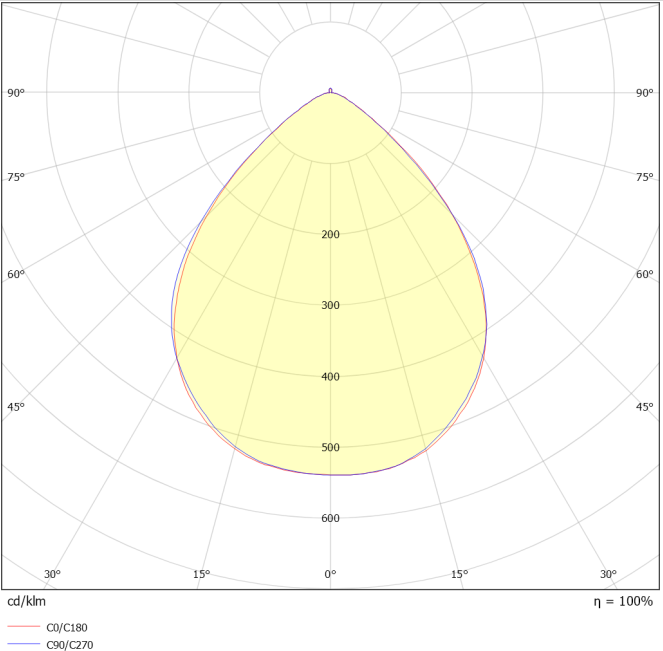

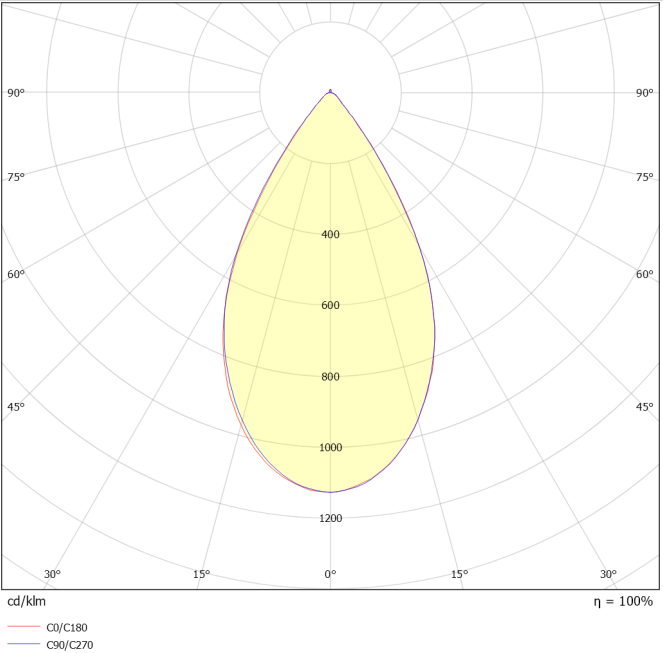

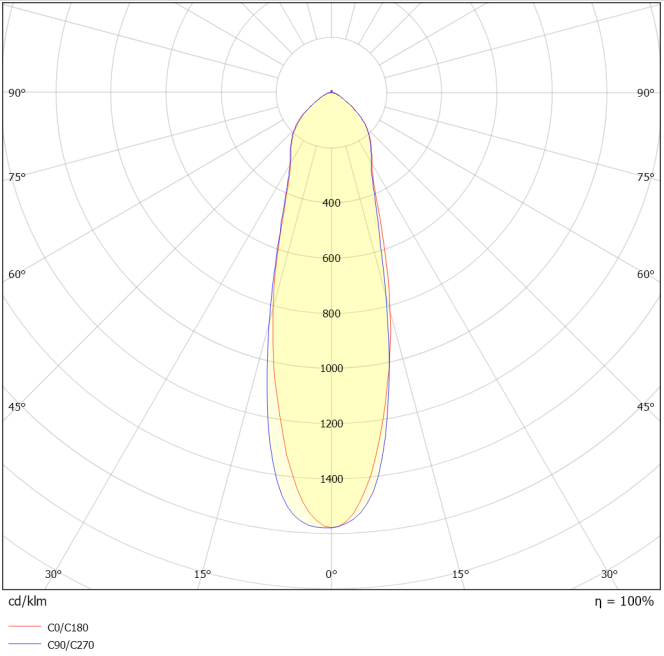

| Light Output Angle | 30°,60°,90°,20x100° |
| UGR Value | UGR ≤ 22 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
 |

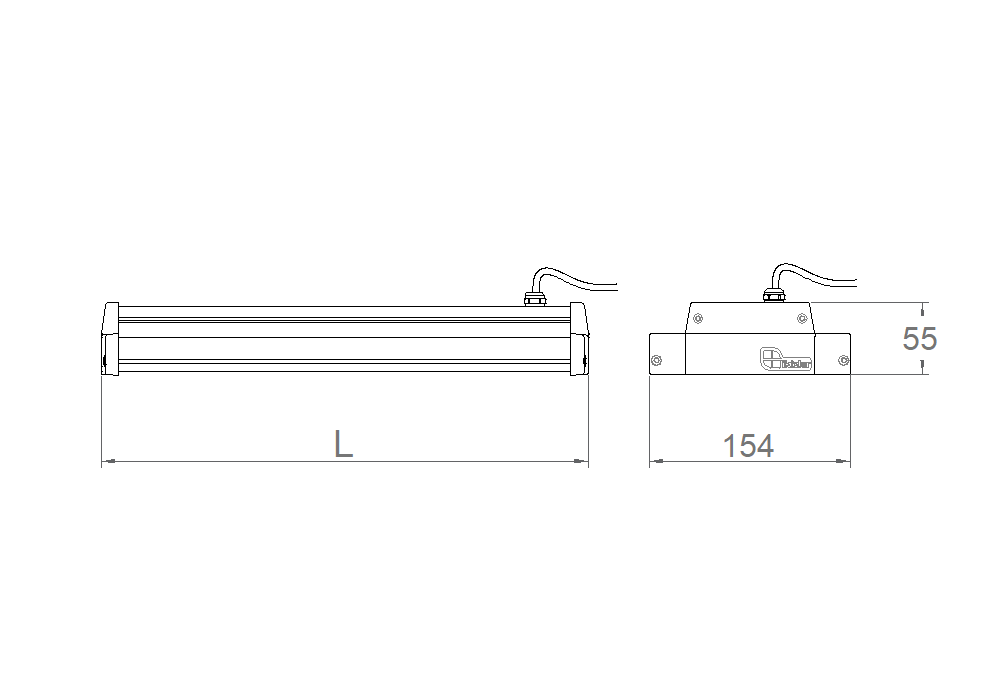

| Order Code | W | Lm | Angle | Productivity | L (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|
| 07309.06.40.200.30 | 134 W | 20420 | 30° | 152 Lm/W | 600mm | 3.0 | Technical Page | Ldt |
| 07309.06.40.200.60 | 134 W | 21440 | 60° | 160 Lm/W | 600mm | 3.0 | Technical Page | Ldt |
| 07309.06.40.200.90 | 134 W | 21400 | 90° | 160 Lm/W | 600mm | 3.0 | Technical Page | Ldt |

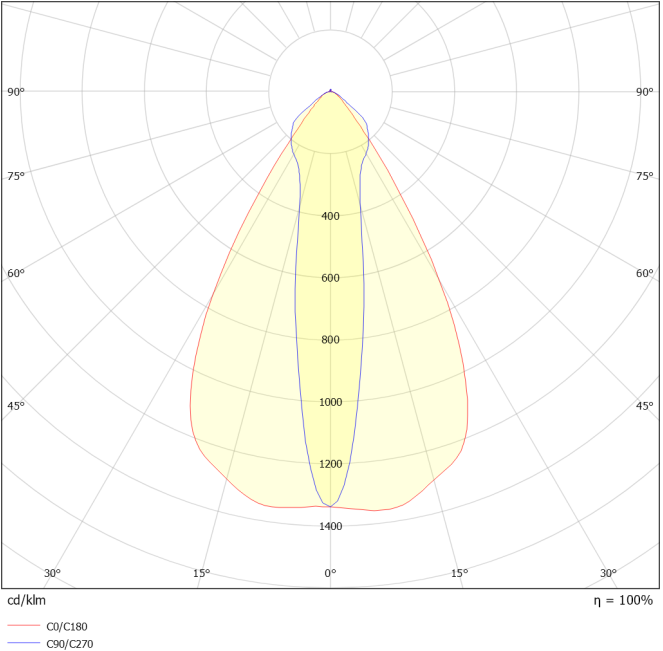

| 07309.06.40.200.ASM | 134 W | 20360 | ASM | 152 Lm/W | 600mm | 3.0 | Technical Page | Ldt |
| 07309.07.40.280.30 | 190 W | 28880 | 30° | 152 Lm/W | 755mm | 3.5 | Technical Page | Ldt |
| 07309.07.40.280.60 | 190 W | 30350 | 60° | 160 Lm/W | 755mm | 3.5 | Technical Page | Ldt |
| 07309.07.40.280.90 | 190 W | 30310 | 90° | 160 Lm/W | 755mm | 3.5 | Technical Page | Ldt |
| 07309.07.40.280.ASM | 190 W | 28850 | ASM | 152 Lm/W | 755mm | 3.5 | Technical Page | Ldt |
| 07309.08.40.320.30 | 210 W | 31920 | 30° | 152 Lm/W | 855mm | 4.0 | Technical Page | Ldt |
| 07309.08.40.320.60 | 210 W | 33840 | 60° | 160 Lm/W | 855mm | 4.0 | Technical Page | Ldt |
| 07309.08.40.320.90 | 210 W | 33660 | 90° | 160 Lm/W | 855mm | 4.0 | Technical Page | Ldt |
| 07309.08.40.320.ASM | 210 W | 32100 | ASM | 152 Lm/W | 855mm | 4.0 | Technical Page | Ldt |
| IP Rating | IP65 |
| IK Rating | IK08 |
Warehouse
Factory
Air Field
Sports Hall
