Indoor Lighting / Downlight LightingSnow-023
BACK
| Housing | Aluminum Injection |
| Diffuser | High Light Transmittance Opal Diffuser |
| Frame | Aluminum İnjection |
| Paint | Electrostatic Powder Paint |
| Optics | Symmetrical |

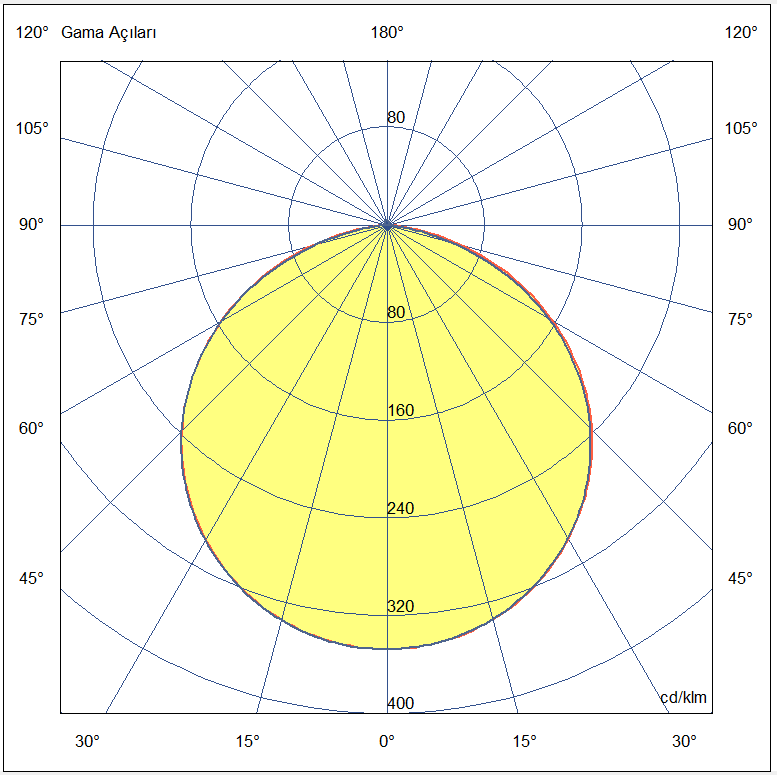

| Light Output Angle | 110° |
| UGR Value | UGR ≤ 22 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
   |

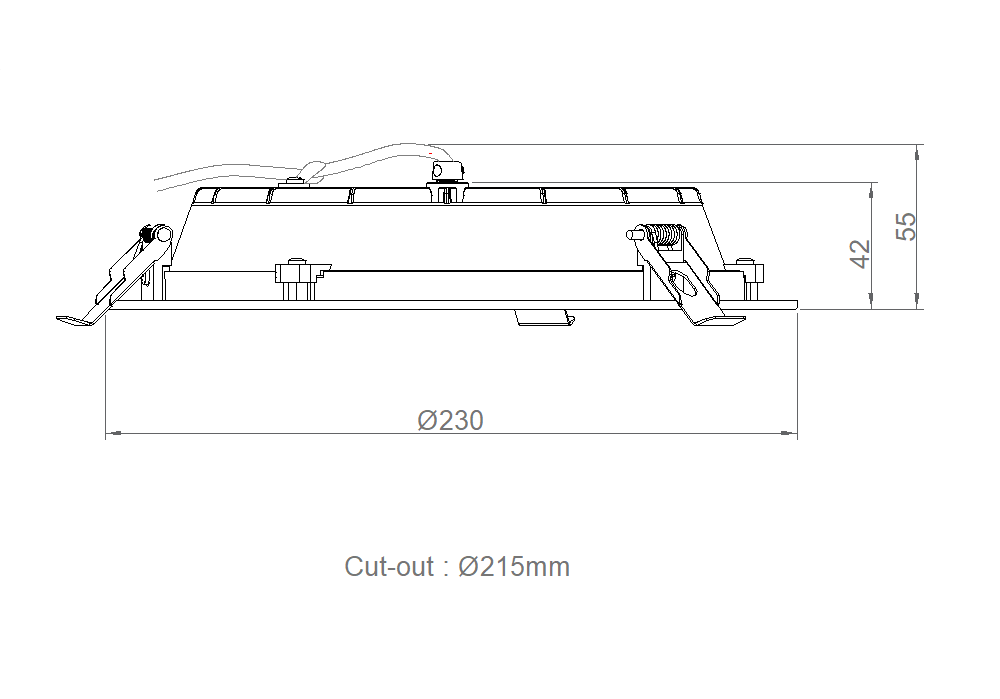

| Order Code | W | Lm | Productivity | CCT | CRI | ØDx(H) | Ceiling Cutting (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|---|---|
| 05393.23.30.028 | 26 | 2930 | 112 lm/W | 3000 | Ra>80 | Ø230x45 | Ø215 | 0,8 | Technical Page | Ldt |
| 05393.23.40.030 | 26 | 3250 | 125 lm/W | 4000 | Ra>80 | Ø230x45 | Ø215 | 0,8 | Technical Page | |
| 05393.23.30.030 | 30 | 3380 | 112 lm/W | 3000 | Ra>80 | Ø230x45 | Ø215 | 0,8 | Technical Page | |
| 05393.23.40.035 | 30 | 3750 | 125 lm/W | 4000 | Ra>80 | Ø230x45 | Ø215 | 0,8 | Technical Page |
| IP Rating | IP54/IP40 |
| IK Rating | IK02 |
Hospital
Business Center
Office
School
Restaurant
