Acoustic Lighting / Lighting UnitsRunning-Lighting Unit
BACK
| Housing | Electrostatic Powder Coated Aluminum Profile |
| Side Cover | PC Injection |

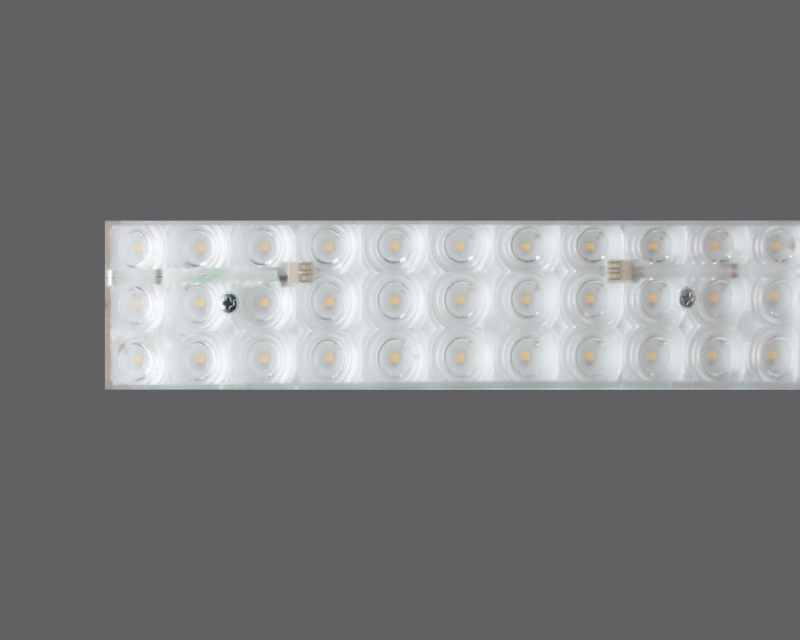

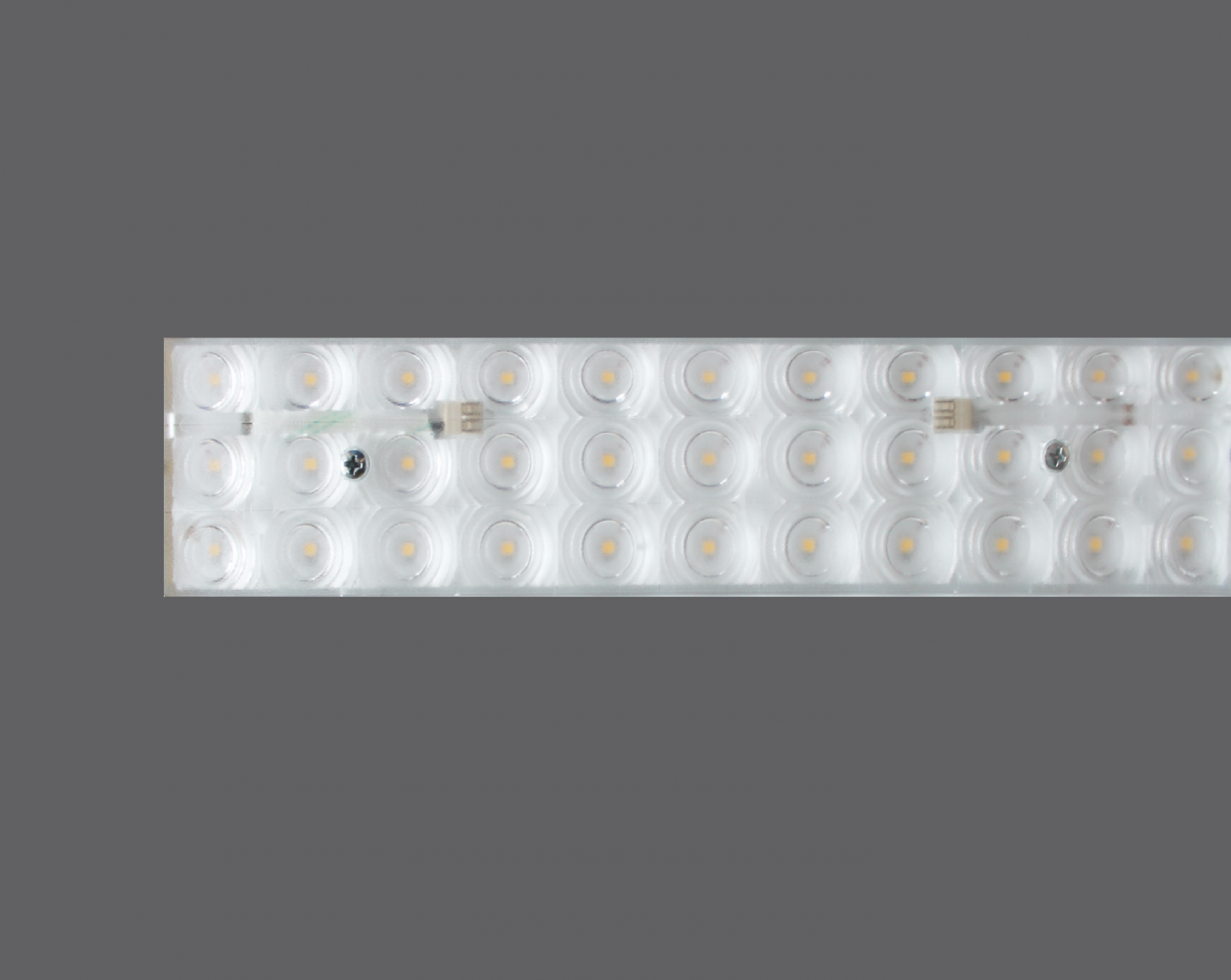

| Diffuser | High Light Transmittance Optical Lens |

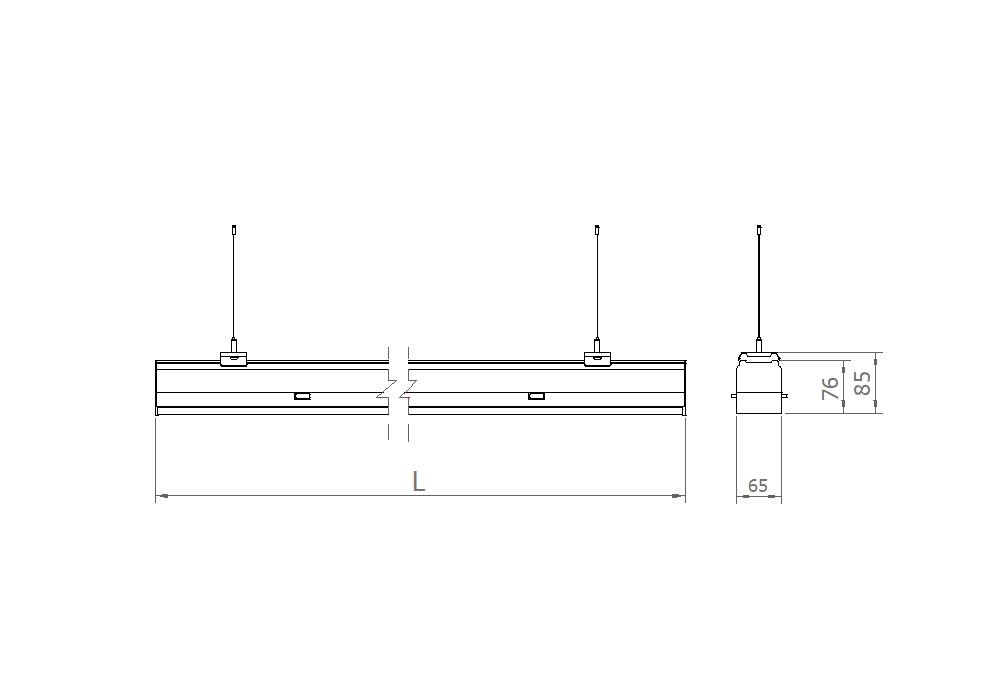

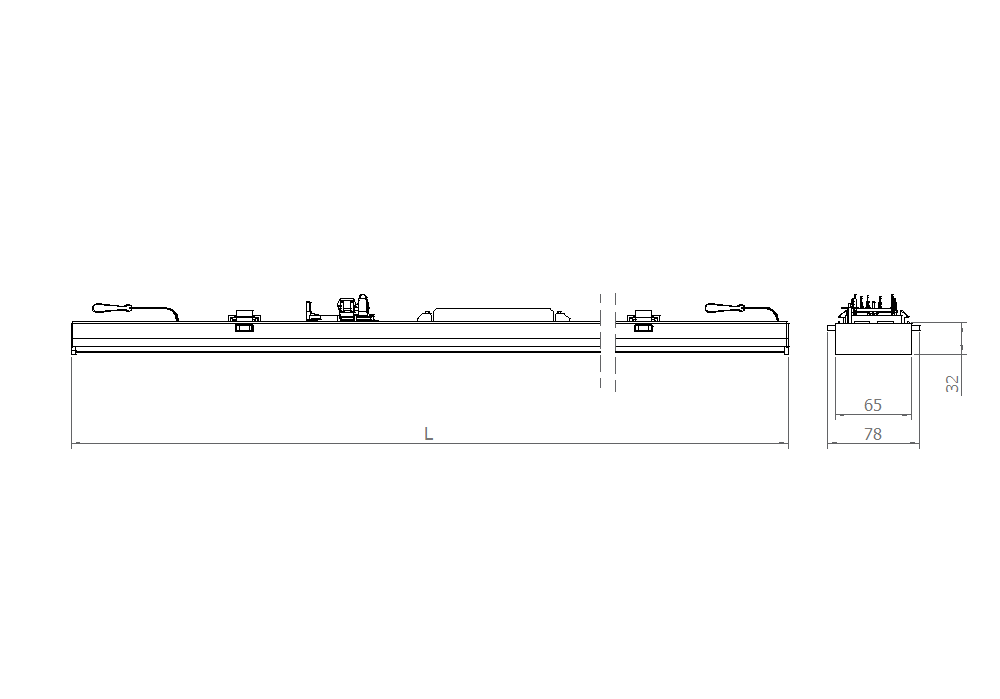

| Dimensions(mm) | 65x38mm |
| Light Distribution | Symmetrical / Asymmetrical |
| Light Output Angle | 30°Sym / 60°Sym / 90°Sym / 2x25°Asym |
| UGR Value | UGR ≤ 22 |
| CRI | CRI ≥ 80 |
| Color Bin Value | Mc Adams ≤ 3 |
| Colour Options |
  |
| Order Code | W | Lm | CCT | Angle | L (mm) | Kg | Technical Page | Photometric File |
|---|---|---|---|---|---|---|---|---|
| 07200.11.40.083/90 | 52 | 8300 | 4000 | 90° | 1144 | 1,2 | Technical Page | |
| 07200.14.40.103/90 | 65 | 10300 | 4000 | 90° | 1430 | 1,5 | Technical Page | |
| 07200.17.40.125/90 | 78 | 12500 | 4000 | 90° | 1715 | 1,8 | Technical Page | |
| 07200.11.40.083/60 | 52 | 8300 | 4000 | 60° | 1144 | 1,2 | Technical Page | |
| 07200.14.40.103/60 | 65 | 10300 | 4000 | 60° | 1430 | 1,5 | Technical Page | |
| 07200.17.40.125/60 | 78 | 12500 | 4000 | 60° | 1715 | 1,8 | Technical Page | |
| 07200.11.40.083/30 | 52 | 8300 | 4000 | 30° | 1144 | 1,2 | Technical Page | |
| 07200.14.40.103/30 | 65 | 10300 | 4000 | 30° | 1430 | 1,5 | Technical Page | |
| 07200.17.40.125/30 | 78 | 12500 | 4000 | 30° | 1715 | 1,8 | Technical Page | |
| 07200.11.40.083/AS2 | 52 | 8300 | 4000 | 2x25° Asym | 1144 | 1,2 | Technical Page | |
| 07200.11.40.083/AS2 | 65 | 10300 | 4000 | 2x25° Asym | 1430 | 1,5 | Technical Page | |
| 07200.17.40.125/AS2 | 78 | 12500 | 40000 | 2x25° Asym | 1715 | 1,8 | Technical Page |
| IP Rating | IP40 |
| IK Rating | IK08 |
